Power Tilt and Power Telescopic: Notes

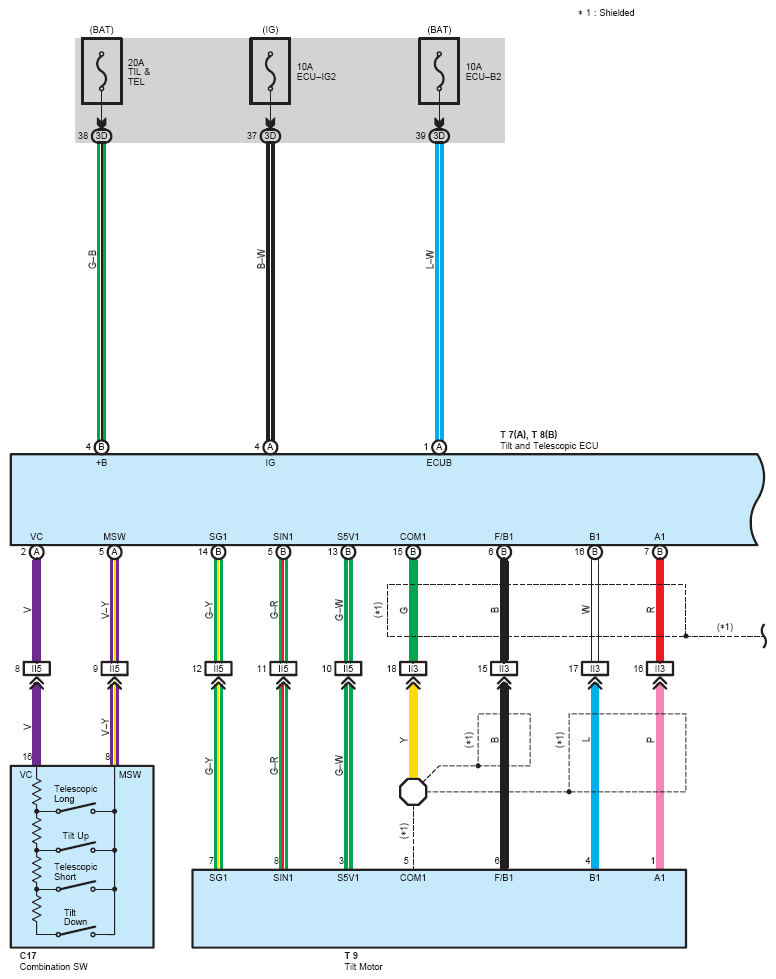

Fig 1: Power Tilt And Power Telescopic System Wiring Diagram (1 Of 2)
G08794031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

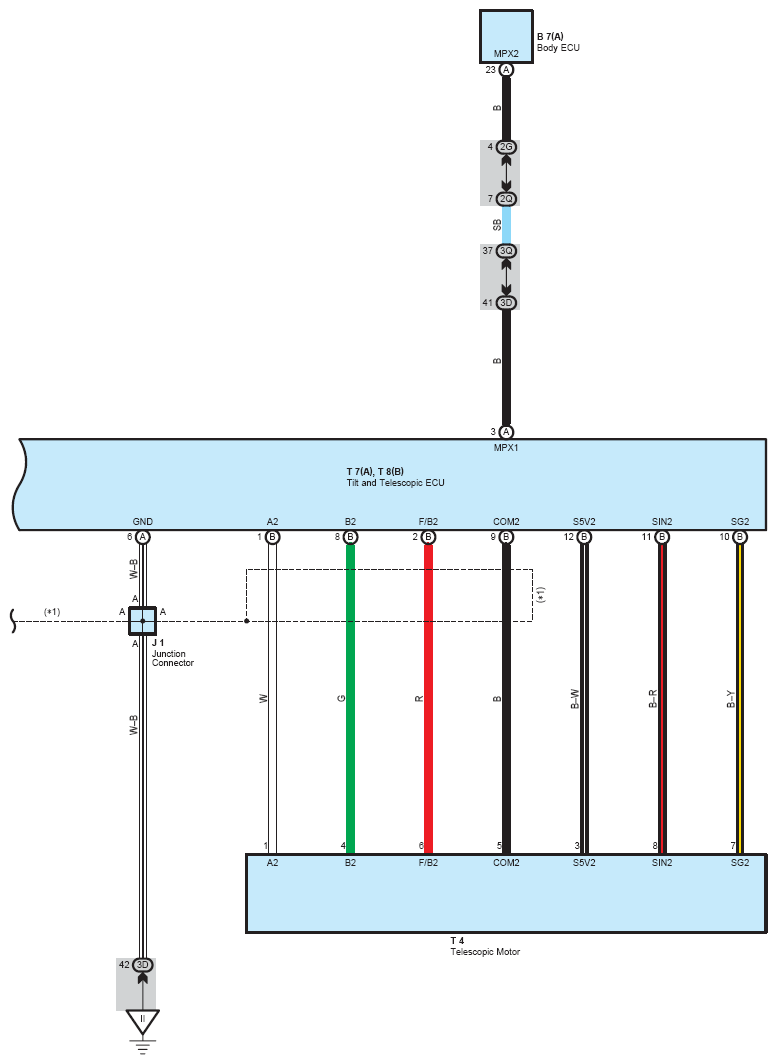

Fig 2: Power Tilt And Power Telescopic System Wiring Diagram (2 Of 2)
G08794032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
