Multiplex Communication System - BEAN Bus

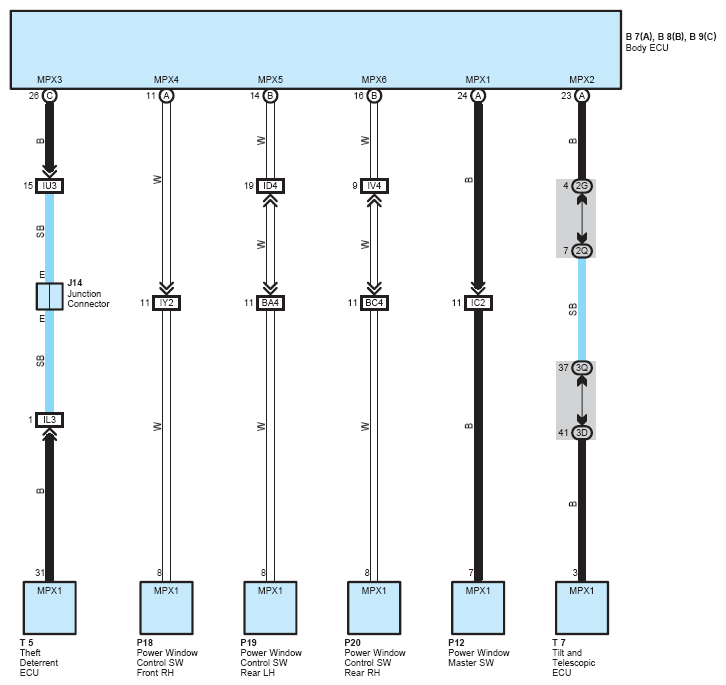

Fig 1: Multiplex Communication System (BEAN Bus) Wiring Diagram (1 Of 2)
G08793956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

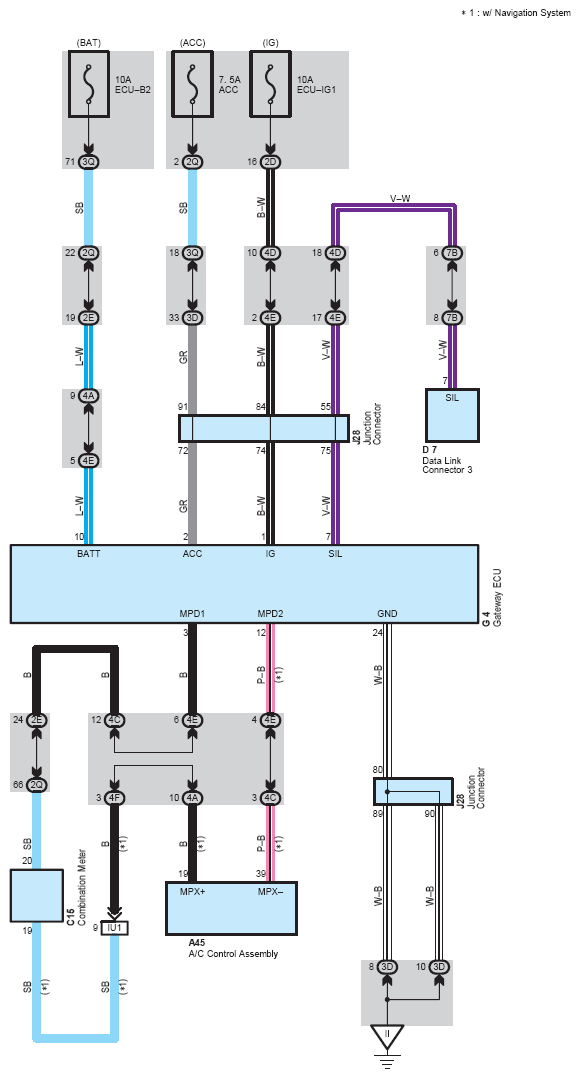

Fig 2: Multiplex Communication System (BEAN Bus) Wiring Diagram (2 Of 2)
G08793957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex Communication System Includes Following Systems

* Automatic Light Control

* Door Lock Control

* Front Fog Light

* Headlight

* Interior Light

* Key Reminder

* Light Auto Turn Off System

* Power Window

* Theft Deterrent

* Wireless Door Lock Control
