Power Source Circuit: Wiring Diagram

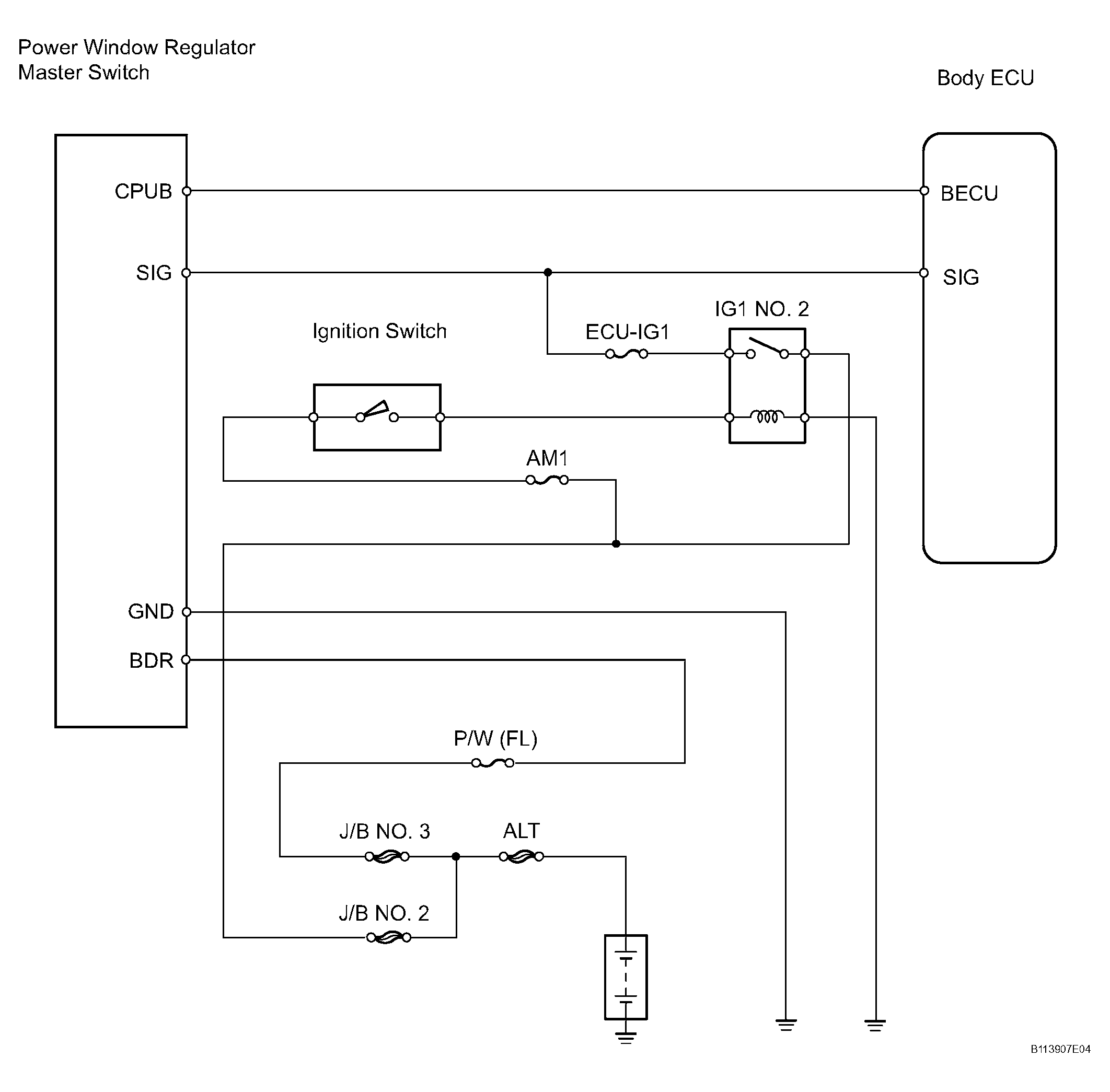

Fig 1: Power Source Circuit Wiring Diagram

G04438576

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
