Parts Location

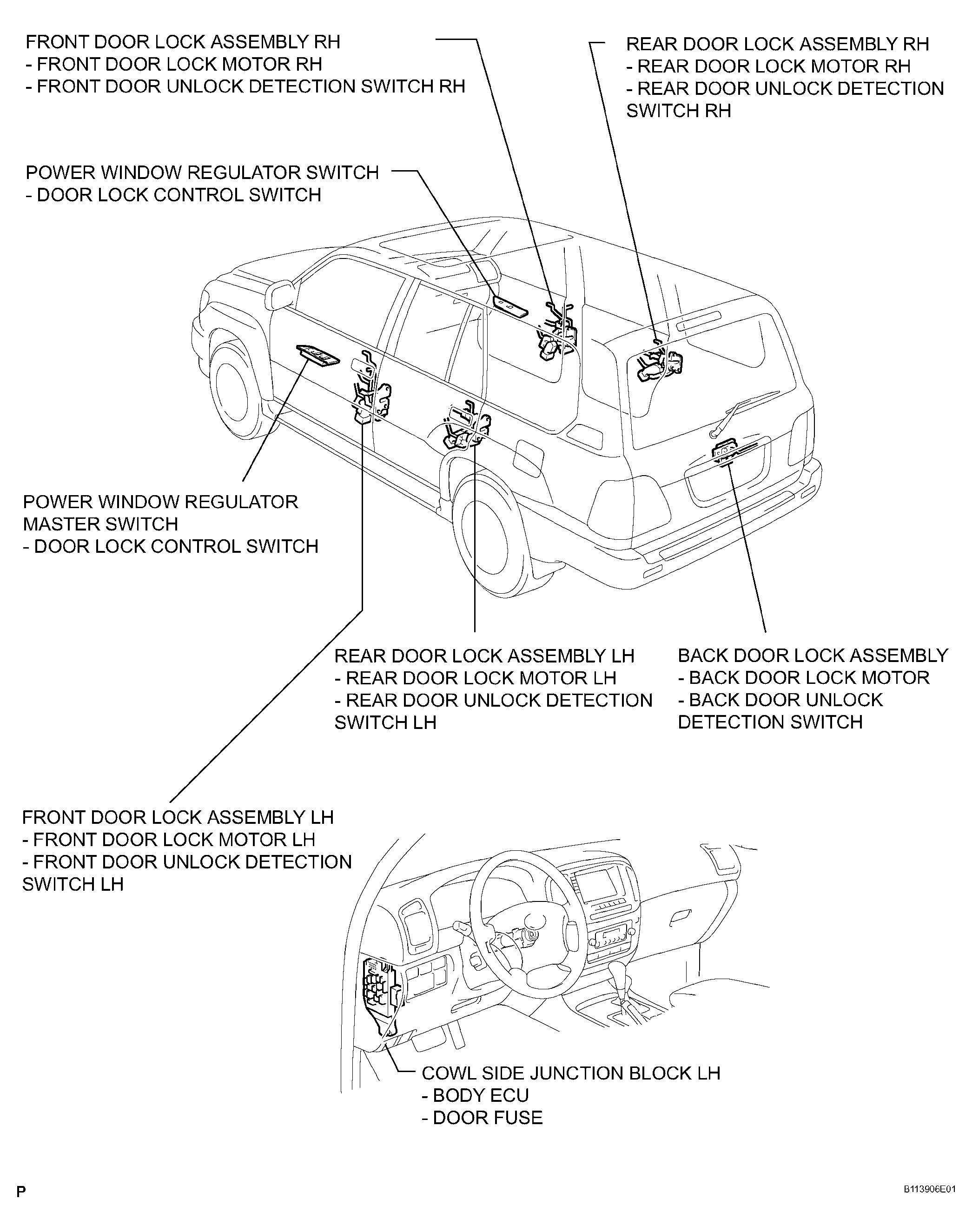

Fig 1: Locating Door Lock Parts

G04438565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
