Door Lock Control Switch Circuit: Wiring Diagram

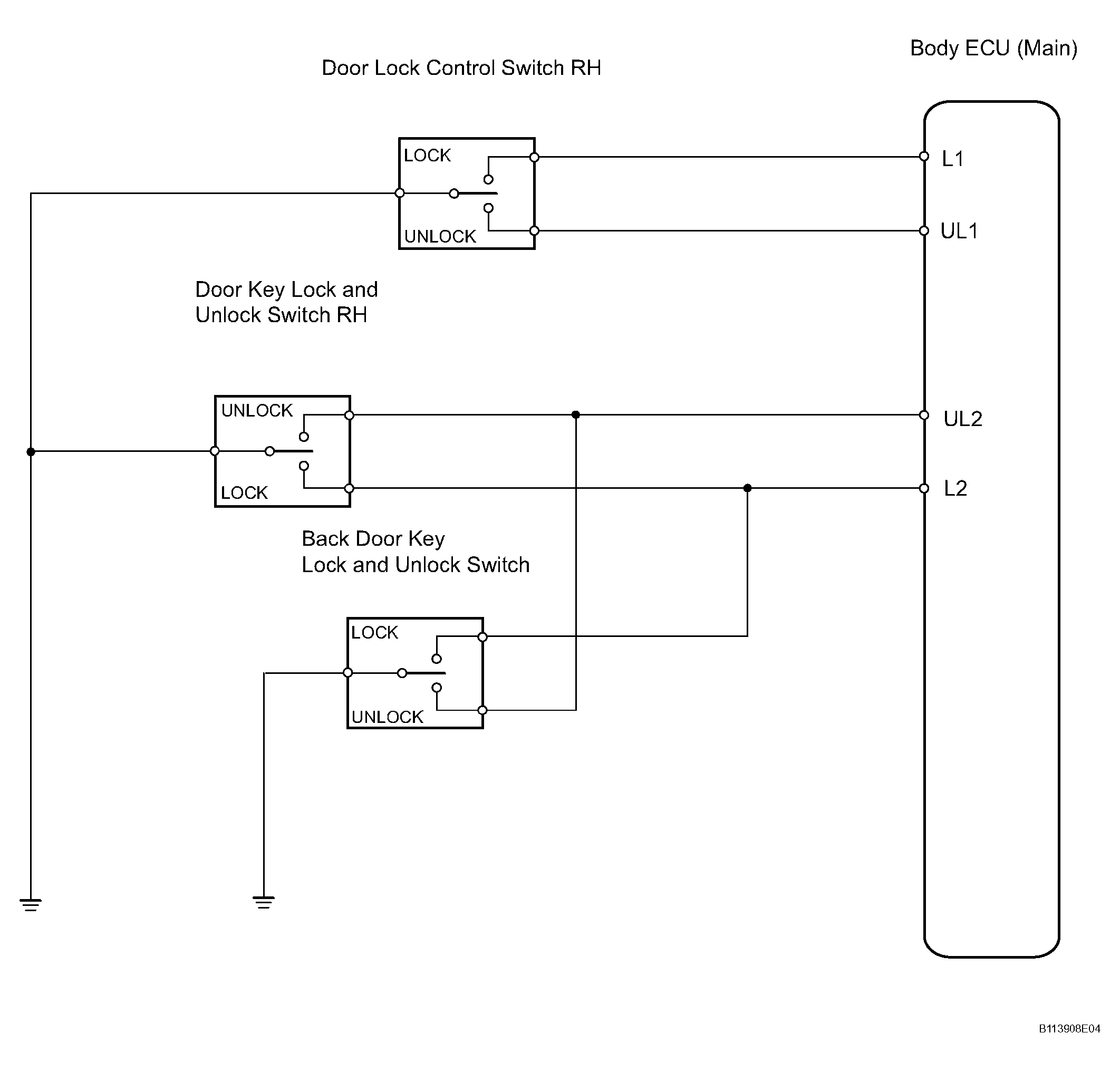

Fig 1: Door Lock Control Switch Circuit Wiring Diagram
G04438574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
