Door Key Lock/Unlock Switch Circuit: Wiring Diagram

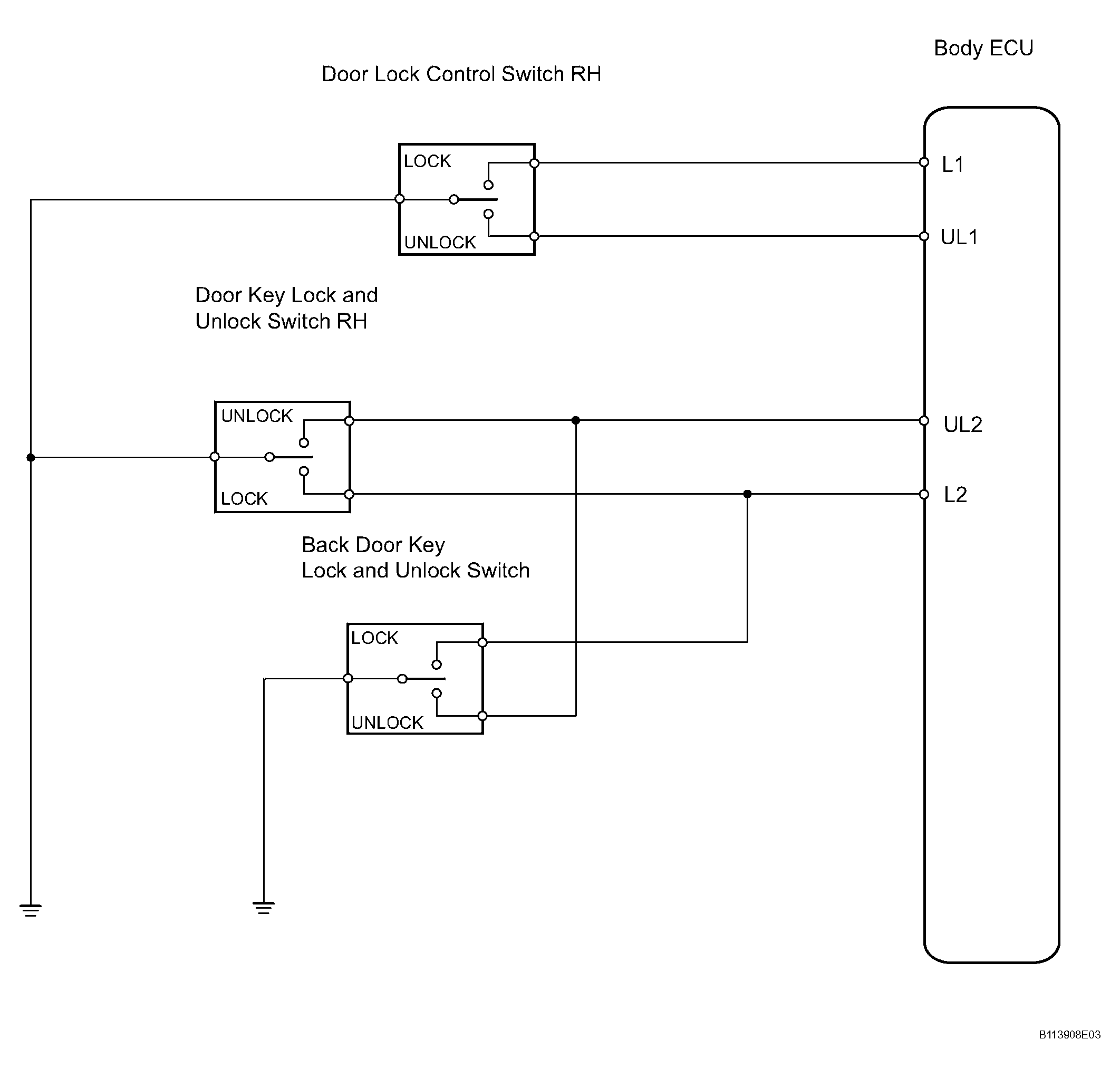

Fig 1: Door Key Lock/Unlock Switch Circuit Wiring Diagram

G04438575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
