ECM Power Source Circuit: Wiring Diagram

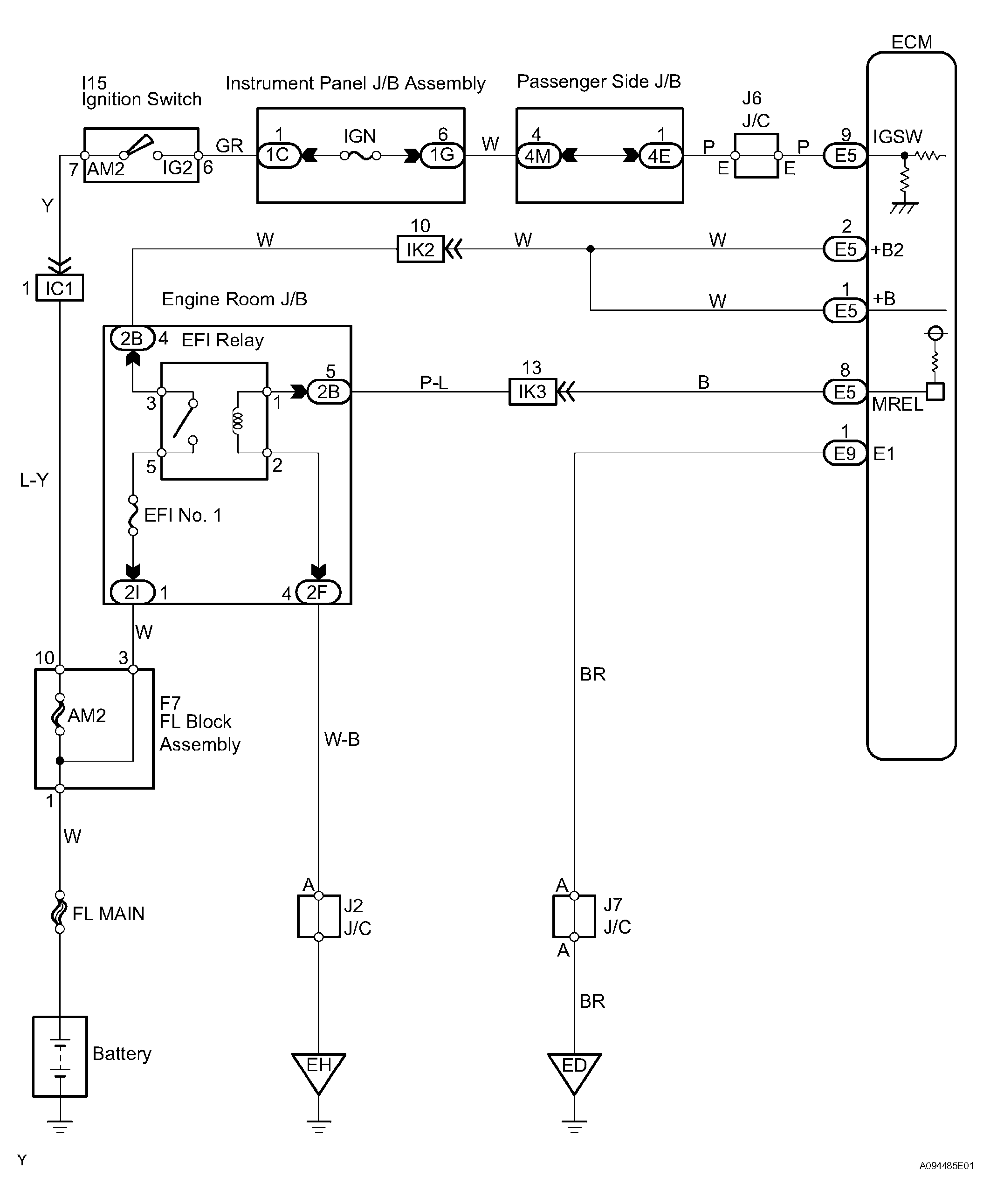

Fig 1: Instrument Panel J/B Assembly - Wiring Diagram

G04427353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
