VVT Sensor: Components

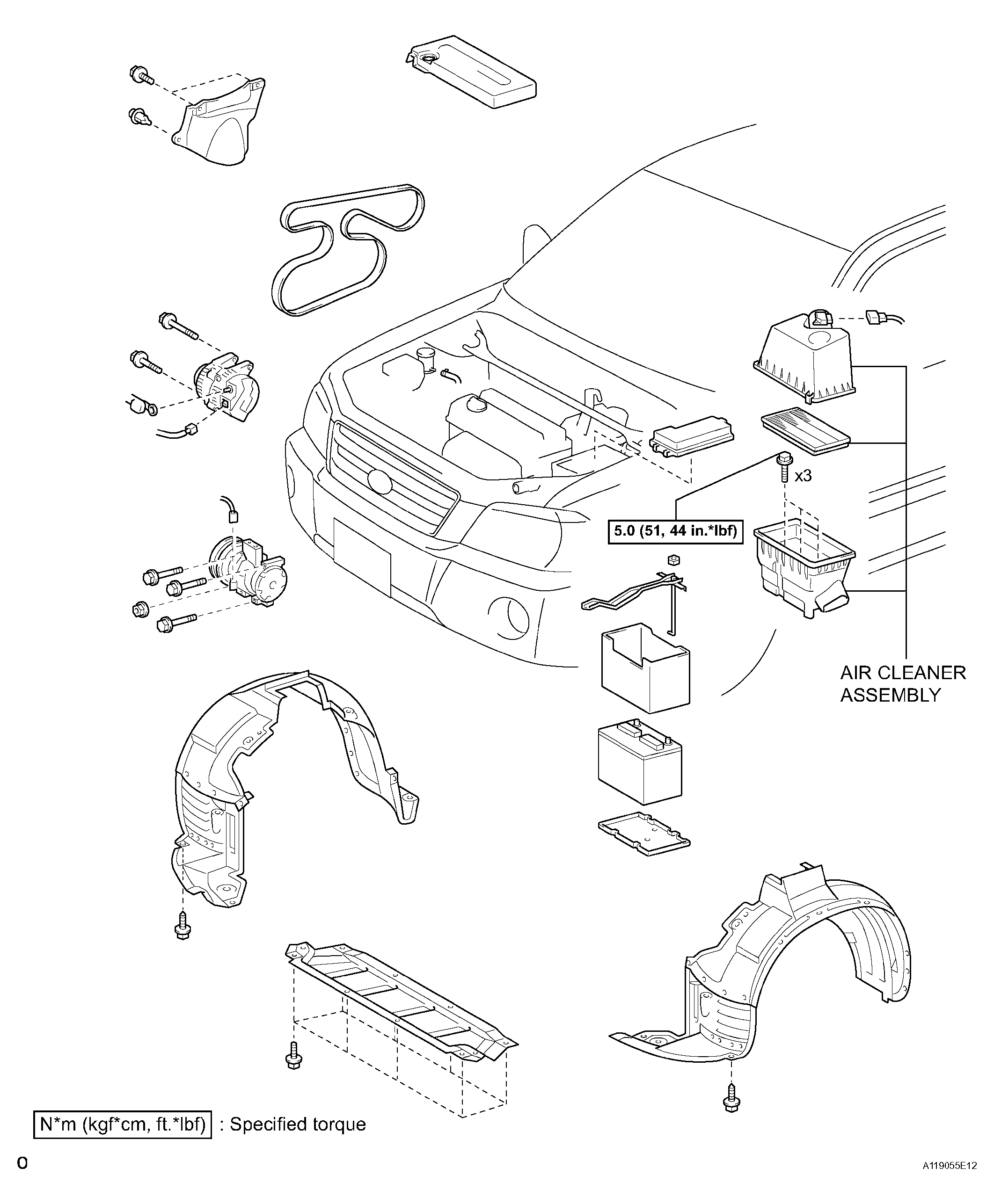

Fig 1: VVT Sensor Replacement Components & Torque Specification (1 Of 2)
G04424222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

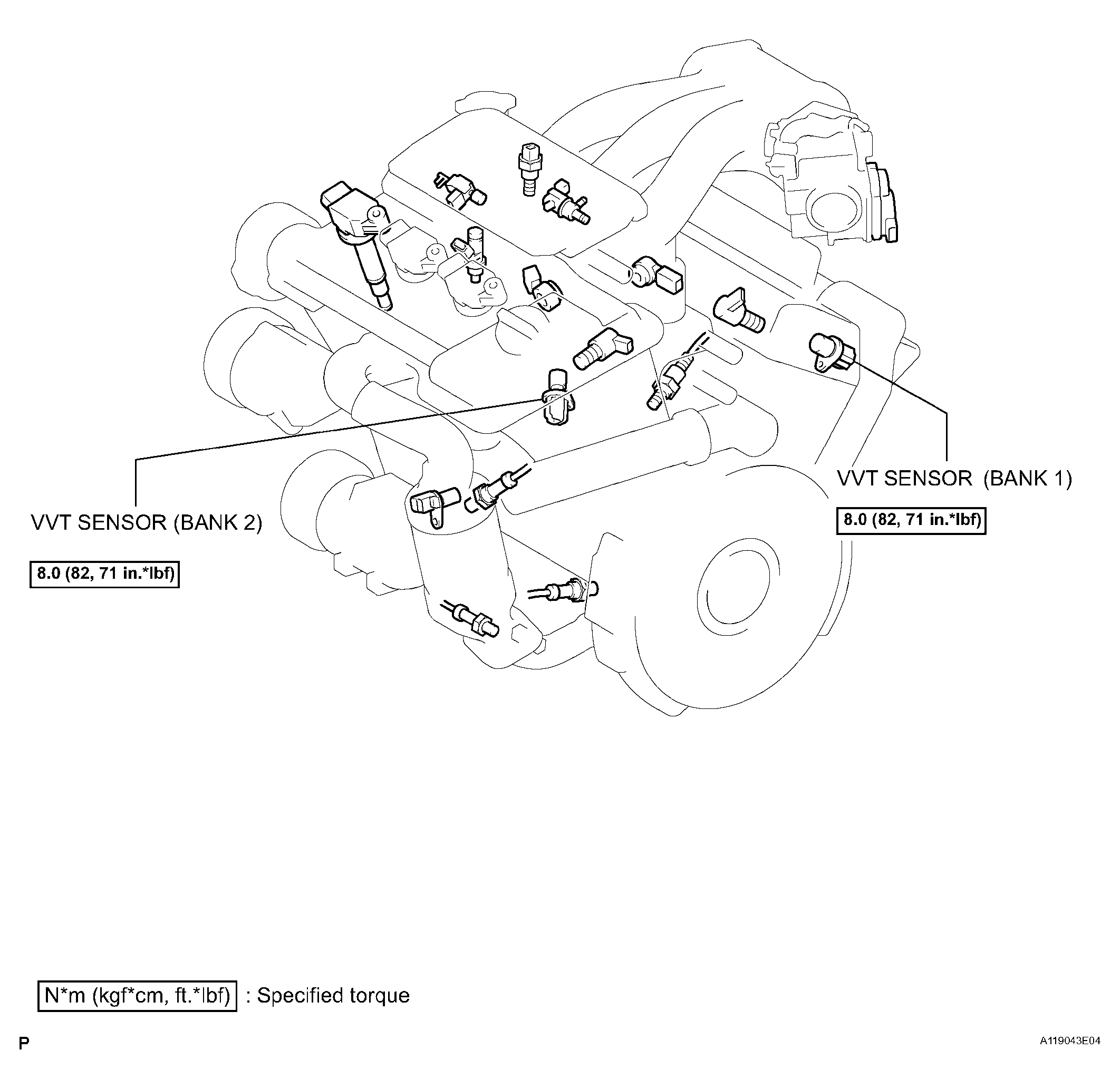

Fig 2: VVT Sensor Replacement Components & Torque Specification (2 Of 2)
G04424223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
