Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.

      Vehicle Identification Number

      Certification Label

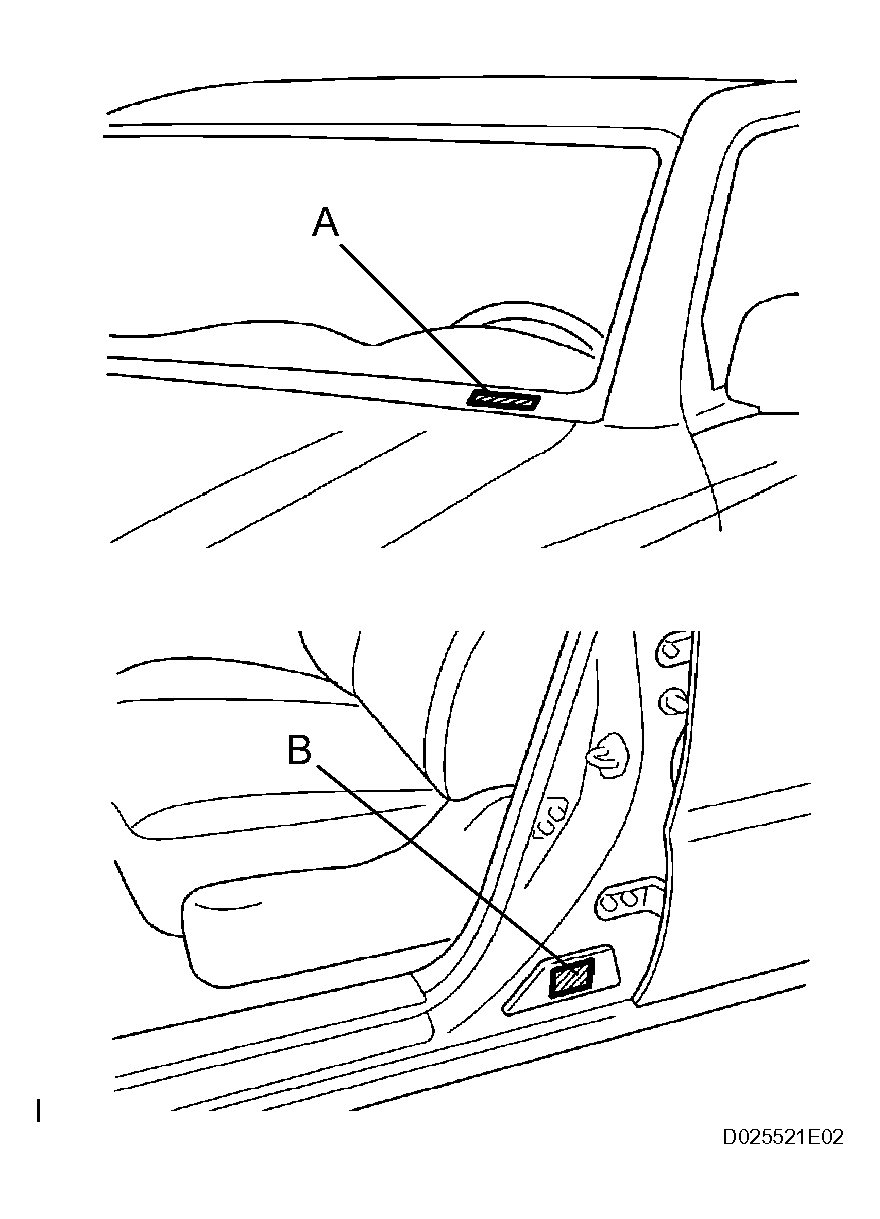

      Fig 1: Identifying Vehicle Identification Number
      G04422972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.

      A: 3MZ-FE

      B: 2AZ-FE

      C: U140E, U151E, U151F, U241E

      Fig 2: Identifying Engine Serial Number And Transaxle Serial Number
      G04422973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
