Throttle Body: Installation

INSTALL THROTTLE BODY ASSEMBLY
1. Install a new gasket to the intake air connector.
2. install the throttle body with the 2 bolts and 2 nuts.
  Torque: 11 N.m (112 kgf.cm, 8 ft.lbf)

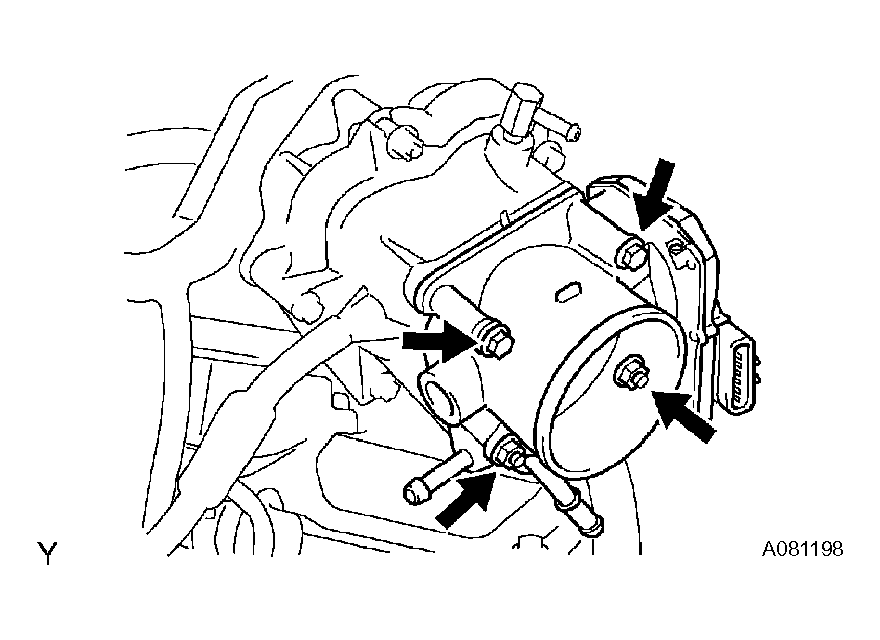

  Fig 1: Installing Throttle Body With Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the water bypass hose No. 3.
4. Connect the water bypass hose No. 2.
5. Connect the throttle control motor & throttle position sensor connector.
INSTALL INTAKE AIR RESONATOR
INSTALL AIR CLEANER ASSEMBLY
1. Install the air cleaner assembly (See INSPECTION ).
INSTALL AIR CLEANER INLET ASSEMBLY
1. Install the air cleaner inlet assembly (See INSPECTION ).

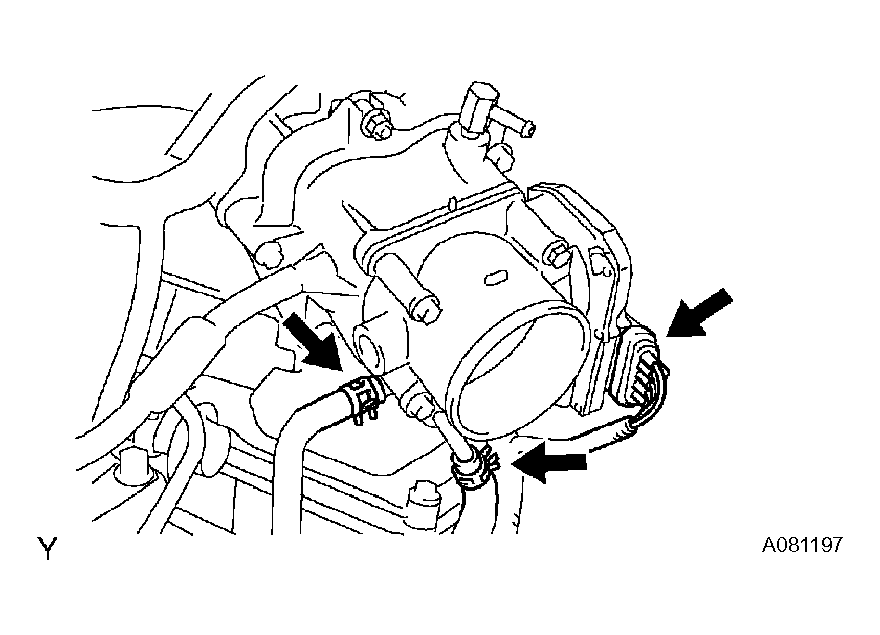

  Fig 2: Connecting Water By-Pass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK CONNECTION OF VACUUM HOSE
1. Check the connection of vacuum hose (See INSPECTION ).
ADD ENGINE COOLANT (See ON-VEHICLE INSPECTION )
CHECK ENGINE COOLANT LEAKAGE (See ON-VEHICLE INSPECTION )
INSTALL V-BANK COVER SUB-ASSEMBLY
1. Fit the 2 retainers and install the V-bank cover.
2. Using a socket hexagon wrench 5, tighten the 3 nuts.
  Torque: 7.9 N.m (81 kgf.cm, 70 in.lbf)
INSTALL FRONT SUSPENSION BRACE SUBASSEMBLY UPPER CENTER
1. Install the upper brace with the 2 nuts.
  Torque: 80 N.m (815 kgf.cm, 59 ft.lbf)

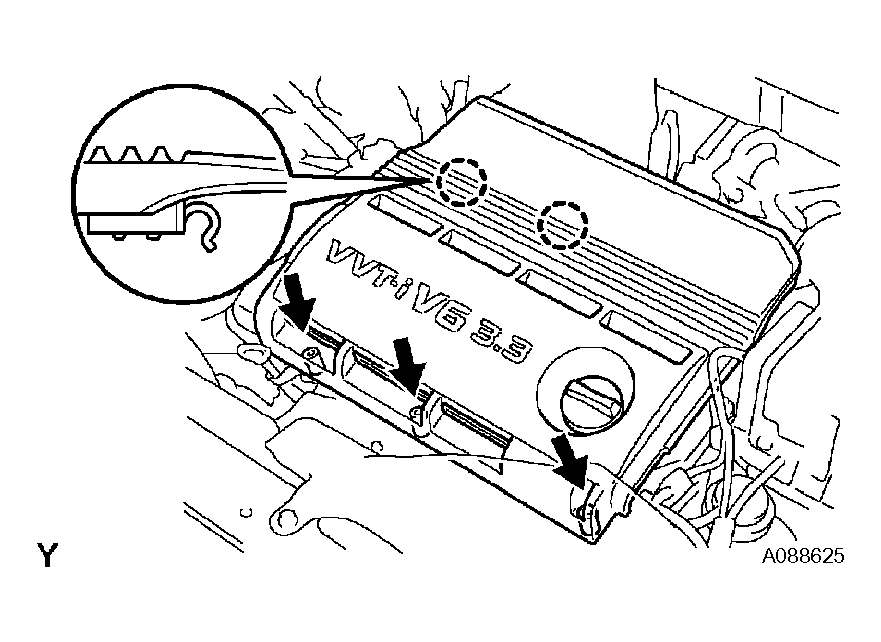

  Fig 3: Installing V-Bank Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
