Active Control Engine Mount System: Location

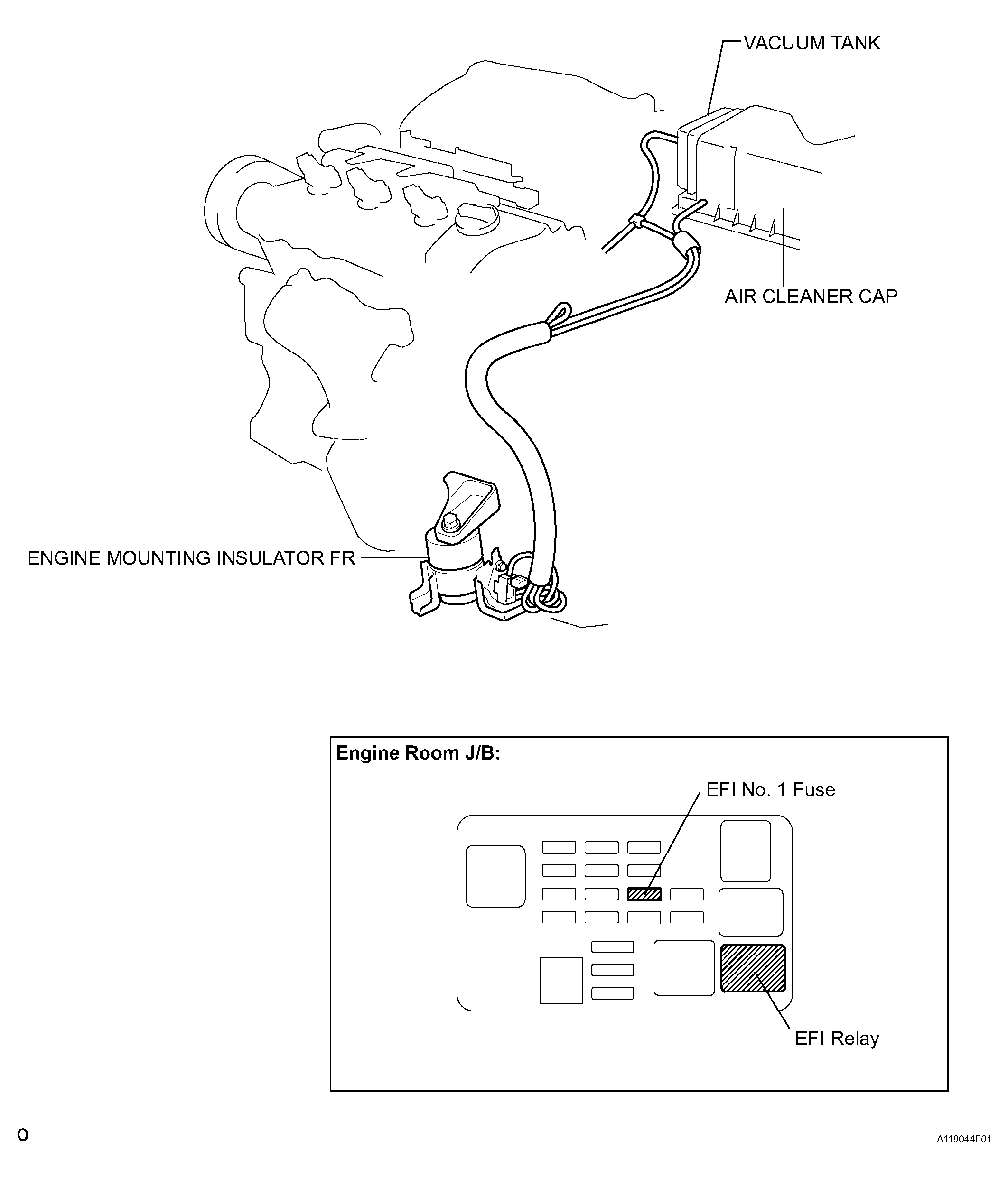

Fig 1: Identifying Active Control Engine Mount System Components Location

G04427297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
