Engine Control System (3MZ-FE) (Except Hybrid): ECM: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FRONT DOOR SCUFF PLATE RH
REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2 (See REMOVAL )
REMOVE ECM
1. Remove the 2 wire harness clamps.
2. Disconnect the 5 ECM connectors.
3. Remove the 2 nuts and ECM.

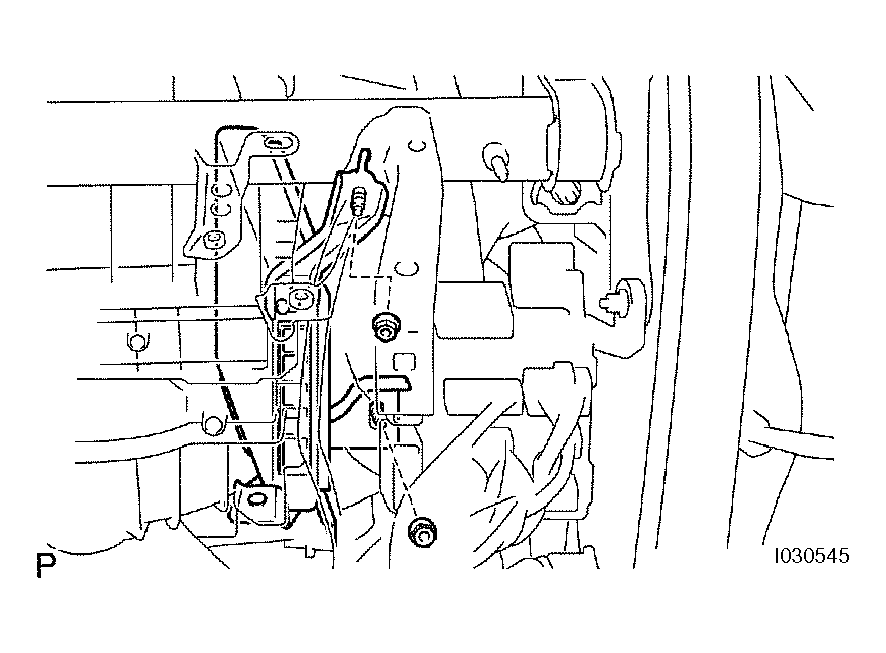

  Fig 1: Removing Nuts And ECM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO.1
1. Remove the 2 screws and ECM bracket.

  Fig 2: Removing Screws And ECM Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO.2
1. Remove the 2 screws and ECM bracket.

  Fig 3: Removing Screws And ECM Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
