Engine Control System (3MZ-FE) (Except Hybrid): ECM: Installation

  1. INSTALL ECM BRACKET NO.2
    1. Install the ECM bracket with the 2 screws.
      Fig 1: Installing ECM Bracket With Screws
      G04427435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ECM BRACKET NO.1
    1. Install the ECM bracket with the 2 screws.
      Fig 2: Installing ECM Bracket With Screws
      G04427436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ECM
    1. Install the 2 wire harness clamps.
    2. Connect the 5 ECM connectors.
    3. Install the ECM with the 2 nuts.

      Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

  4. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO.2
  5. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
  6. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

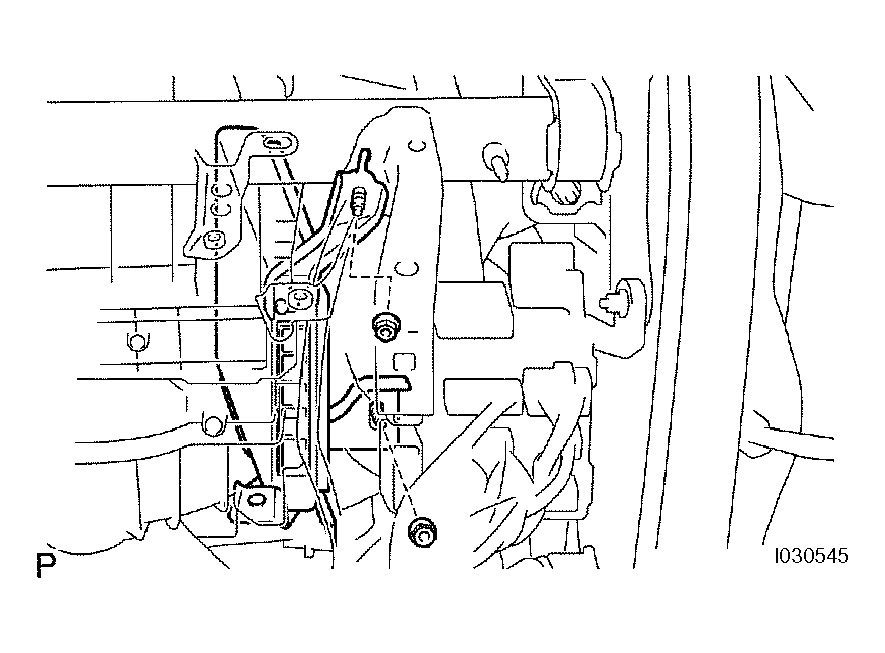

    Fig 3: Installing ECM With Nuts
    G04427437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT DOOR SCUFF PLATE RH
  8. CONNECT BATTERY NEGATIVE TERMINAL
