Crankshaft Position Sensor: Installation

INSTALL CRANKSHAFT POSITION SENSOR
1. Install the sensor with the bolt.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Connect the sensor connector.

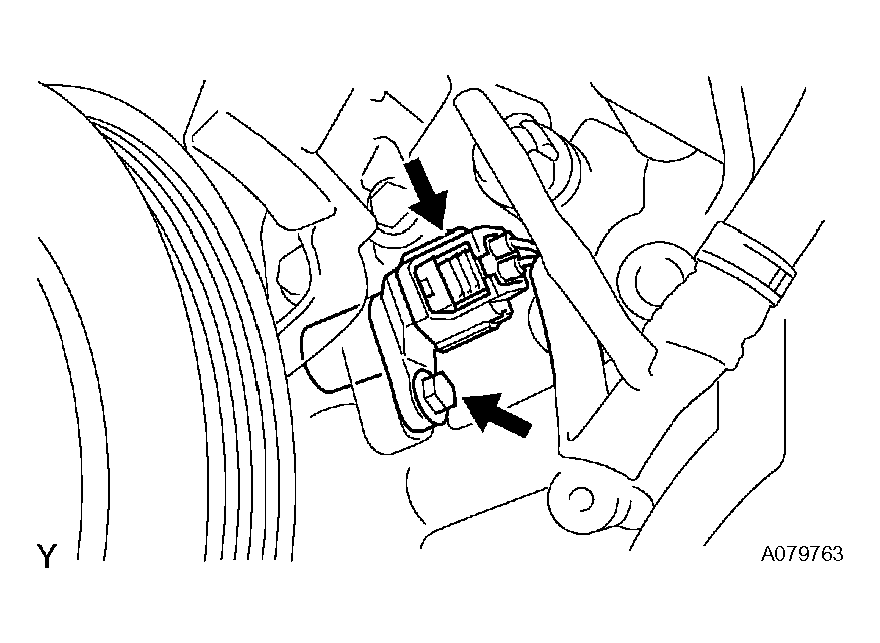

  Fig 1: Installing Sensor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER APRON SEAL RH
1. Install the clip, 2 bolts and apron seal.

  Fig 2: Installing Clip, Bolts And Apron Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER NO.1
1. Install the 6 screws, 2 clips and under cover.

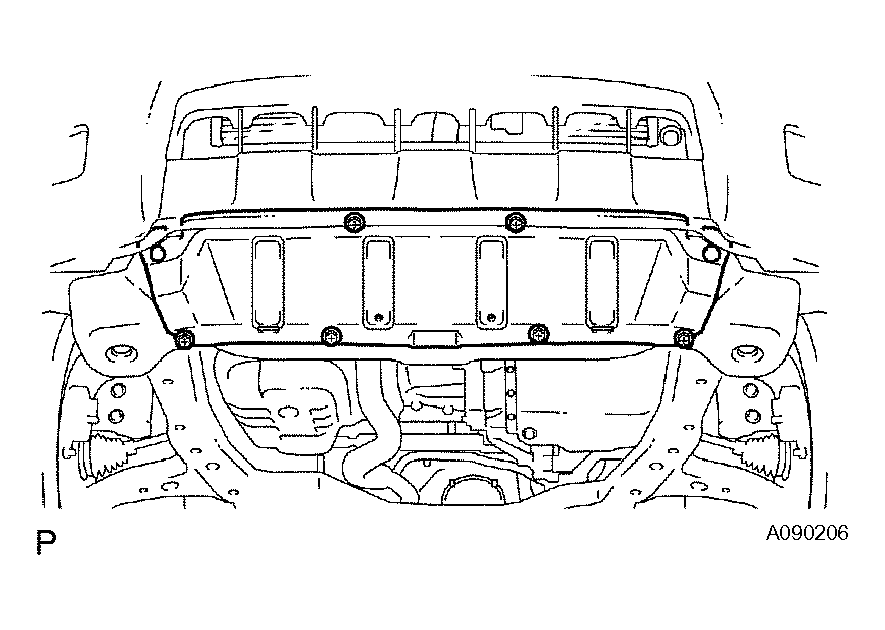

  Fig 3: Installing Screws, Clips And Under Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
