Accelerator Pedal Rod: Removal

  1. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts and pedal rod.

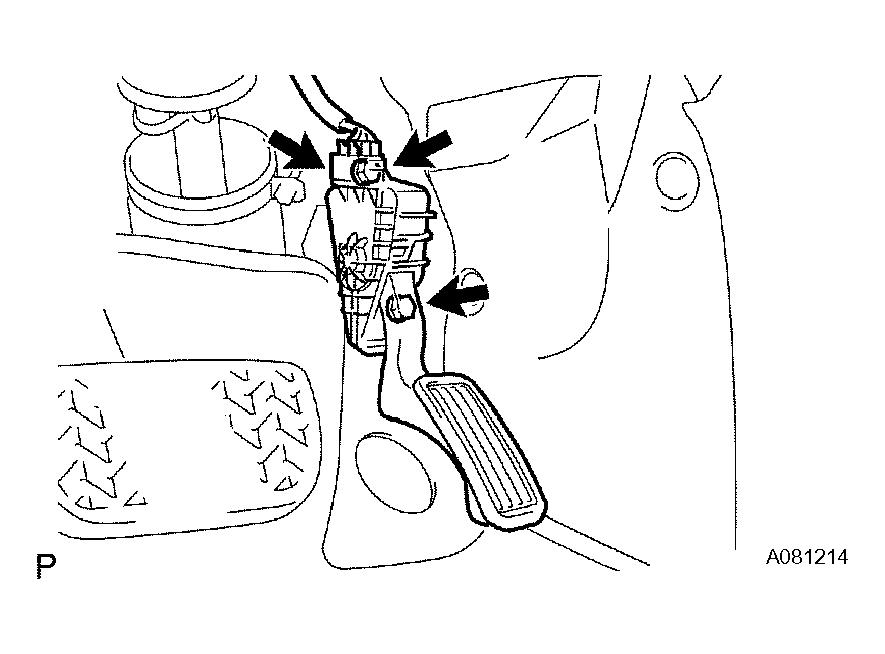

      Fig 1: Removing Bolts And Pedal Rod
      G04427439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
