Accelerator Pedal Rod: Installation

  1. INSTALL ACCELERATOR PEDAL ROD ASSEMBLY
    1. Install the pedal rod with the 2 bolts.

      Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

    2. Connect the accelerator pedal position sensor connector.

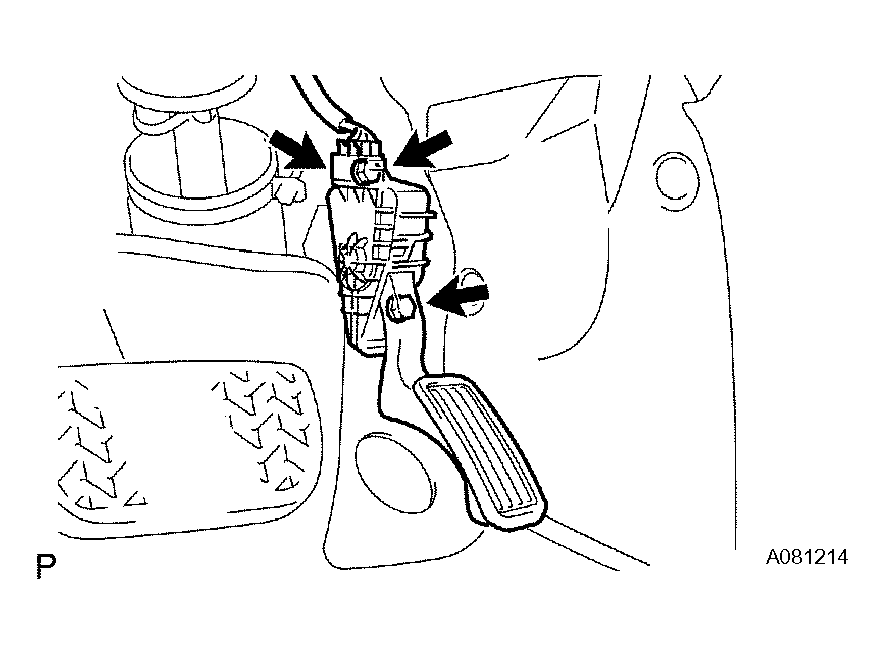

      Fig 1: Installing Pedal Rod With Bolts
      G04427440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
