Propeller Shaft Assembly: Components

WARNING: This page is about a different car, the 2006 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

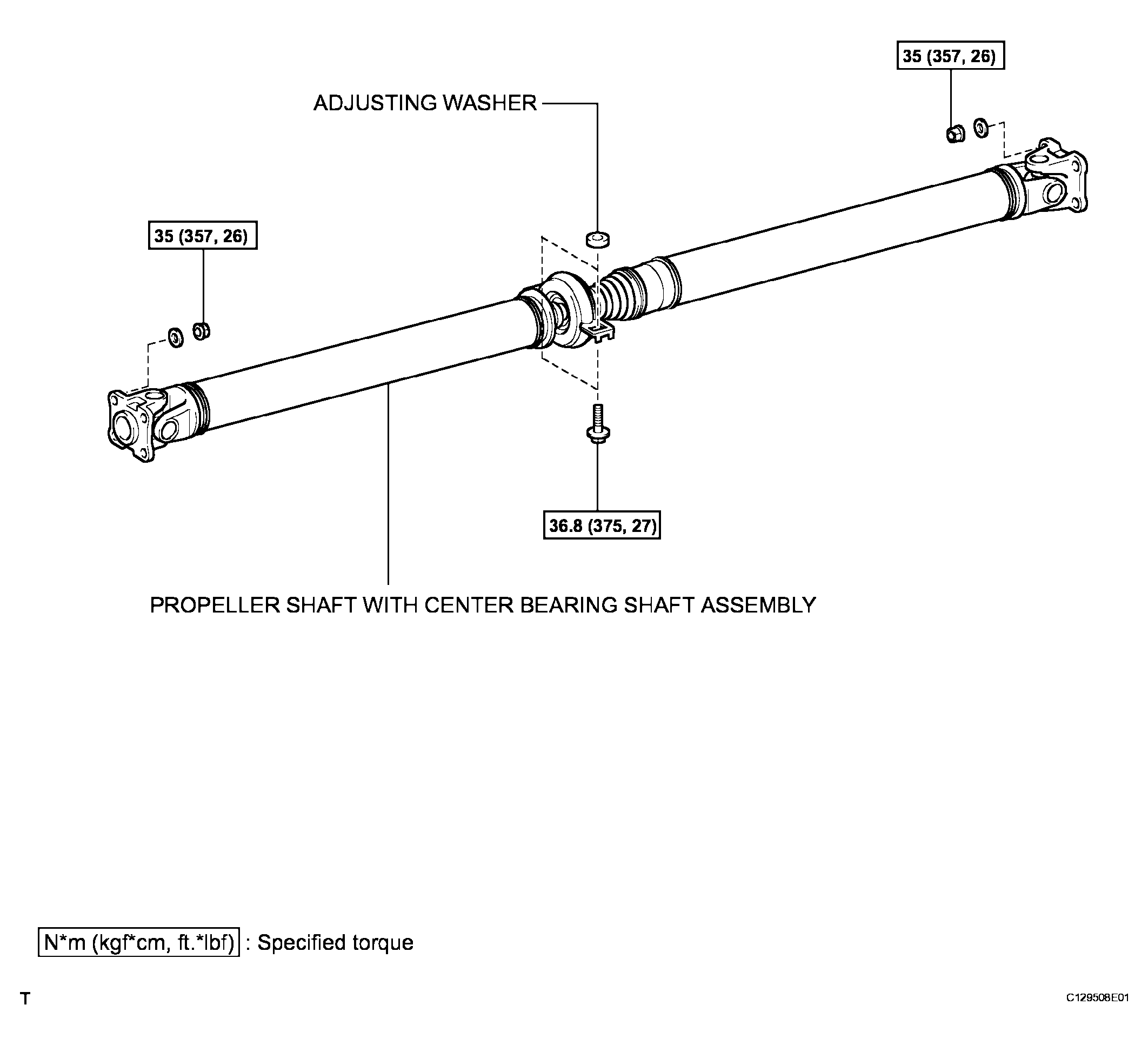

Fig 1: Propeller Shaft Assembly Replacement Components & Torque Specification
G04587463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
