Terminals Of Ecu
WARNING: This page is about a different variant/trim than selected.

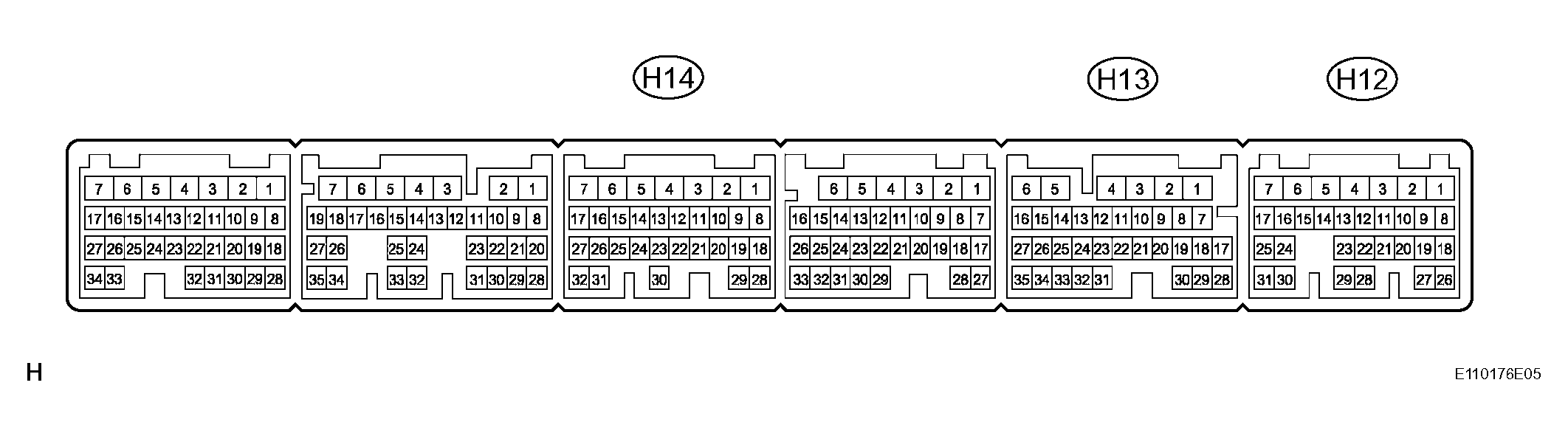

- CHECK HYBRID VEHICLE CONTROL ECU TERMINAL DESCRIPTION SPECIFIED CONDITION CHART
Symbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition TC - E1 (H12-3 - H14-5) O - W-B Ground Ignition switch: ON 10 to 14 V TC - E1 (H12-3 - H14-5) O - W-B Ground Ignition switch: ON,
Connect terminals TC and CG of DLC32 V or less SPDI- - E1 (H12-24 - H14-5) SB - W-B Vehicle speed signal Engine start --> Car stoppage Below 1.5 V --> 4.7 to 16 V SPDI- - E1 (H12-24 - H14-5) SB - W-B Vehicle speed signal during pedal released (Pulse generated) 3 to 7 V ST1- - E1 (H12-25 - H14-5) LG - W-B Stop light signal Ignition switch: ON,
Depress brake pedal1 V or less ST1- - E1 (H12-25 - H14-5) LG - W-B Stop light signal Ignition switch: ON,
Release brake pedal10 to 14 V STP - E1 (H12-31 - H14-5) B - W-B Stop light signal Ignition switch: ON,
Depress brake pedal10 to 14 V STP - E1 (H12-31 - H14-5) B - W-B Stop light signal Ignition switch: ON,
Release brake pedal1 V or less CCS - E1 (H12-26 - H14-5) LG - W-B Cruise control main switch circuit Ignition switch: ON 10 to 14 V CCS - E1 (H12-26 - H14-5) LG - W-B Cruise control main switch circuit Ignition switch: ON,
CANCEL switch: hold ON6.6 to 10.1 V CCS - E1 (H12-26 - H14-5) LG - W-B Cruise control main switch circuit Ignition switch: ON, -/SET switch: hold ON 4.5 to 7.1 V CCS - E1 (H12-26 - H14-5) LG - W-B Cruise control main switch circuit Ignition switch: ON, +/RES switch: hold ON 2.3 to 4 V CCS - E1 (H12-26 - H14-5) LG - W-B Cruise control main switch circuit Ignition switch: ON, MAIN switch: hold ON 1 V or less
