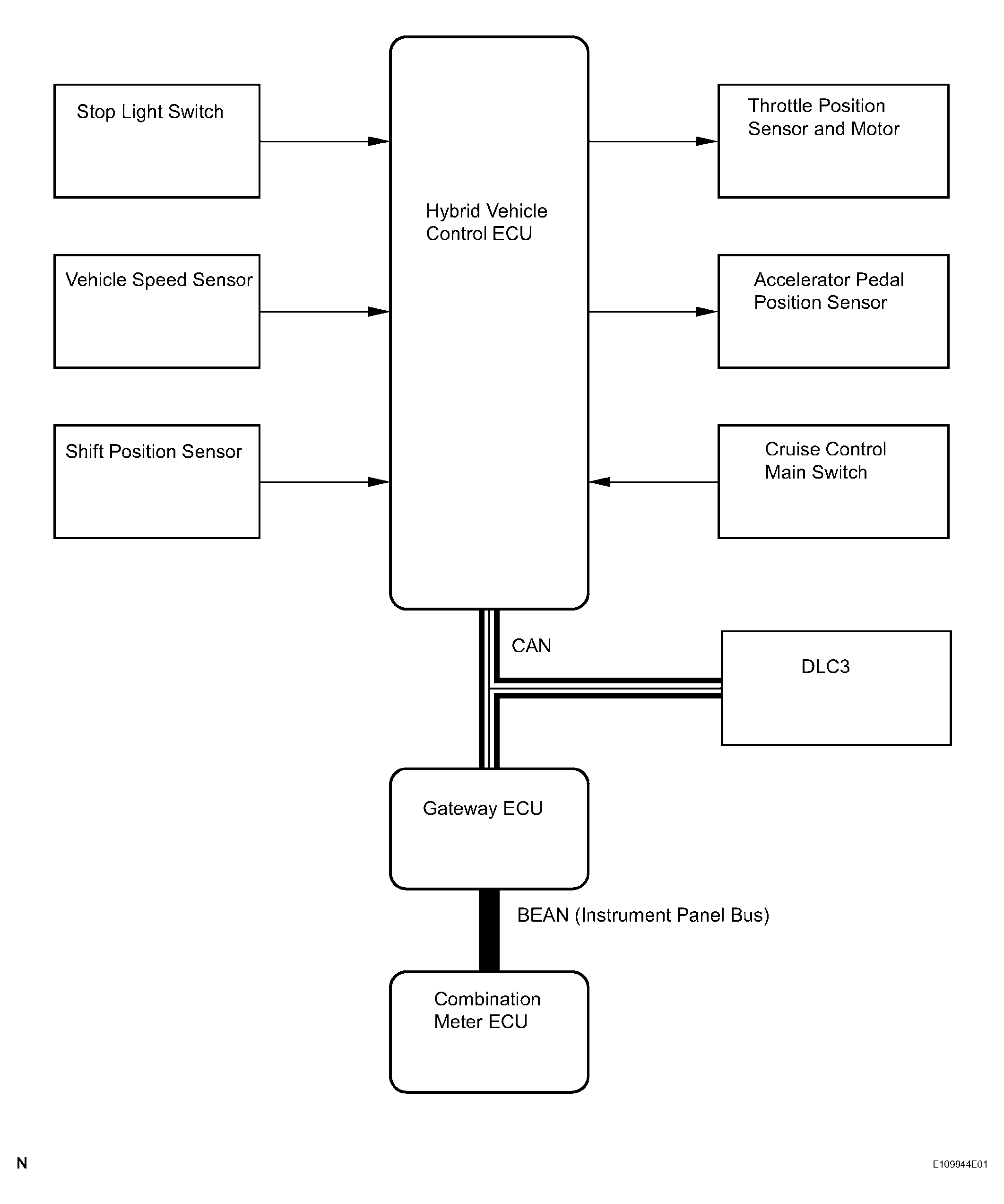

System Diagram
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table:
COMMUNICATION REFERENCE
| Sender |
Receiver |
Signal |
Line |
| Hybrid Vehicle Control ECU |
Combination Meter ECU |
CRUISE indicator operation signal |
CAN
BEAN
(Instrument Panel Bus) |
