Cruise Control Main Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working (See AIRBAG SYSTEM ).
  2. REMOVE STEERING WHEEL NO.3 COVER LOWER (See step 3 in  REMOVAL  )
  3. REMOVE STEERING WHEEL NO.2 COVER LOWER (See step 4 in  REMOVAL  )
  4. REMOVE STEERING PAD (See  REMOVAL  )
  5. REMOVE CRUISE CONTROL MAIN SWITCH
    1. Disconnect the connector.
    2. Remove the 2 screws.
      Fig 1: Disconnecting Connector
      G04439962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the cruise control main switch in the arrow direction to remove it.

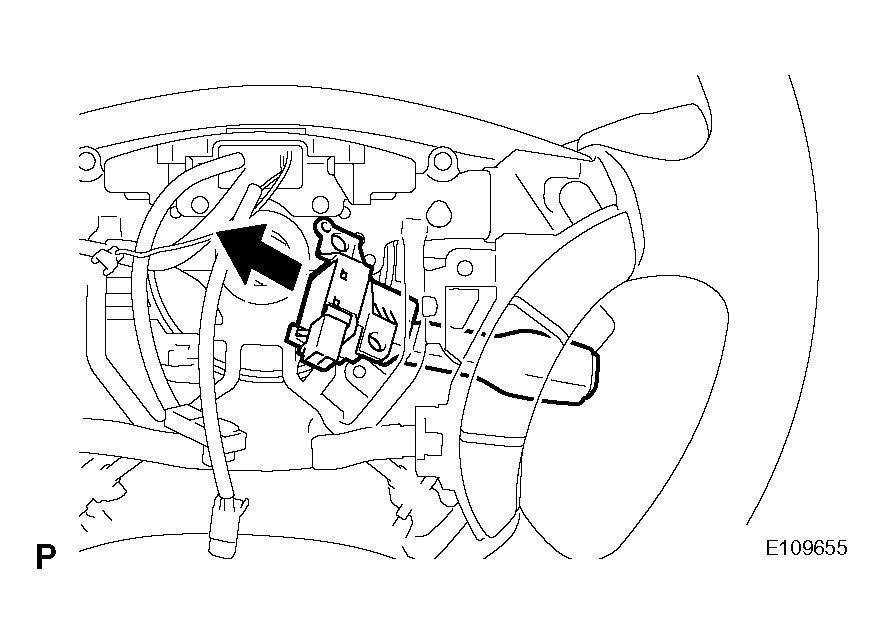

    Fig 2: Pulling Cruise Control Main Switch In Arrow Direction
    G04439963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
