Cruise Control Main Switch: Installation

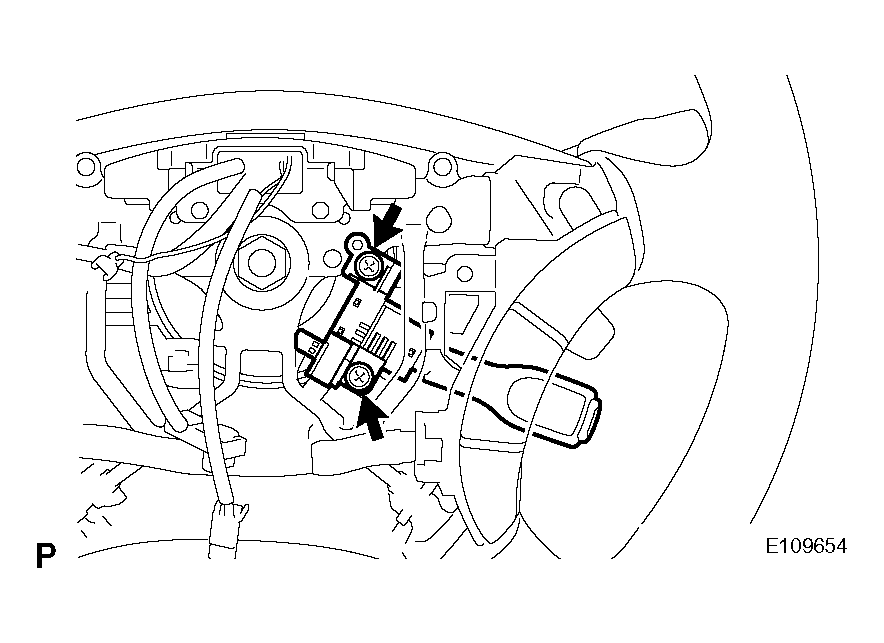

Fig 1: Installing Cruise Control Main Switch With Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. INSTALL CRUISE CONTROL MAIN SWITCH
   1. Install the cruise control main switch with the 2 screws.

      Torque: 2.4 N.m (25 kgf.cm, 21 in.lbf)

   2. Connect the connector.
2. INSTALL STEERING PAD (See  REMOVAL  )
3. INSTALL STEERING WHEEL NO.3 COVER LOWER (See  INSTALLATION  )
4. INSTALL STEERING WHEEL NO.2 COVER LOWER (See  INSTALLATION  )
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
   NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal INITIALIZATION .
7. INSPECT STEERING PAD  ON-VEHICLE INSPECTION
8. INSPECT SRS WARNING LIGHT

(See DIAGNOSIS SYSTEM )
