Section 29 (Can Communication Systems (Hybrid)): Precaution

WARNING: This page is about a different variant/trim than selected.

STEERING SYSTEM HANDLING PRECAUTIONS
1. Care must be taken when replacing parts. Incorrect replacement could affect the performance of the steering system and result in hazardous driving.
SRS AIRBAG SYSTEM HANDLING PRECAUTIONS
1. This vehicle is equipped with an SRS (Supplemental Restraint System) such as the driver airbag and front passenger airbag. Failure to carry out service operations in the correct sequence could cause unexpected SRS deployment during servicing and may lead to a serious accident. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read the precautionary notice for the Supplemental Restraint System (See AIRBAG SYSTEM ).
CONNECTOR HANDLING
1. When checking resistance with a tester, insert the tester probes from the backside (harness side) of the connector.
2. Perform the resistance check after disconnecting the negative cable of the auxiliary battery.

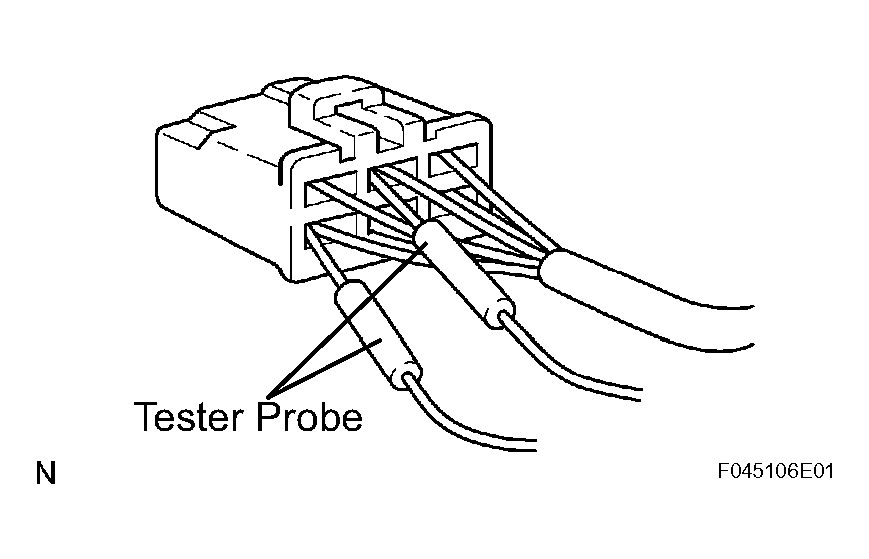

  Fig 1: Inserting Tester Probes From Backside (Harness Side) Of Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Use a service wire to check the connector if it is impossible to check continuity from the rear of the connector.

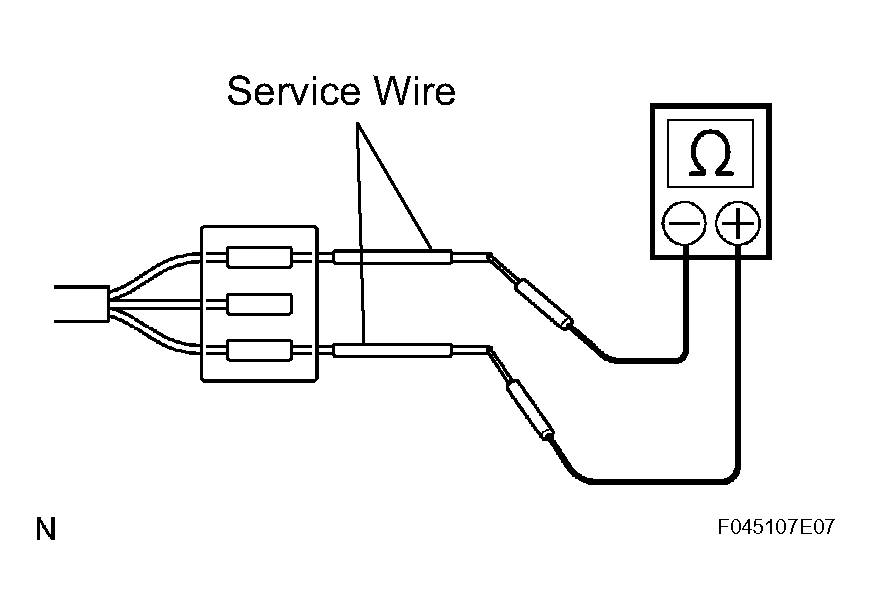

  Fig 2: Identifying Service Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
