Knock Sensor: Installation

INSTALL KNOCK SENSOR
1. Install the sensor with the nut.
  Torque: 20 N.m (199 kgf.cm, 14 ft.lbf)

  HINT:

  Angling the knock sensor below the horizontal (below 0°) is recommended.
2. Connect the sensor connector.

  Fig 1: Angling Knock Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket and the intake manifold with the 5 bolts and 2 nuts.
  Torque: 30 N.m (305 kgf.cm, 22 ft.lbf)
INSTALL THROTTLE BODY ASSEMBLY (See INSTALLATION )
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See INSTALLATION )
ADD ENGINE COOLANT (See ON-VEHICLE INSPECTION )
CHECK ENGINE COOLANT LEAKAGE (See ON-VEHICLE INSPECTION )

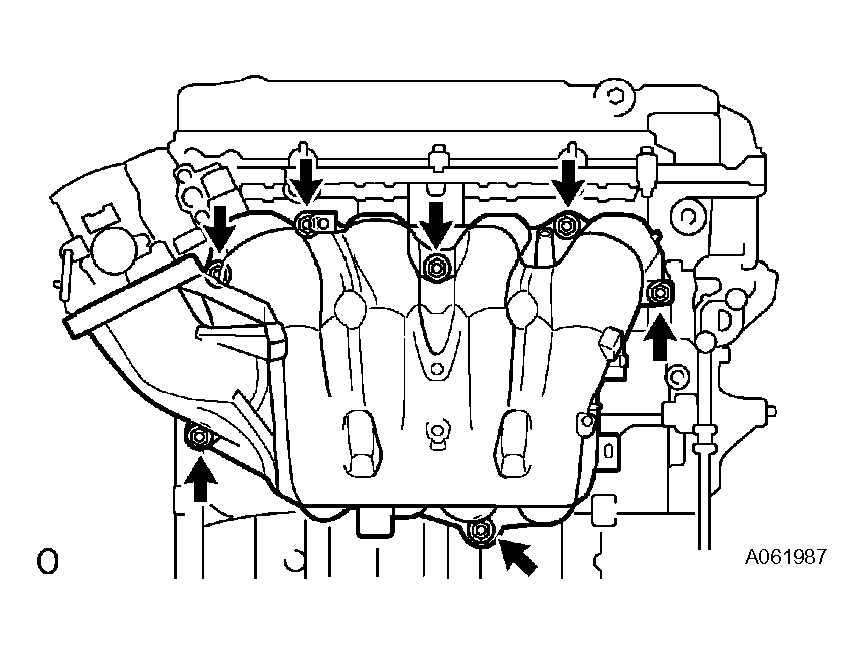

Fig 2: Installing Gasket And Intake Manifold With Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
