Audio & Visual System: Components

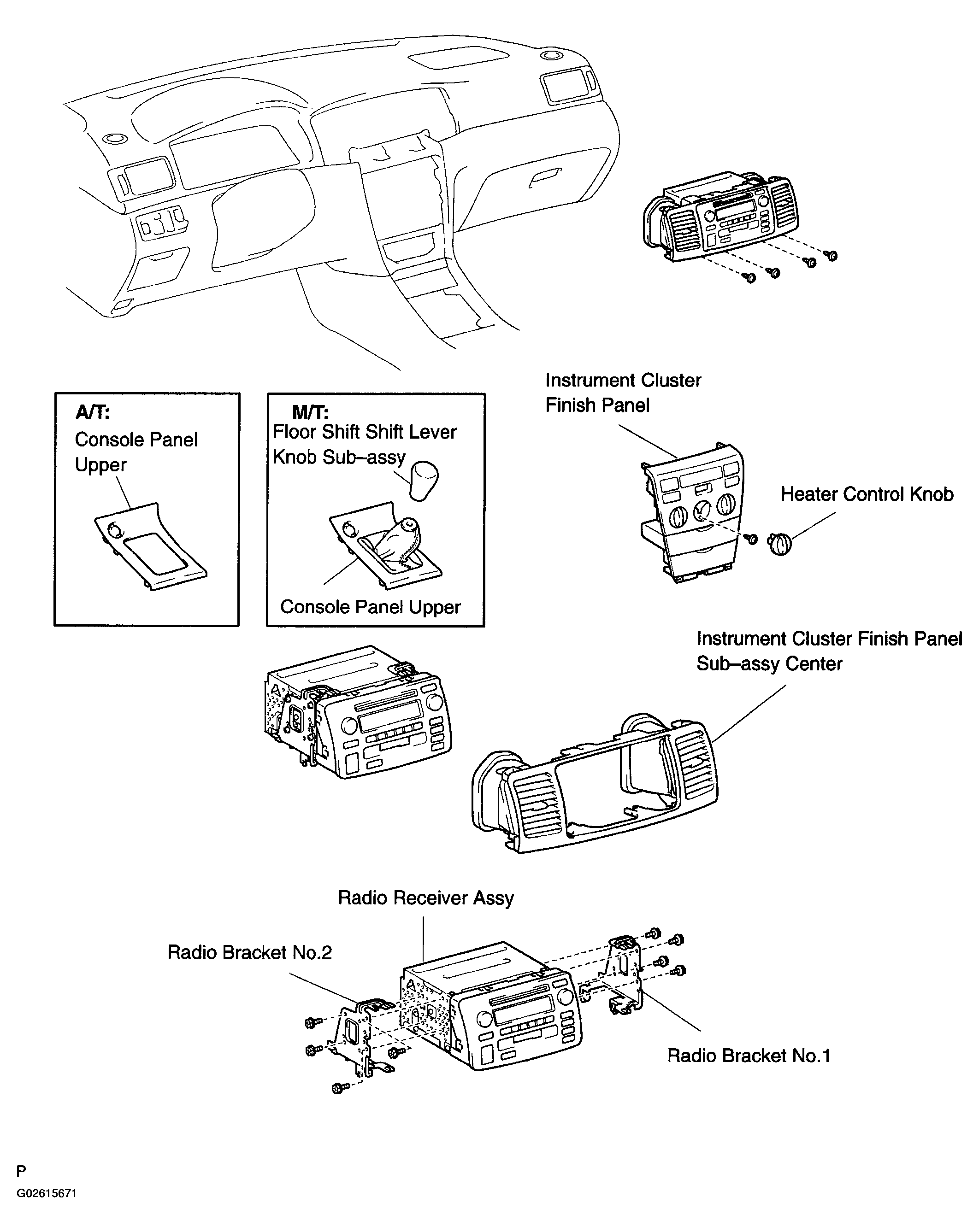

Fig 1: Identifying Audio And Visual System Components (1 of 2)
G02615671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

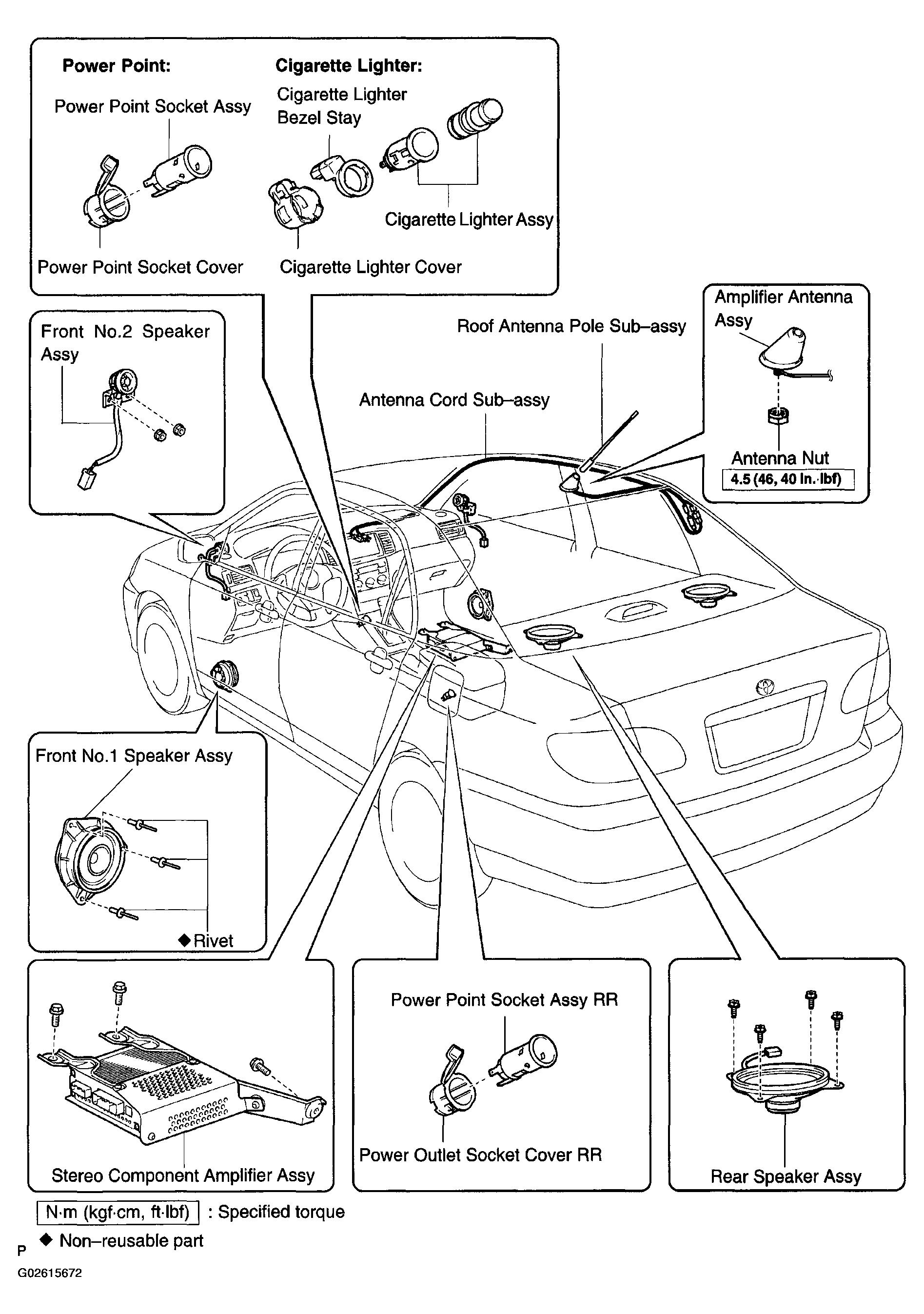

Fig 2: Identifying Audio And Visual System Components (2 of 2)
G02615672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
