Stabilizer Bar Rear: Replacement

HINT:

COMPONENTS: See STABILIZER BAR REAR

1. REMOVE STABILIZER BAR REAR
   1. Remove the 2 bolts, nuts and stabilizer bar.

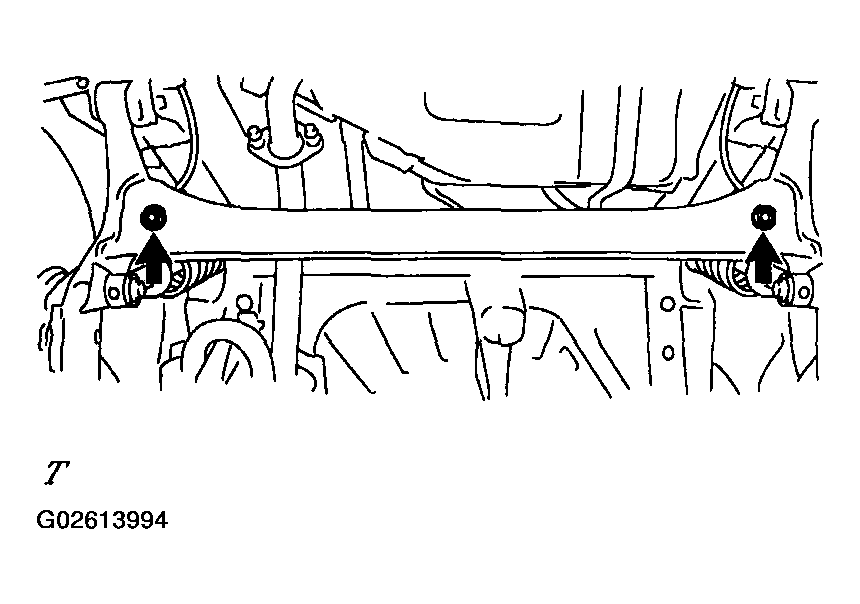

   Fig 1: Removing Nuts And Stabilizer Bar

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL STABILIZER BAR REAR
   1. Install the 2 bolts, nuts and stabilizer bar.

      Torque: 195 N.m (1,990 kgf.cm, 144 ft.lbf)

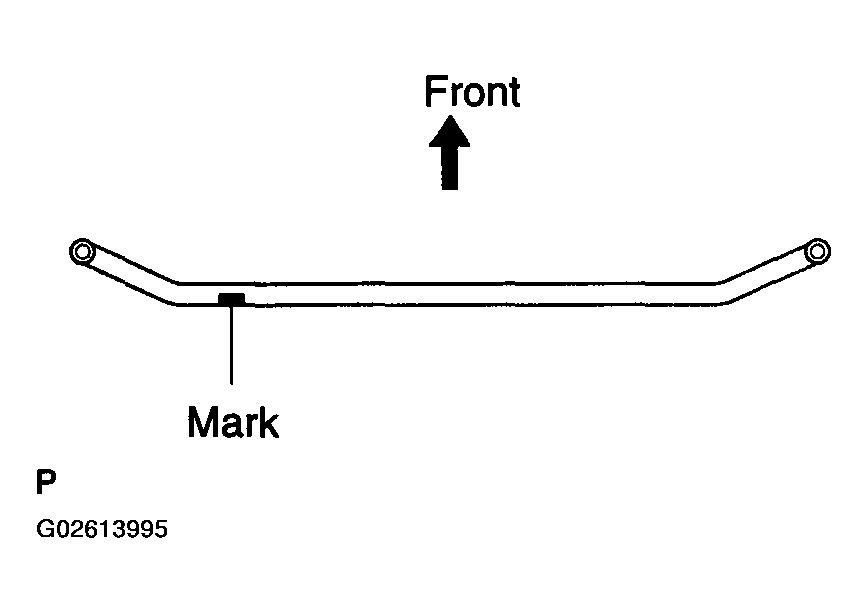

   Fig 2: Identifying Mark On Stabilizer Bar

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Install the stabilizer bar so that the mark is positioned on the rear left side of the vehicle.
