Rear Suspension: Components

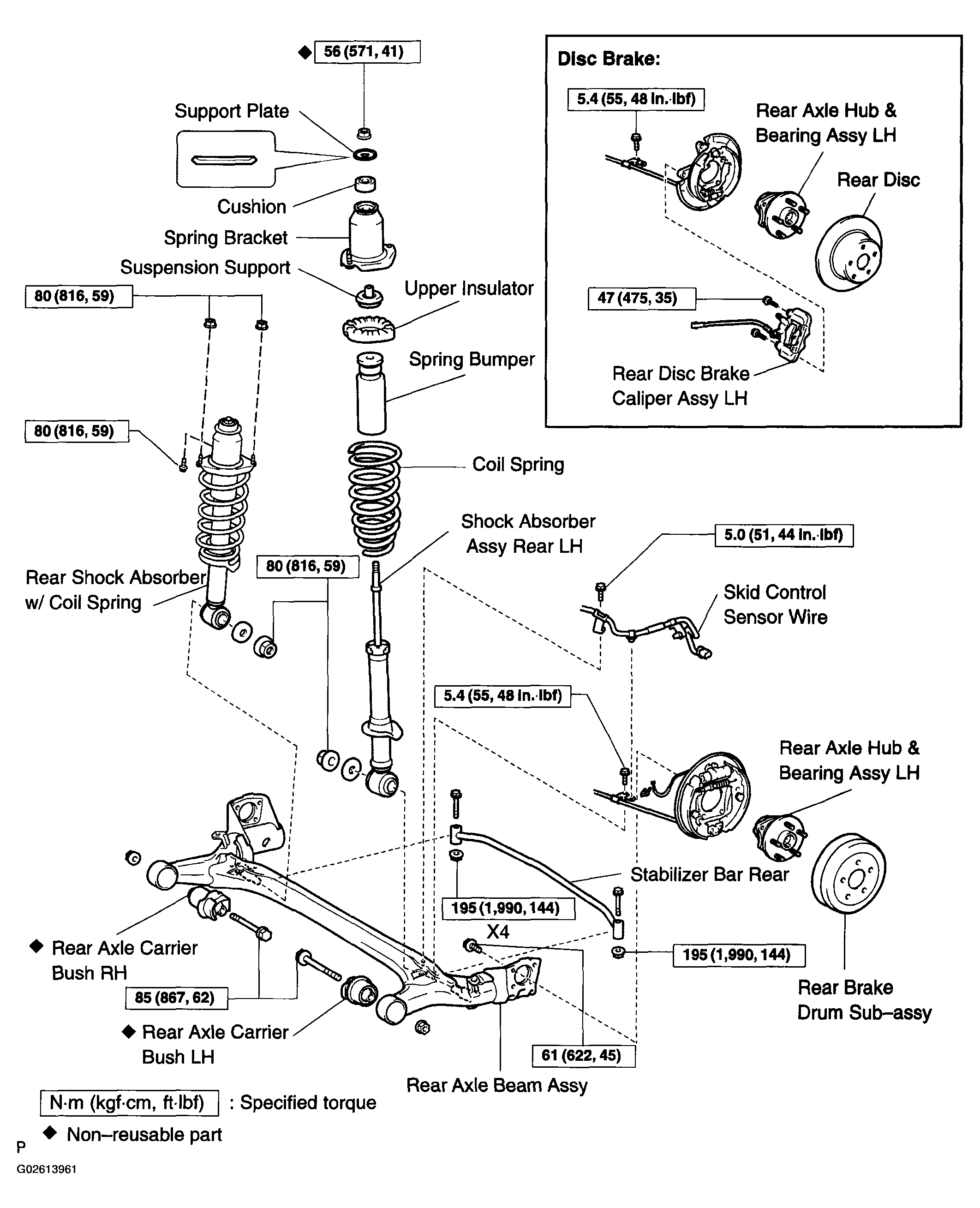

Fig 1: Identifying Rear Suspension Components
G02613961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
