Vane Pump ASSY: Components

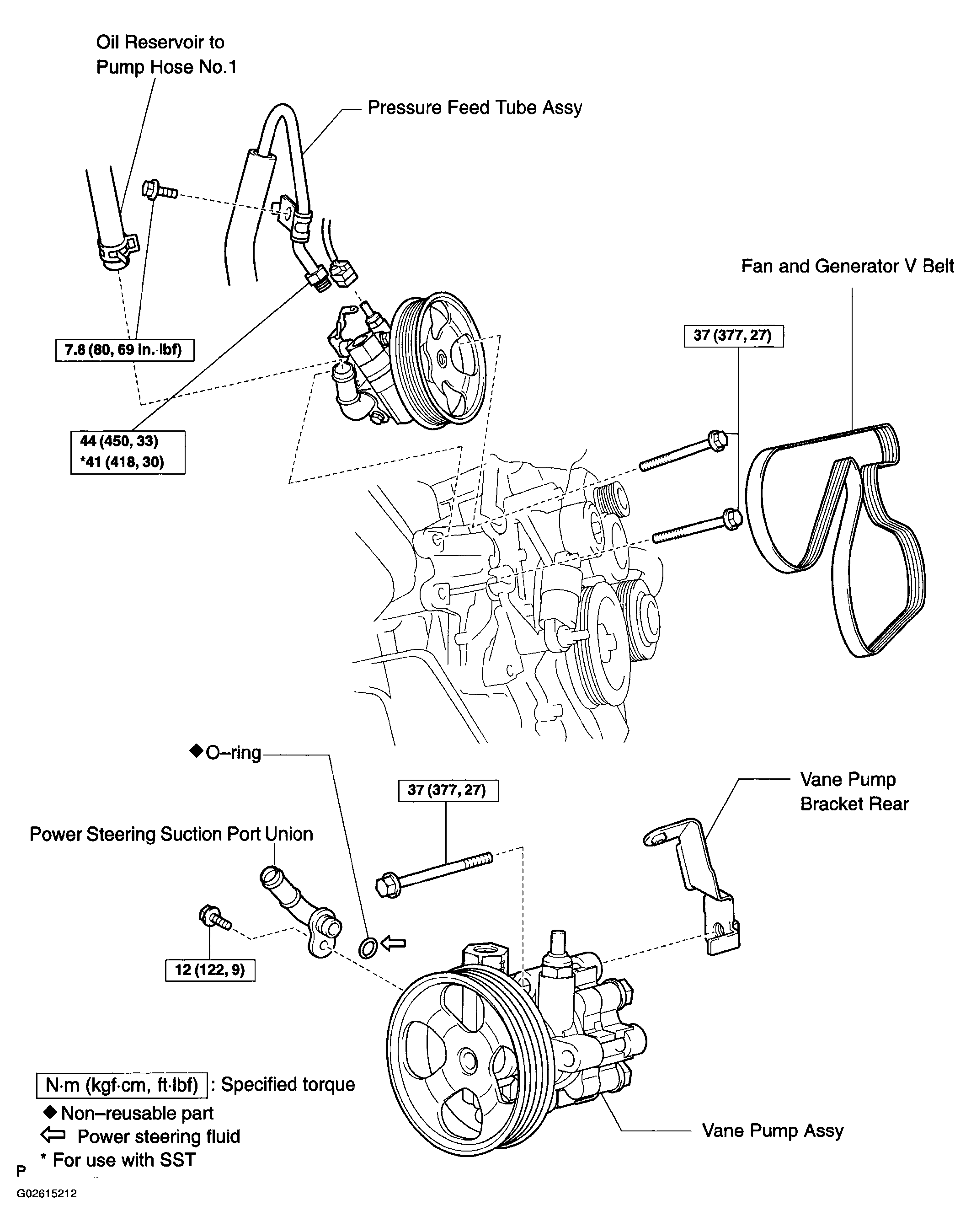

Fig 1: Identifying Vane Pump Assy Components (1 Of 2)
G02615212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

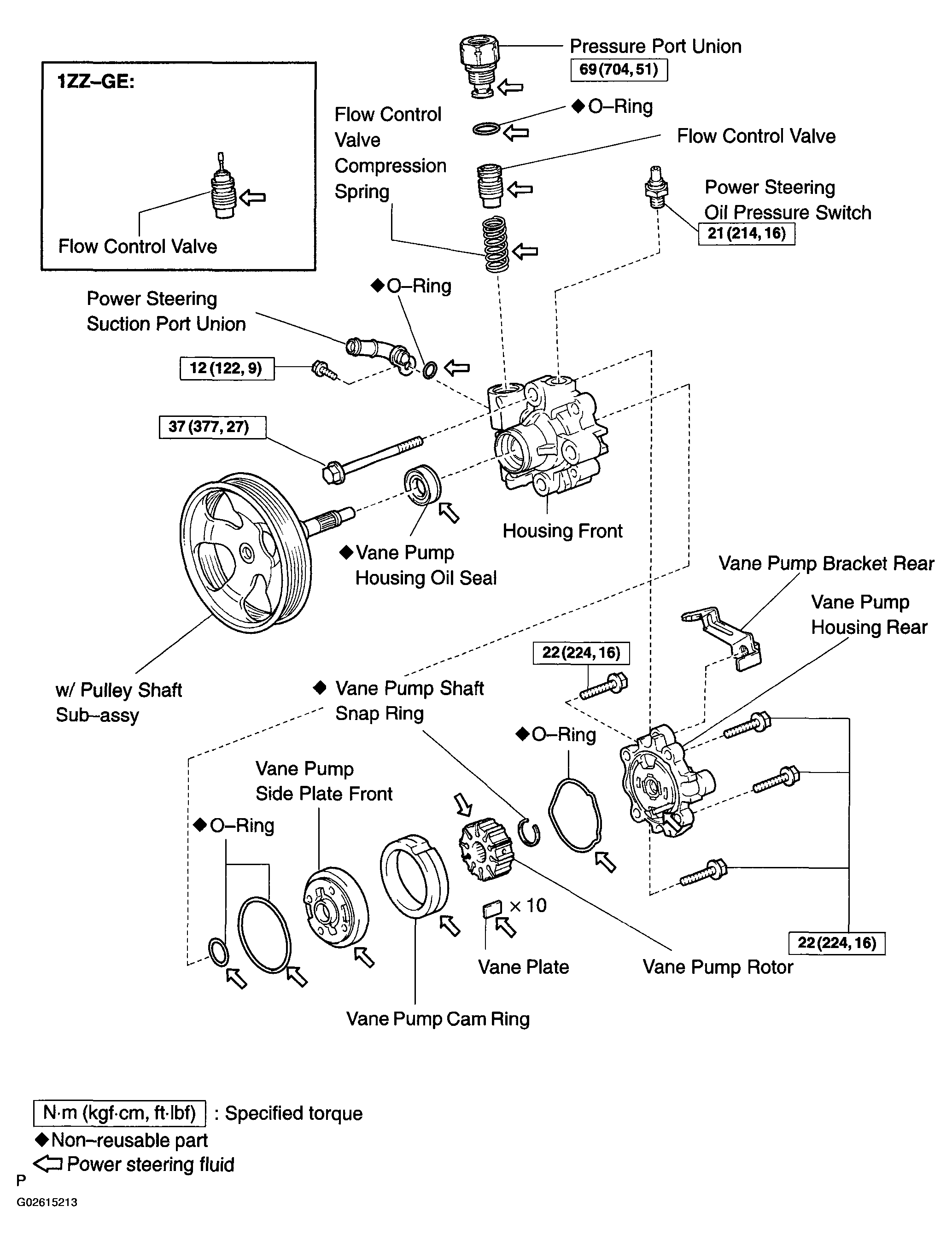

Fig 2: Identifying Vane Pump Assy Components (2 Of 2)
G02615213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
