Front Stabilizer Bar: Installation

INSTALL STABILIZER BAR FRONT
1. Install the stabilizer bar front to the vehicle.
INSTALL FRONT STABILIZER BAR BUSH NO. 1
1. Install the bush as to the outer side of the each bush stopper on the stabilizer bar.
2. Place the cutout of the stabilizer bush as facing the rear side as shown in Fig 1 .

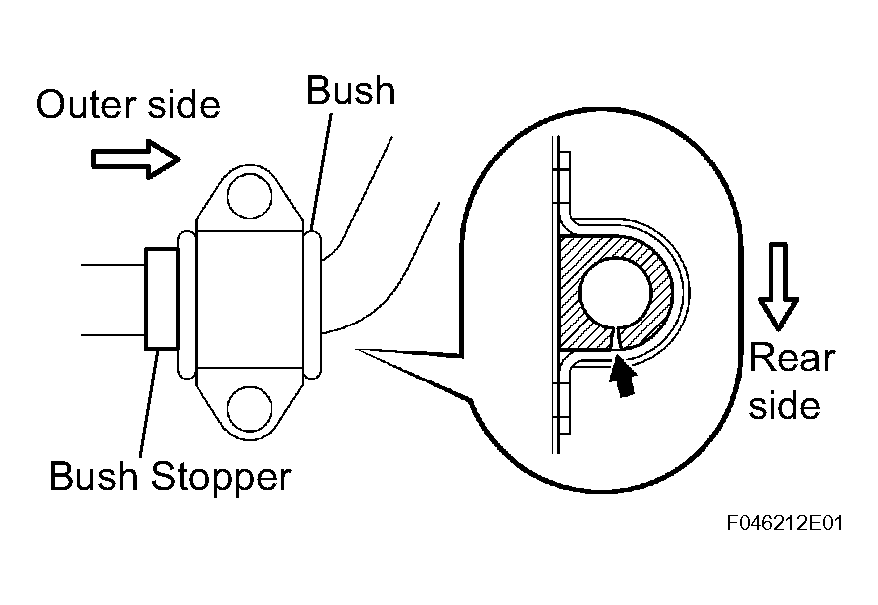

  Fig 1: Placing Cutout Of Stabilizer Bush As Facing Rear Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RACK & PINION POWER STEERING GEAR ASSEMBLY (See INSTALLATION )
INSTALL PRESSURE FEED TUBE ASSEMBLY (See INSTALLATION )
INSTALL STEERING GEAR OUTLET RETURN TUBE (See INSTALLATION )
INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY (See INSTALLATION )
INSTALL TIE ROD ASSEMBLY LH (See INSTALLATION )
INSTALL TIE ROD ASSEMBLY RH
HINT:

Install the RH side following the same procedures as with the LH side.
INSTALL FRONT STABILIZER BRACKET NO. 1 LH
1. Install the 2 front stabilizer brackets No. 1 LH with the 2 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

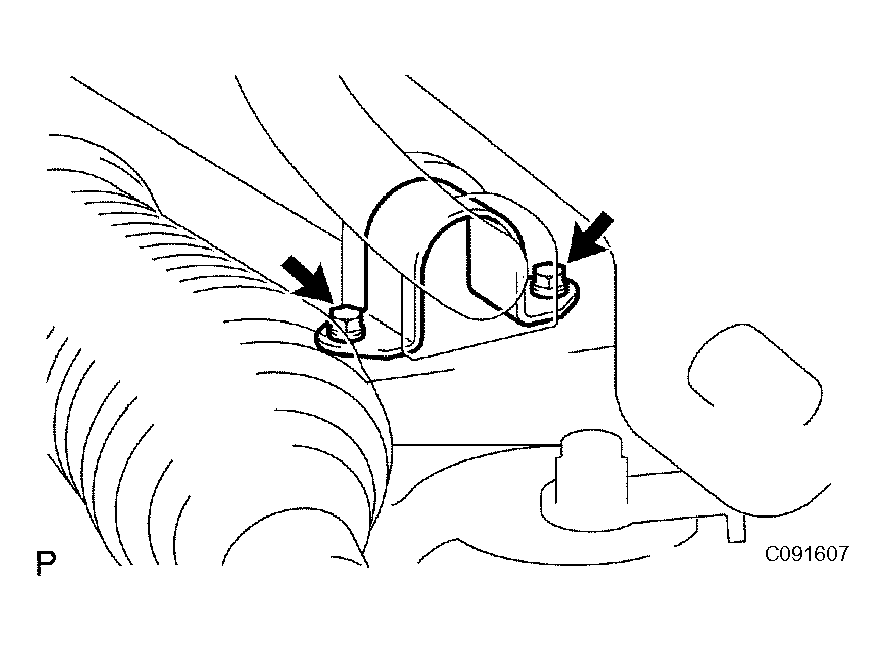

  Fig 2: Installing Front Stabilizer Brackets No. 1 LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER BRACKET NO. 1 RH
HINT:

Install the RH side following the same procedures as with the LH side.
INSTALL FRONT STABILIZER LINK ASSEMBLY LH
1. Install the front stabilizer link assembly LH with the 2 nuts.
  Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

  HINT:

  Use a hexagon (6 mm) wrench to hold the stud if the ball joint turns together with the nut.

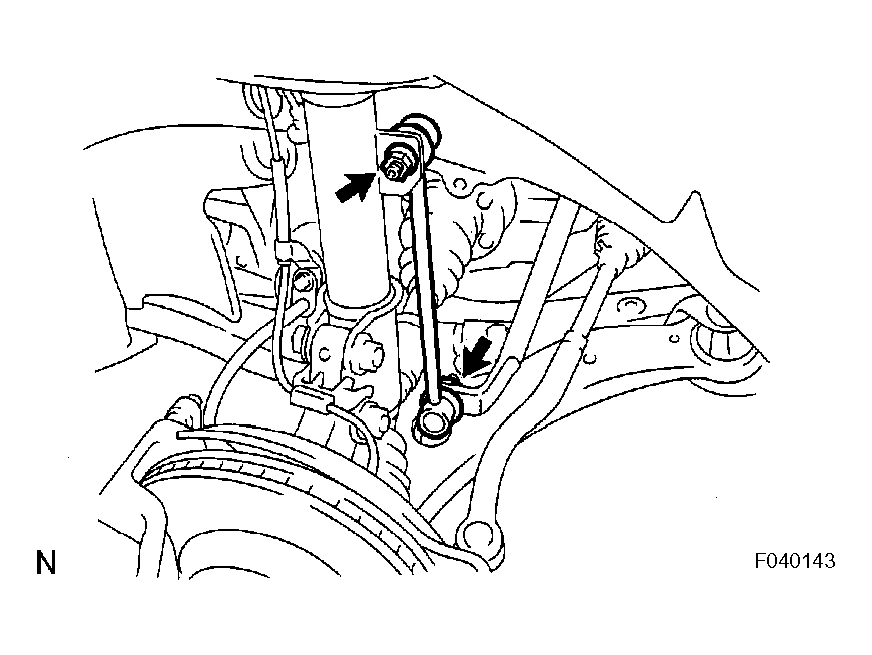

  Fig 3: Installing Front Stabilizer Link Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Install the RH side following the same procedures as with the LH side.
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
BLEED POWER STEERING FLUID
HINT:

See ON-VEHICLE INSPECTION
POWER STEERING FLUID LEAK
INSPECT AND ADJUST STEERING WHEEL CENTER POINT
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
HINT:

See ADJUSTMENT
