Front Shock Absorber: Reassembly

INSTALL SHOCK ABSORBER ASSEMBLY FRONT LH
1. Install the front coil spring insulator lower LH onto the shock absorber assembly front LH.

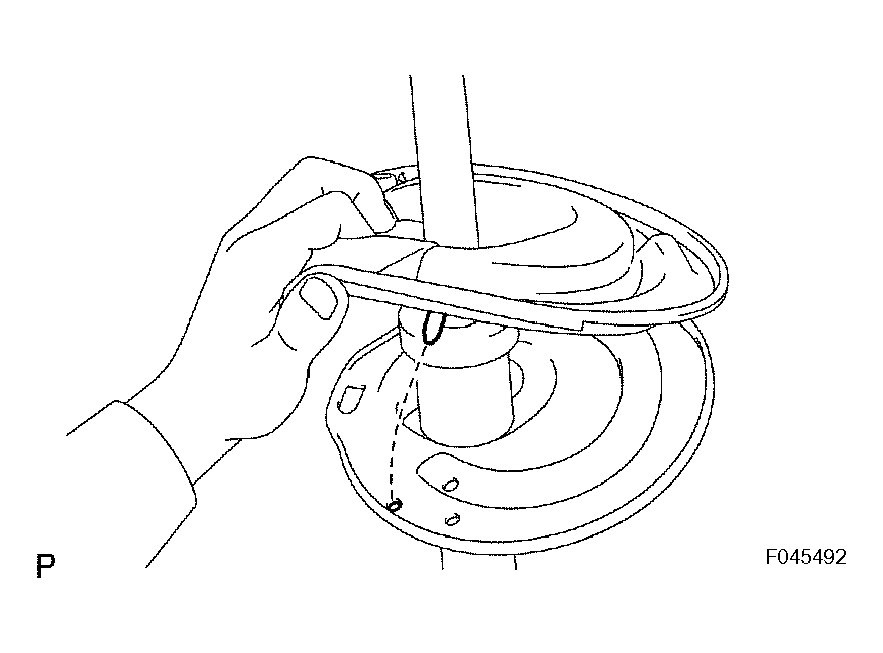

  Fig 1: Installing Front Coil Spring Insulator Lower LH Onto Shock Absorber Assembly Front LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front spring bumper LH to the piston rod.
3. Compress the front coil spring LH using SST.
  SST 09727-30021 (09727-00010, 09727-00021)

  NOTE: Do not use an impact wrench. It will damage the SST.

  HINT:

  Use 2 of the same type of SST.

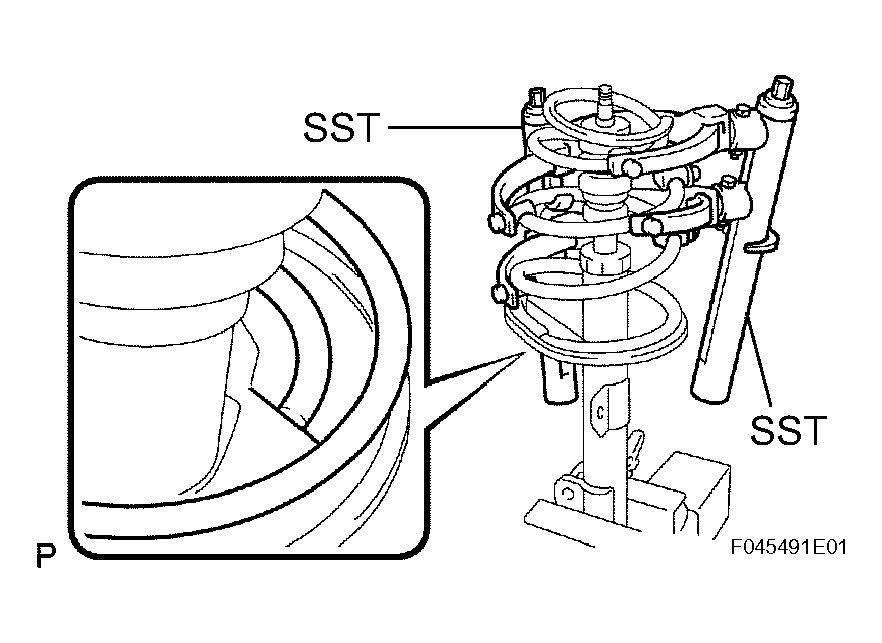

  Fig 2: Compressing Front Coil Spring LH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front coil spring LH to the shock absorber assembly front LH.
  HINT:

  Fit the lower end of the front coil spring LH into the gap of the front coil spring lower LH.
5. Install the front coil spring insulator upper LH as shown in Fig 3 .

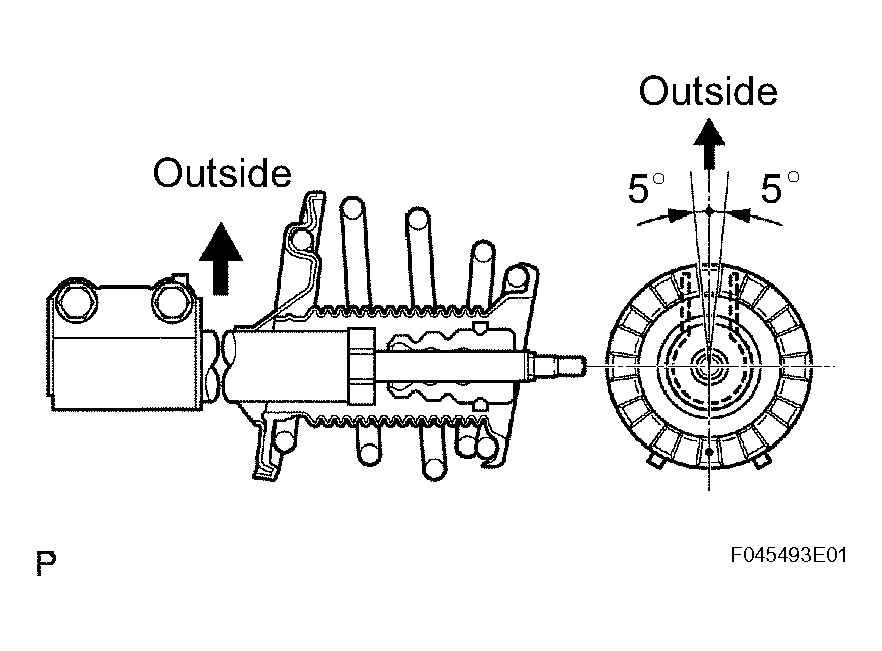

  Fig 3: Installing Front Coil Spring Insulator Upper LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the front coil spring seat upper LH to the shock absorber assembly front LH with the mark facing to the outside of the vehicle.

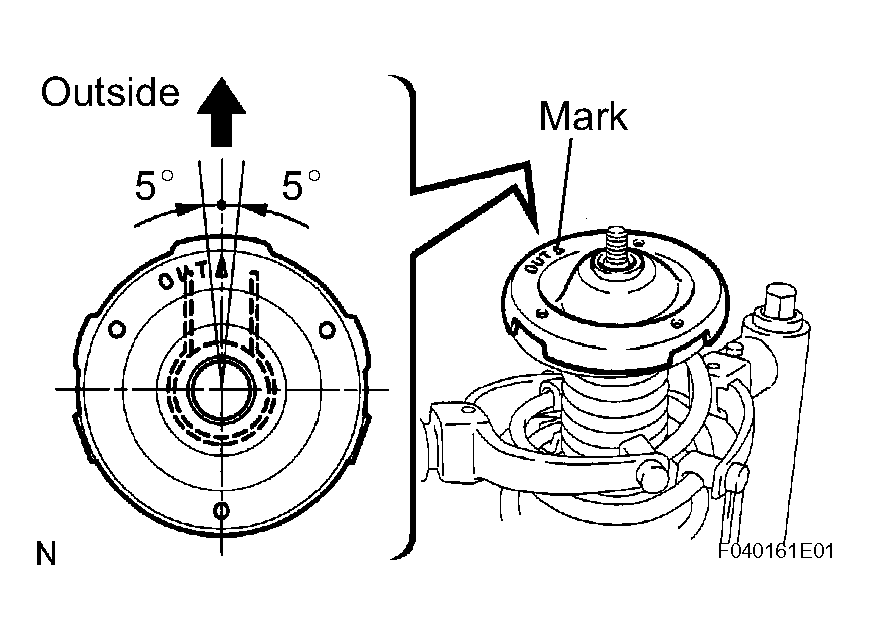

  Fig 4: Installing Front Coil Spring Seat Upper LH To Shock Absorber Assembly Front LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install a new front suspension support bearing LH as shown in Fig 5 .

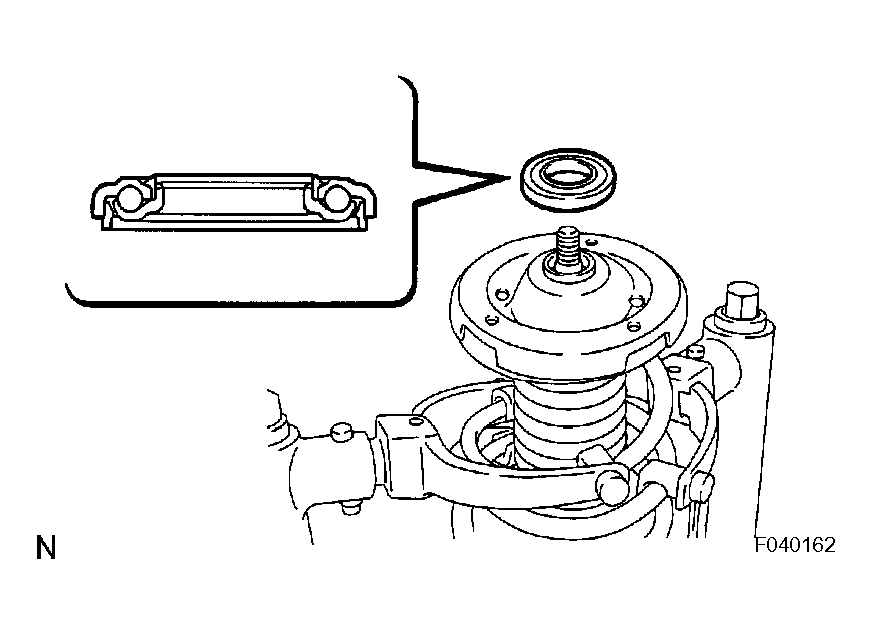

  Fig 5: Installing Front Suspension Support Bearing LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Install the front suspension support sub-assembly LH with the mark facing the outside of the vehicle.

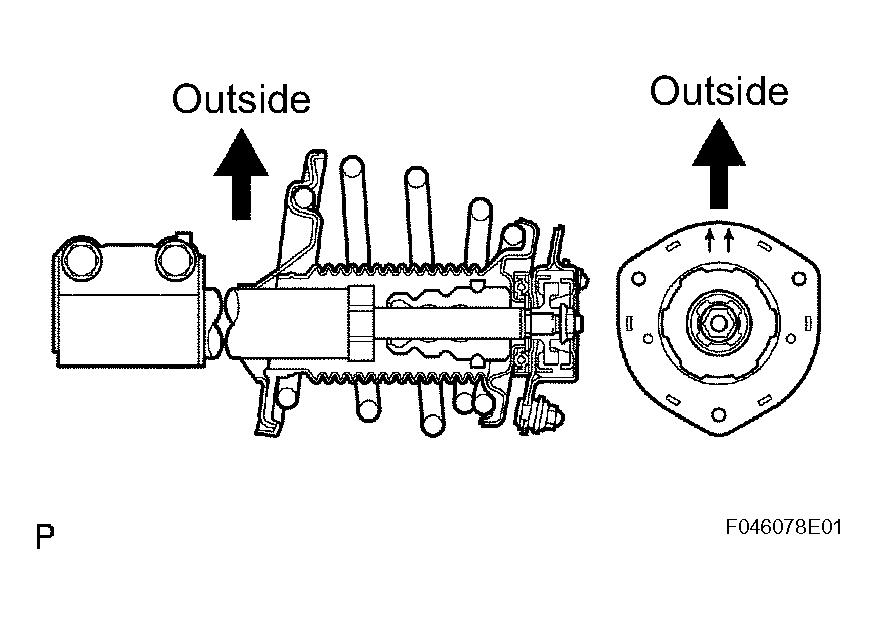

  Fig 6: Installing Front Suspension Support Sub-Assembly LH With Mark Facing Outside Of Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Temporarily tighten a new lock nut.
10. Remove the SST slowly in order to release the coil spring.
  SST 09727-30021 (09727-00010, 09727-00021)
