Stop Light Switch: Inspection

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT STOP LIGHT SWITCH ASSEMBLY
    1. Inspect the stop light switch assembly.

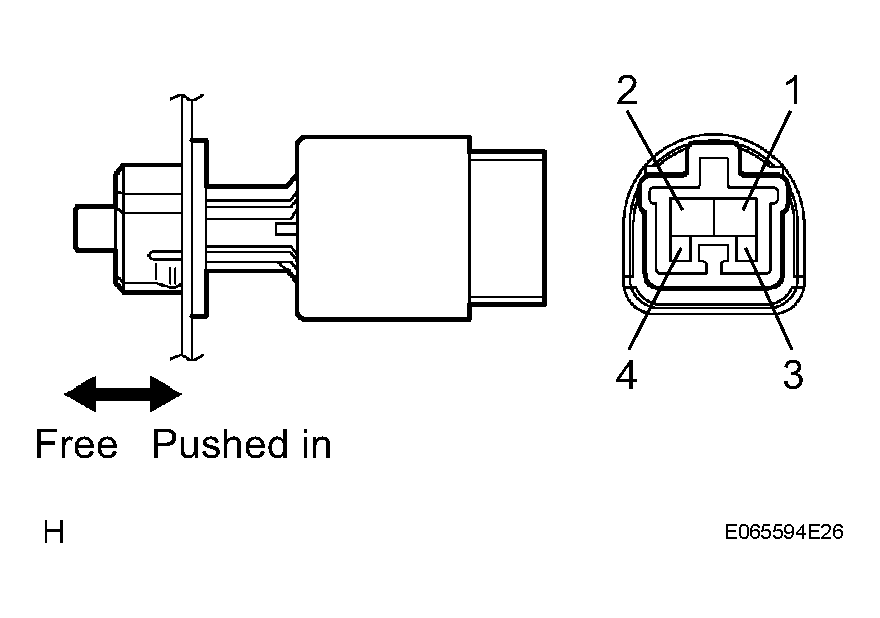

      Fig 1: Identifying Stop Light Switch Connector Terminals
      G04379094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.
        STANDARD RESISTANCE CONDITION CHART

        Tester Connection Switch Condition Specified Condition
        1 - 2 Switch pin free 10 k or higher
        3 - 4 Switch pin free Below 1
        1 - 2 Switch pin pushed in Below 1
        3 - 4 Switch pin pushed in 10 k or higher
