Rear Combination Light Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR COMBINATION LIGHT BRACKET LH
    1. Remove the 2 nuts and the rear combination light bracket LH.

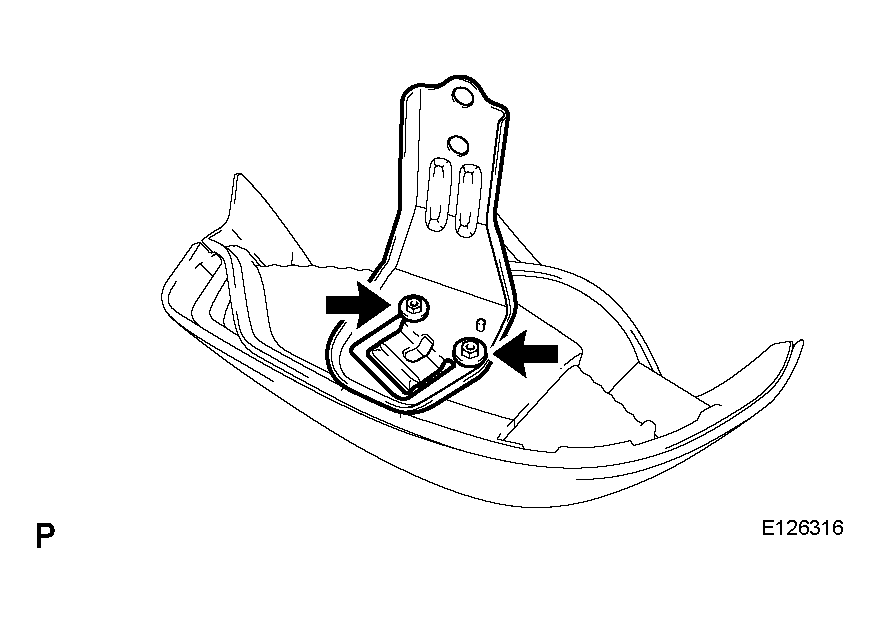

      Fig 1: Removing Rear Combination Light Bracket LH
      G04379065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR COMBINATION LIGHT SOCKET & WIRE
    1. Remove the rear combination light socket & wire as shown in Fig 2.

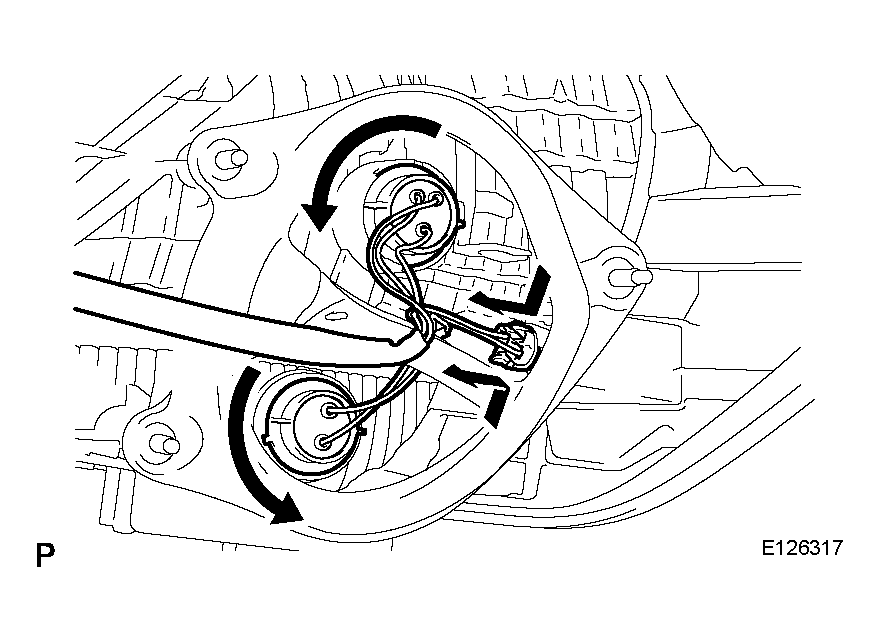

      2. Fig 2: Removing Rear Combination Light Socket And Wire
      G04379066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR COMBINATION LIGHT BULB
  4. REMOVE REAR COMBINATION LIGHT BODY GASKET LH
