Light Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

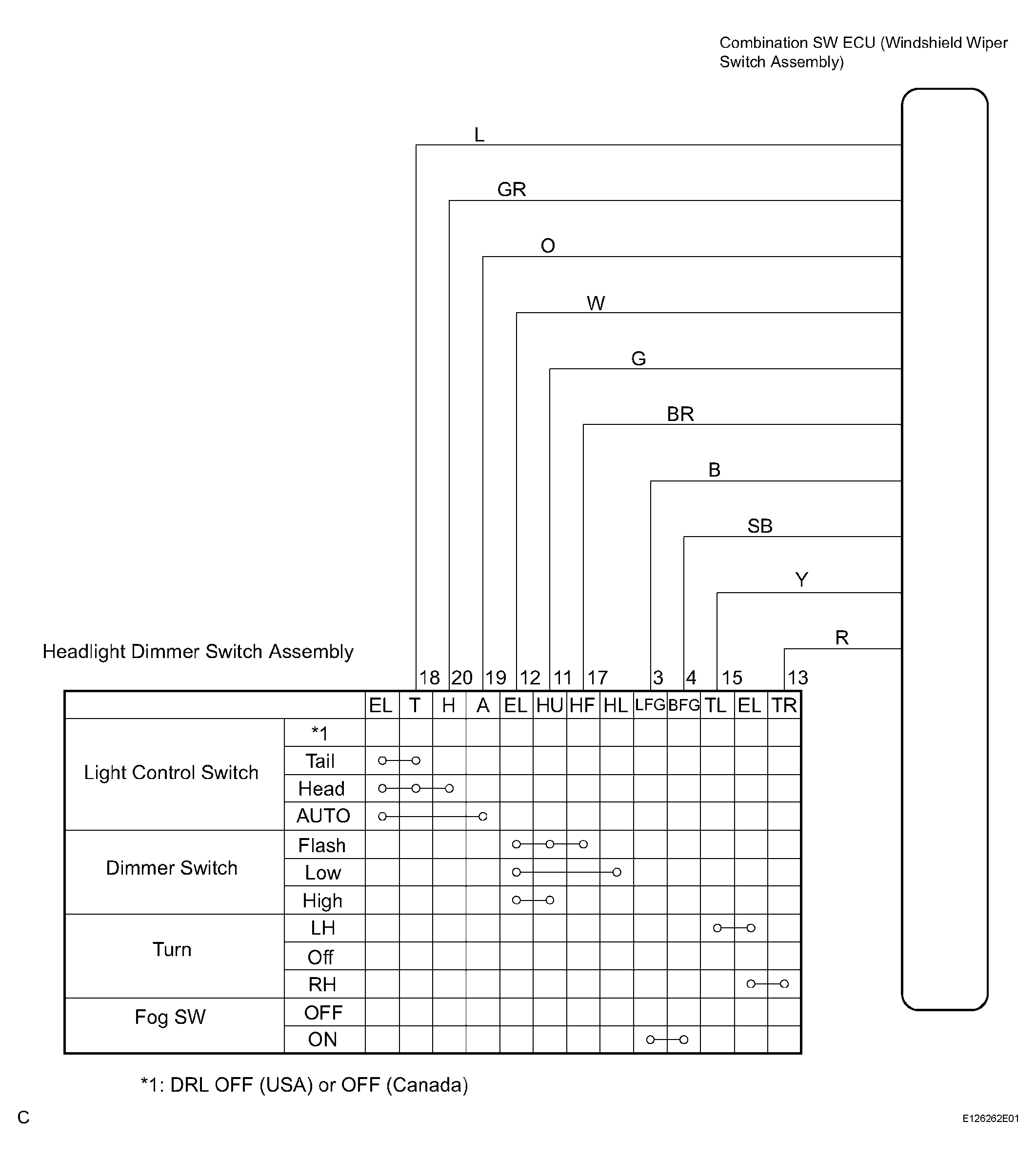

Fig 1: Wiring Diagram - Light Control Switch Circuit
G04378977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
