Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (FRONT CONTROLLER - HEADLIGHT BEAM LEVEL CONTROL ECU)
    1. Disconnect connector 1H from the front controller.

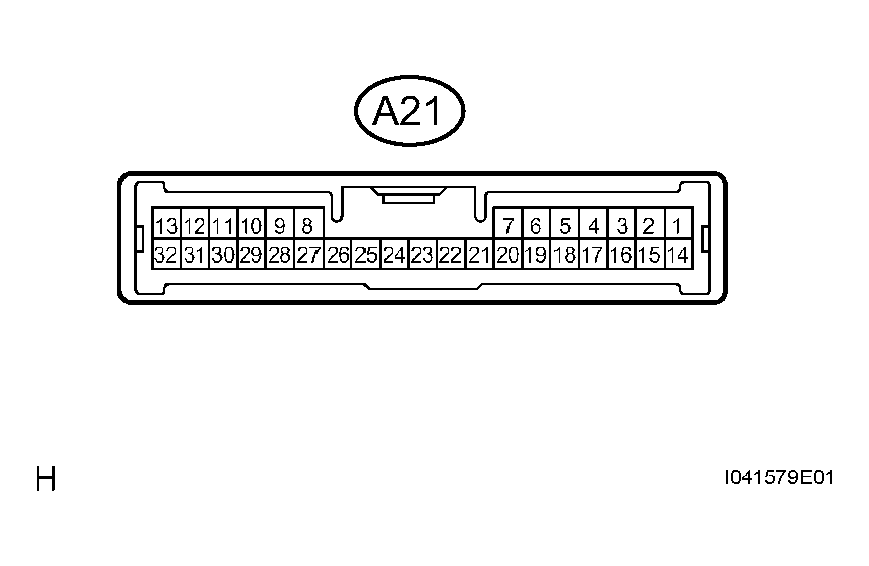

      Fig 1: Identifying Front Controller - Headlight Beam Level Control ECU Connector Terminals (1 Of 2)
      G04379001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the headlight beam level control ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

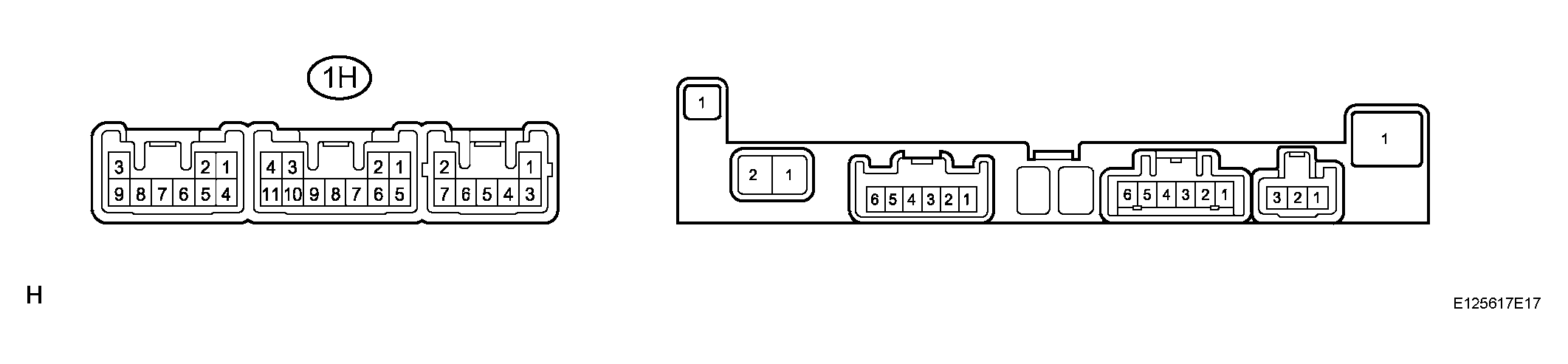

      Fig 2: Identifying Front Controller - Headlight Beam Level Control ECU Connector Terminals (2 Of 2)
      G04379002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE CONDITION CHART

      Tester Connection Condition Specified Condition
      A21-7 - 1H-11 Always Below 1
      A21-7 - Body ground Always 10 k or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - HEADLIGHT BEAM LEVEL CONTROL ECU)
    1. Disconnect the headlight beam level control ECU connector and the skid control ECU connector.

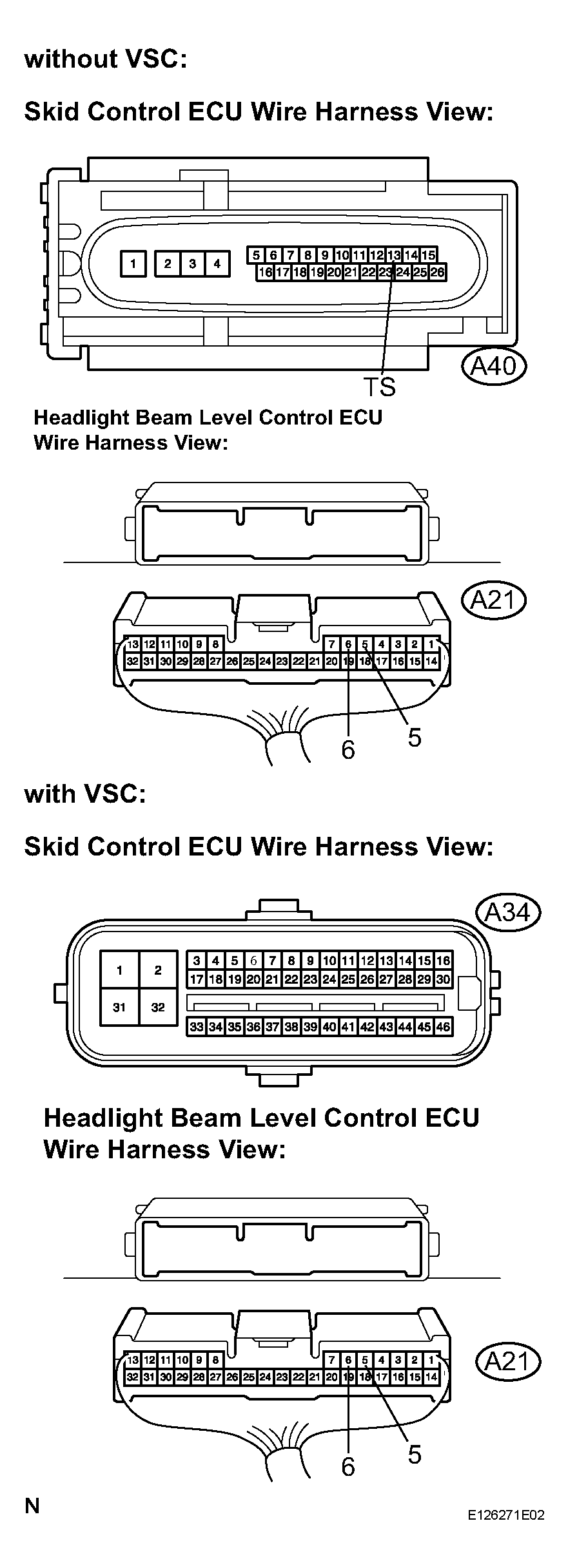

      Fig 3: Disconnecting The Headlight Beam Level Control ECU Connector And The Skid Control ECU Connector
      G04379003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      STANDARD RESISTANCE: WITHOUT VSC CONDITION CHART

      Tester Connection Condition Specified Condition
      A21-6 - A40-13 Always Below 1
      A21-5 - A40-24 Always Below 1
      A21-6 - Body ground Always 10 k or higher
      A21-5 - Body ground Always 10 k or higher
      STANDARD RESISTANCE: WITH VSC CONDITION CHART

      Tester Connection Condition Specified Condition
      A21-6 - A34-39 Always Below 1
      A21-5 - A34-40 Always Below 1
      A21-6 - Body ground Always 10 k or higher
      A21-5 - Body ground Always 10 k or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (GENERATOR ASSEMBLY - HEADLIGHT BEAM LEVEL CONTROL ECU)
    1. Disconnect connector B6 of the generator and connector A21 of the headlight beam level control ECU.
    2. Measure the resistance according to the value(s) in the table below.
      STANDARD RESISTANCE CONDITION CHART

      Tester Connection Condition Specified Condition
      B6-4 (L) - A21-8 (CHG-) Always Below 1

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

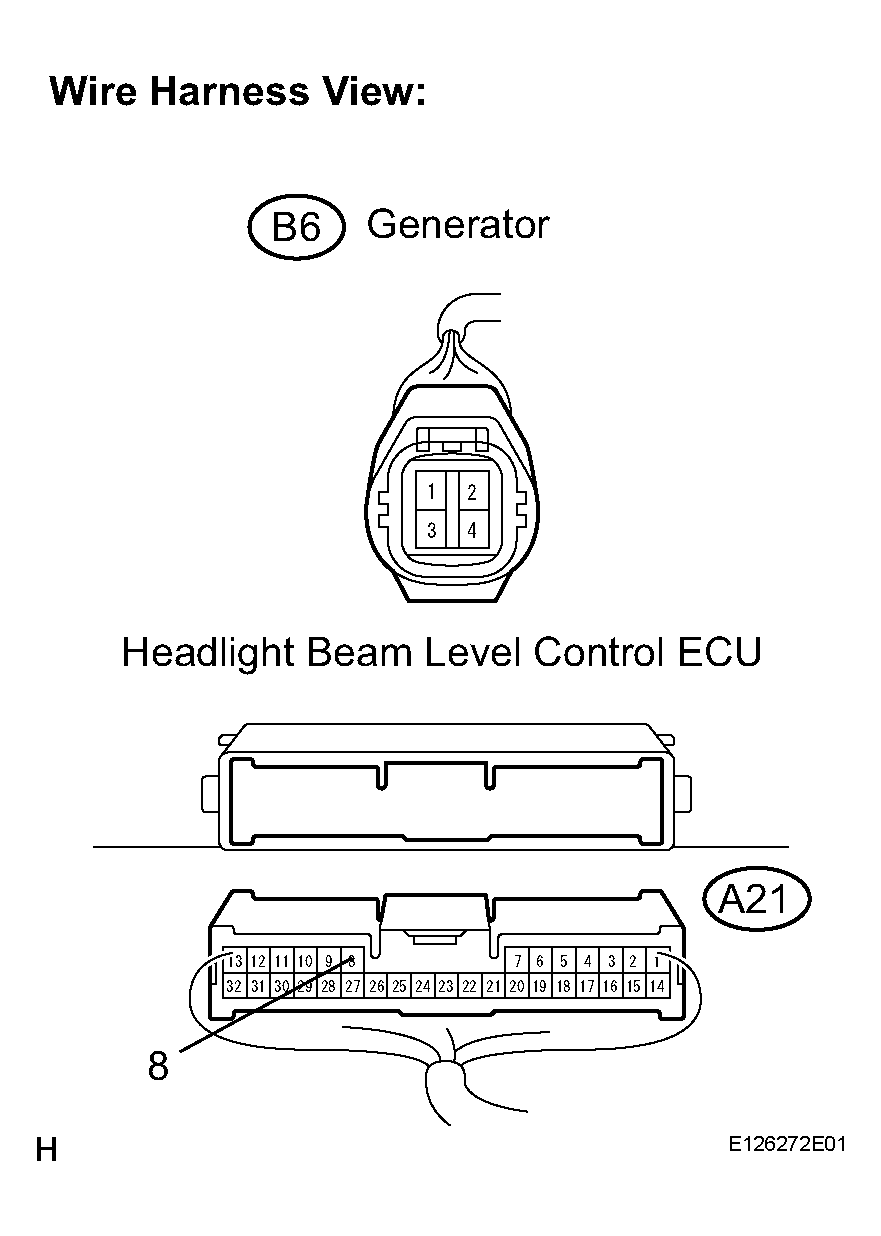

    Fig 4: Identifying Terminals Of Headlight Beam Level Control ECU Connector
    G04379004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
