DTC Check / Clear

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch on (IG).
3. Read DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.

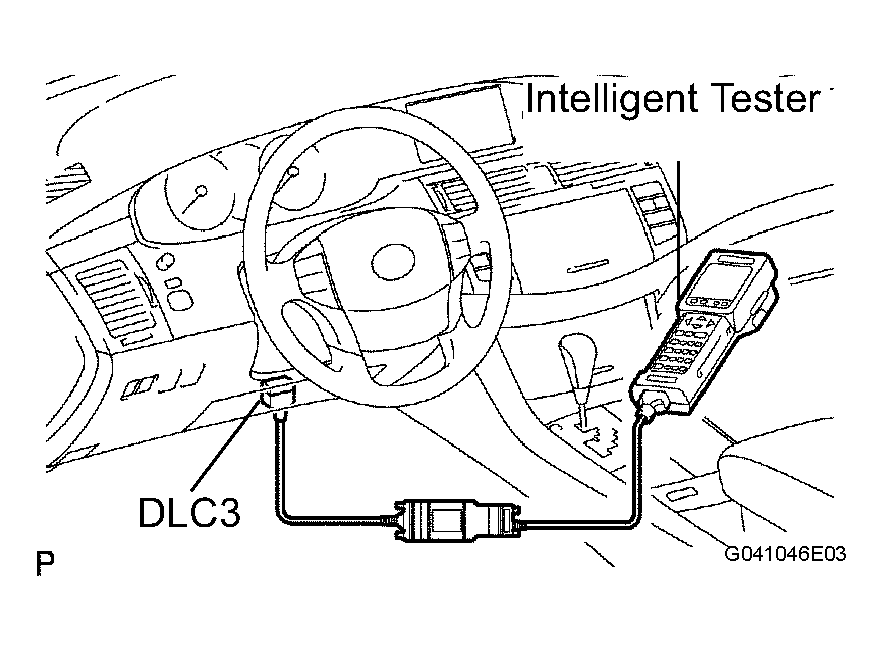

  Fig 1: Connecting The Intelligent Tester To The DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC CLEAR
1. DTCs can be cleared by operating the intelligent tester.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
