Customize Parameters

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The following items are possible to customize.

NOTE:

After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
Be sure to record the current value before customizing.
In case of performing the troubleshooting, pay attention as there is a possibility that a function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

ILLUMINATED ENTRY CHART

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
LIGHTING TIME (Lighting Time)	15 s	To change the lighting time after closing the door. (It will quickly fade out in case of turning the ignition on (IG).)	7.5 s / 15 s / 30 s
ILLUMI SYSTEM (Operation of illumination)	ON	Function to turn on the step light, center console light and door inside handle light when one of the following occurs; the ignition turned on (IG), door unlock or door open.	ON / OFF
LIGHT CONTROL (Light control)	ON	Function to turn on the step light and door inside handle light when the ignition switch is turned on (IG) and the shift lever is not in the P position.	ON / OFF
I/L ON / UNLOCK (Interior light ON w/ door key unlock)	ON	Function to turn on the interior light, ignition light and step light when unlocking with the door key cylinder. : Interior light comes on when the interior light switch is in the DOOR position.	ON / OFF
I/L ON / ACC OFF (Illumination system ON with ACC OFF)	ON	Function to turn on the interior light* and door courtesy light when the ignition switch is turned from on (ACC) to off. *: Interior light comes on when the interior light switch is in the DOOR position.	ON / OFF

LIGHT CONTROL REFERENCE CHART

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
LIGHT OFF DELAY (Light Auto OFF Delay)	30 s	Function to keep the headlight on for a certain period of time after closing all the doors when turning the ignition switch on (IG) under the condition that the light control switch is in the HEAD or AUTO position with the headlight ON.	OFF / 30 s / 60 s / 90 s
LIGHT CTRL TYPE (Control Type)	CURRENT	To change the control logic when the light control switch is in the AUTO position. Refer to Table 1 .	CURRENT / OLD
SENSITIVITY (Turn ON Luminous Intensity)	NORMAL	To adjust the sensitivity of the lighting illumination. Refer to illustration 1of Fig 1.	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
DISP EX ON SEN (Display Extinction Luminous Intensity)	NORMAL	To dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to illustration 2 of Fig 1.	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
DISP EX OFF SEN (Display Extinction Release Luminous Intensity)	NORMAL	To cancel to dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to illustration 3 ofFig 1.	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2

HINT:

Sensitivity adjustment is dependent on the owner's preference. Actual driving by the owner is required.

Table 1

Brightness of the surrounding when lighting

Lighting delay

Delay of turning light off

⁽²⁾

OLD

Old logic

6 sec.

3 sec.

CURRENT

New logic⁽¹⁾ ('97/8)

15 sec.

⁽¹⁾	The new system has the ability to light up two times brighter than the old system.

⁽²⁾	Delay time until the headlight is turned on when the outside suddenly gets dark.

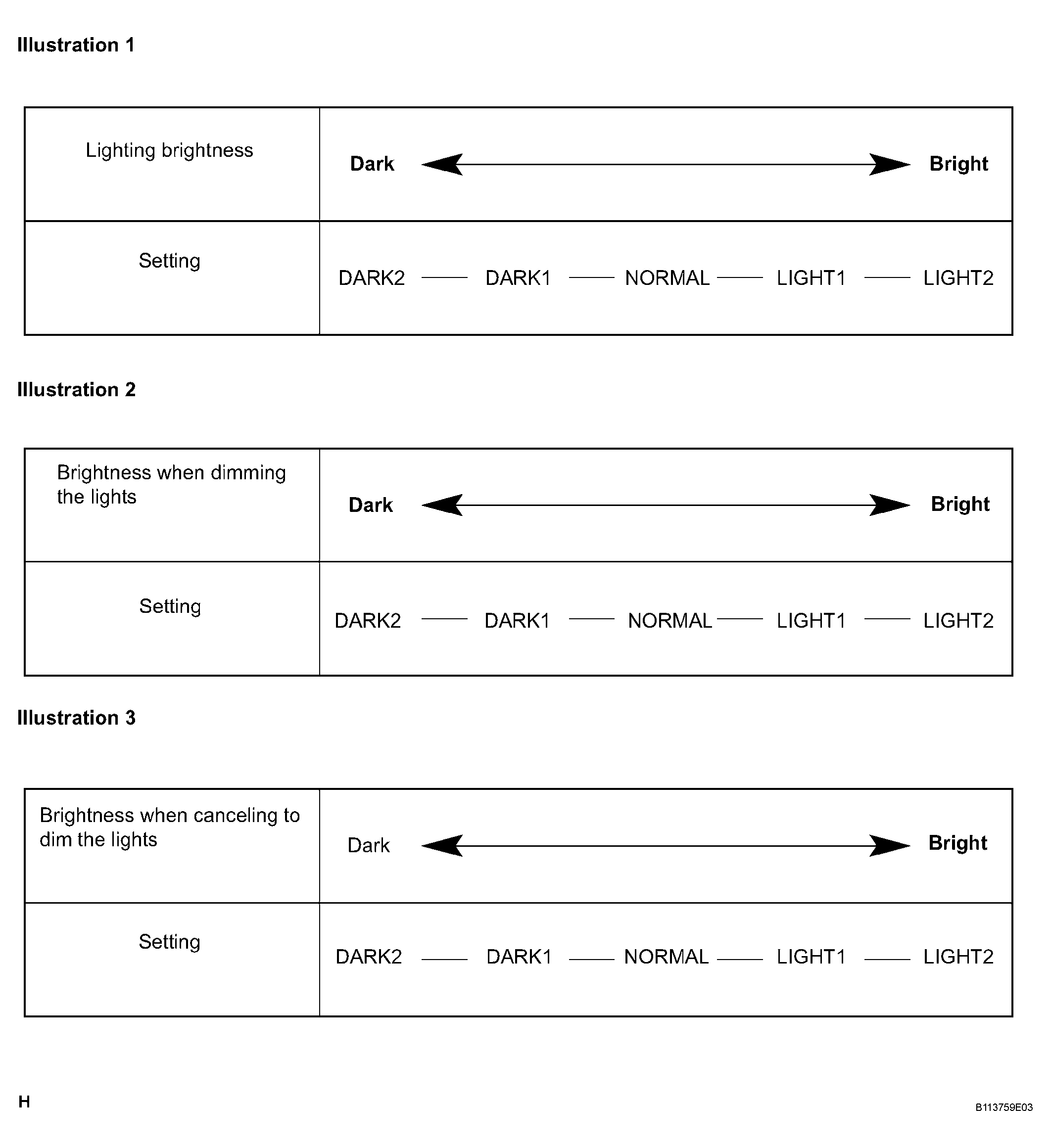

Fig 1: Illumination Chart
