License Plate Light Assembly: Components

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

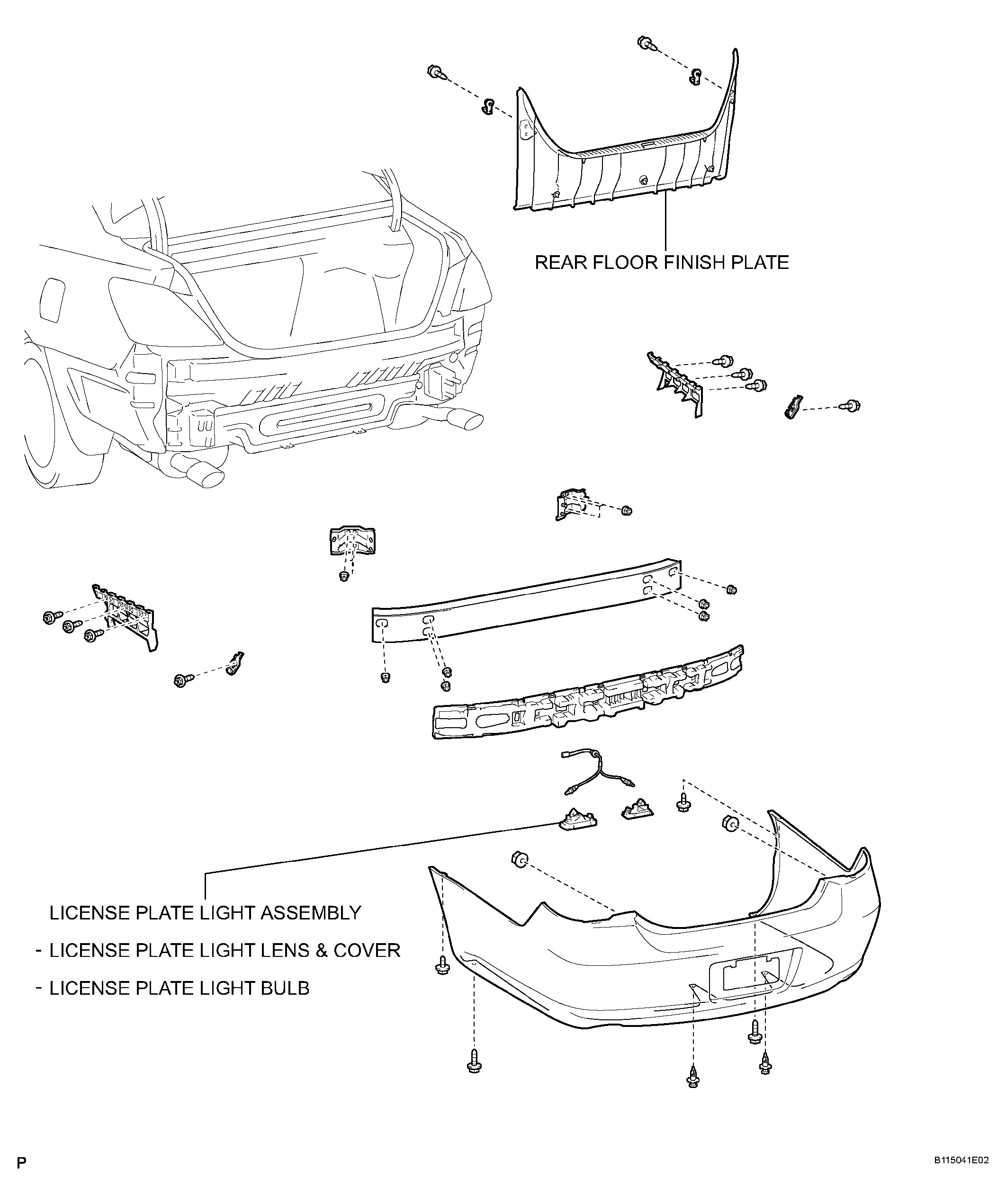

Fig 1: Identifying License Plate Light Assembly Component
G04379072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
