Height Control Sensor: Removal

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE HEIGHT CONTROL SENSOR SUBASSEMBLY REAR RH
1. Disconnect the connector.
2. Place matchmarks with the one on the height control sensor sub-assembly rear RH and bracket.

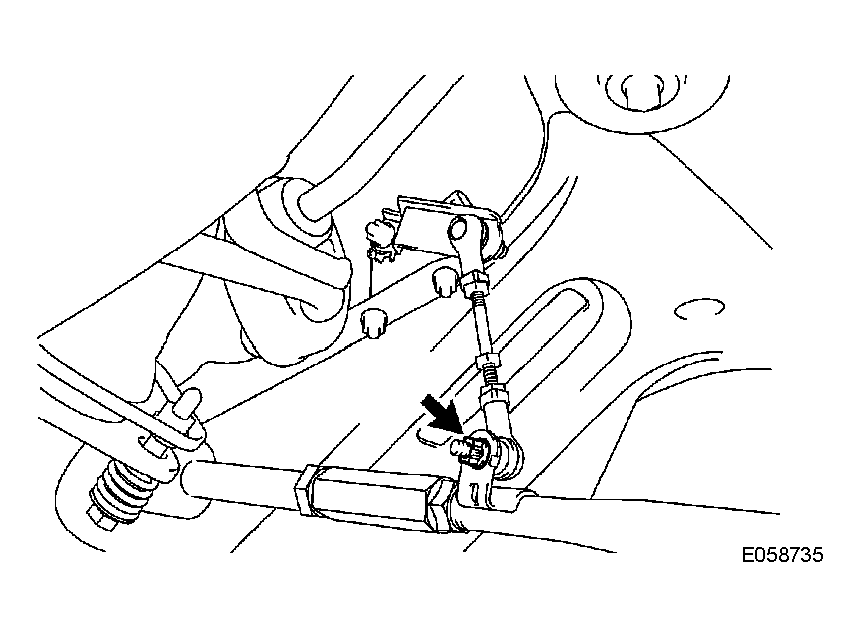

3. Remove a nut.

  Fig 1: Removing Height Control Sensor Subassembly Rear RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

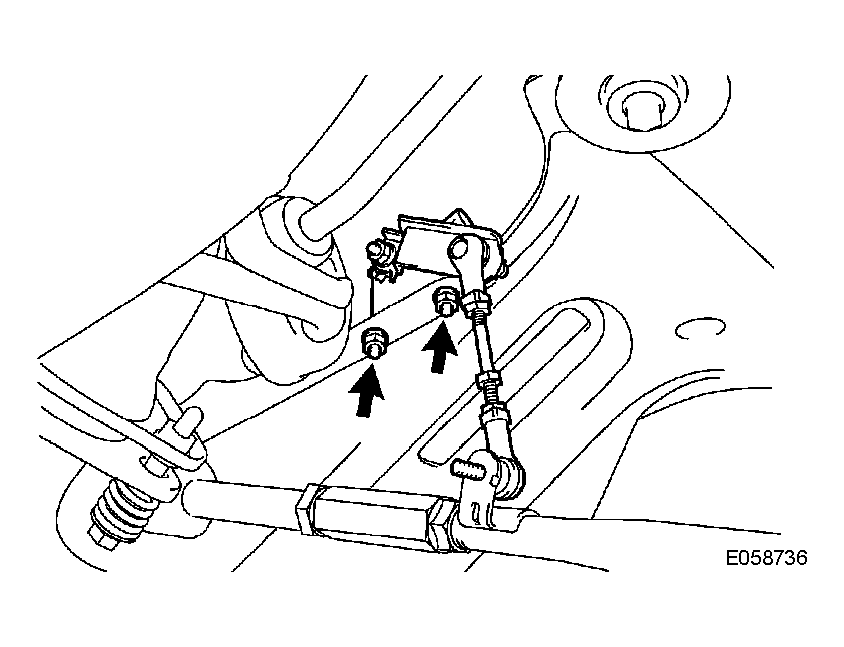

4. Remove the 2 nuts and height control sensor subassembly rear RH.

  Fig 2: Removing Nuts And Height Control Sensor Subassembly Rear RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
