Headlight Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

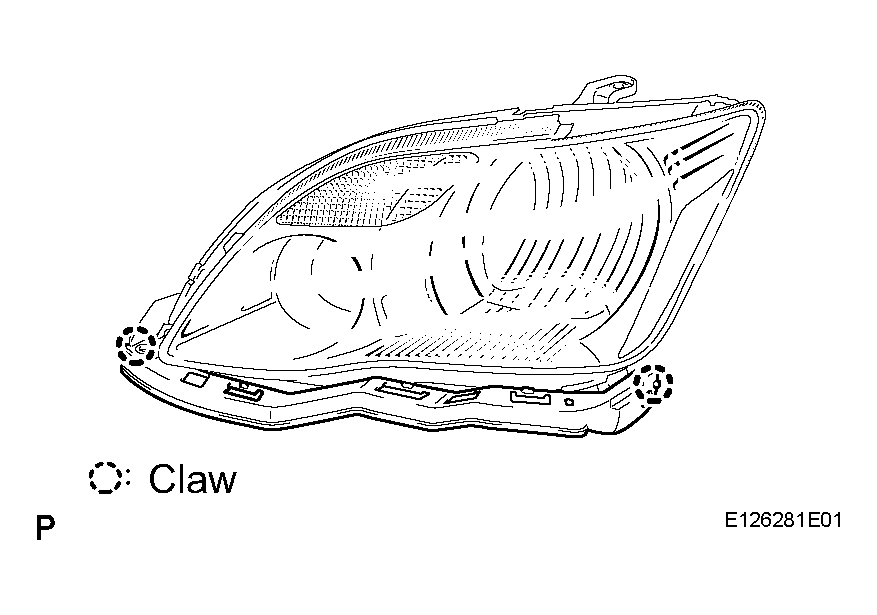

REMOVE HEADLIGHT BRACKET LH
1. Disengage the 2 claws and the headlight bracket LH.

  Fig 1: Disengaging Claws And Headlight Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

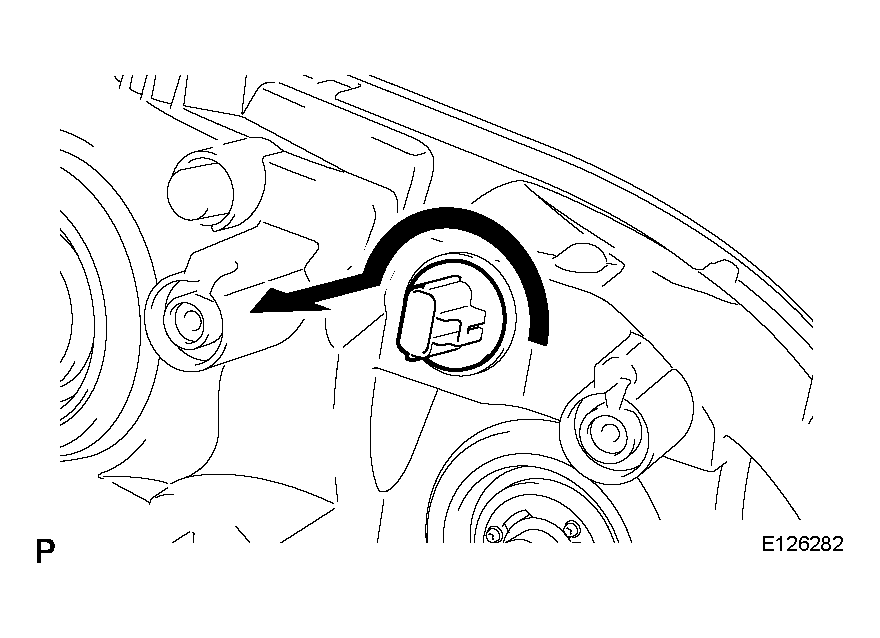

REMOVE FRONT TURN SIGNAL LIGHT BULB
1. Turn the socket plug assembly and the front turn signal light bulb in the direction indicated by the arrow and remove as a unit.

  Fig 2: Removing Front Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

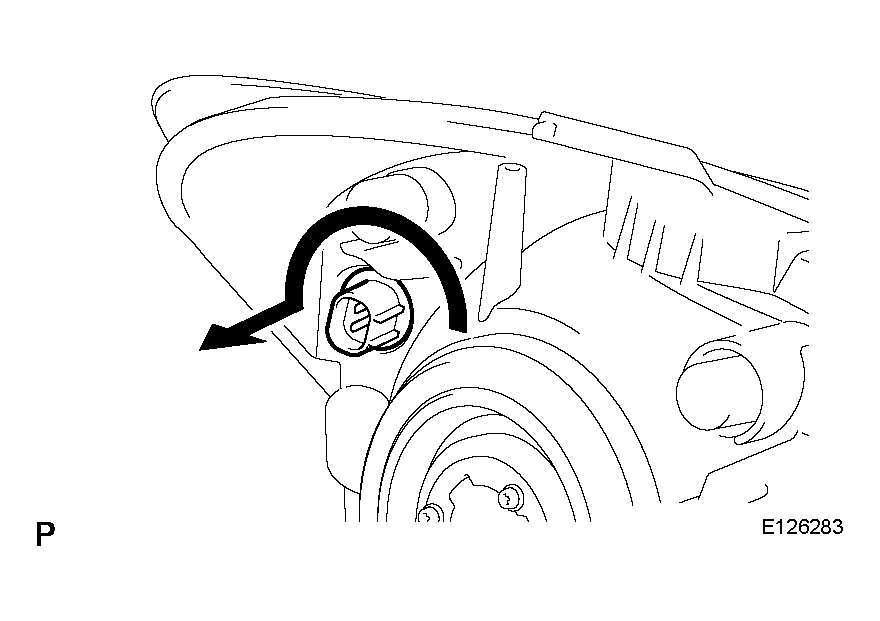

REMOVE CLEARANCE LIGHT BULB
1. Turn the socket plug assembly and the front clearance light bulb in the direction indicated by the arrow and remove as a unit.

  Fig 3: Removing Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

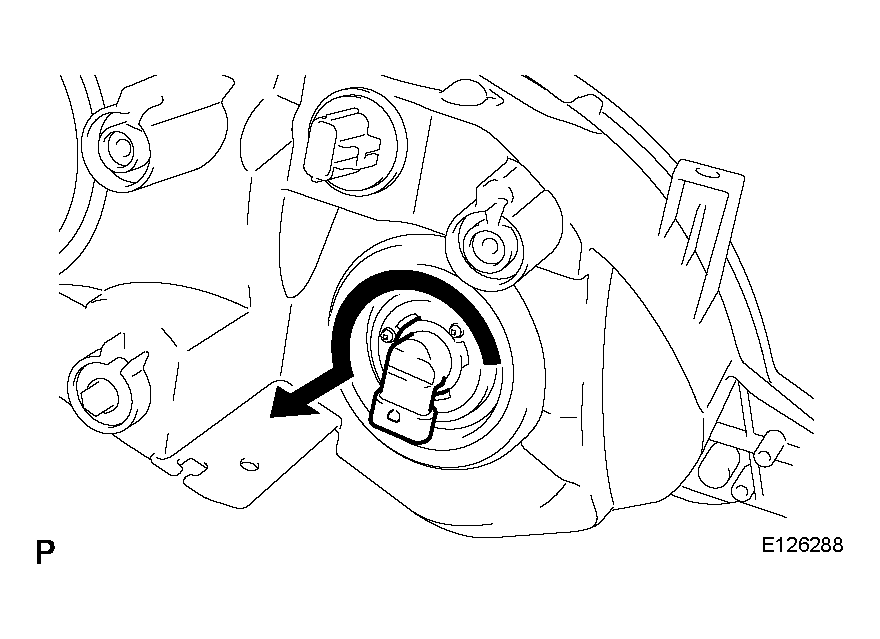

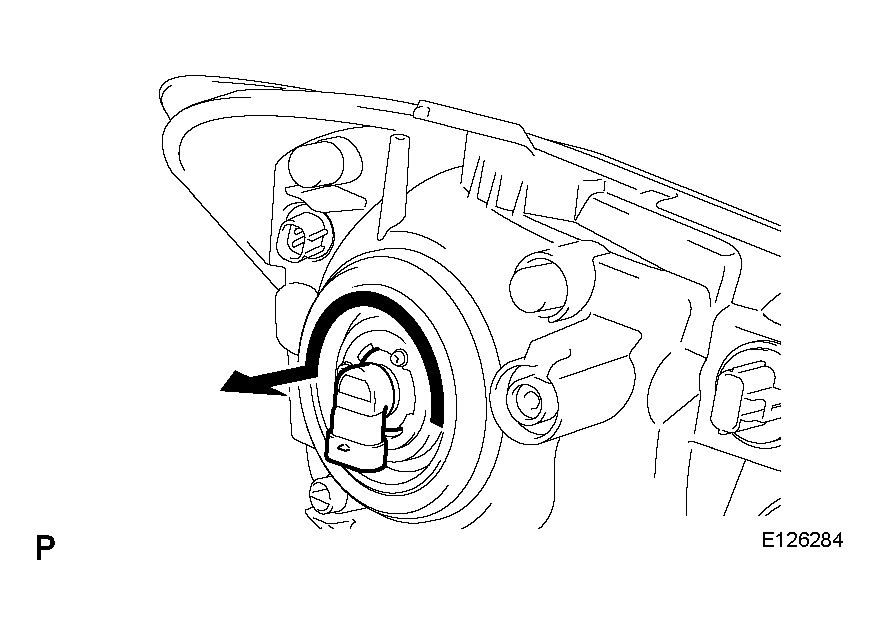

REMOVE HEADLIGHT NO. 1 BULB
1. Turn headlight bulb No. 1 in the direction indicated by the arrow and remove it.

  Fig 4: Removing Headlight No. 1 Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISCHARGE HEADLIGHT BULB

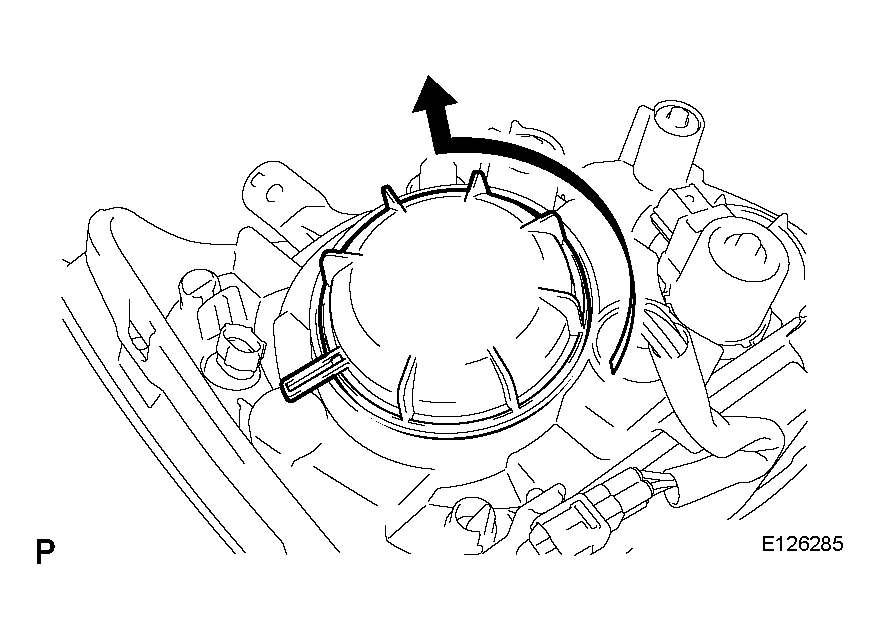

1. Turn headlight back cover No. 1 in the direction indicated by the arrow and remove it.

  Fig 5: Turning Headlight Back Cover No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

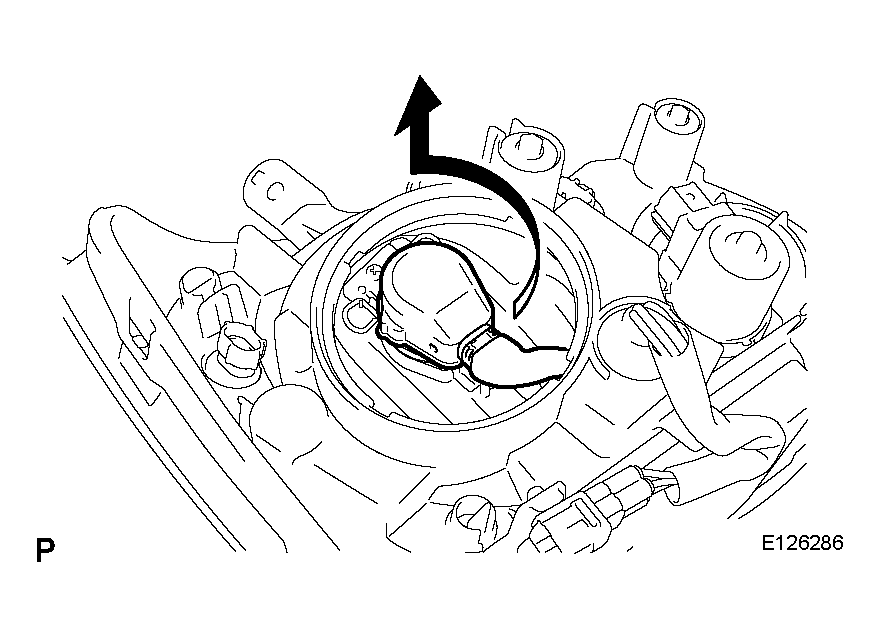

2. Turn the discharge headlight bulb socket in the direction indicated by the arrow and remove the locking cap.

  Fig 6: Turning Discharge Headlight Bulb Socket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

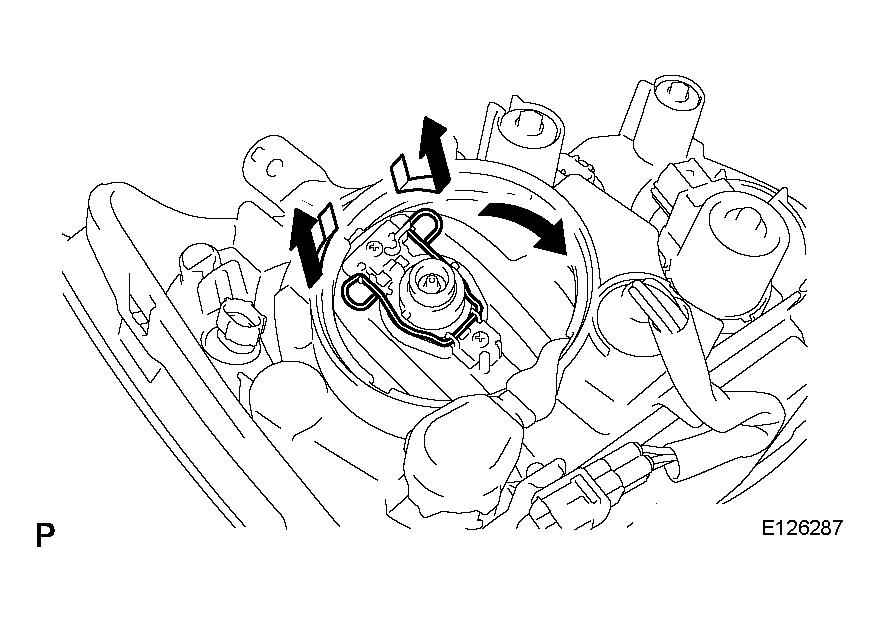

3. Release the set spring lock as shown in Fig 7 and remove the discharge headlight bulb.

  Fig 7: Setting Spring Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

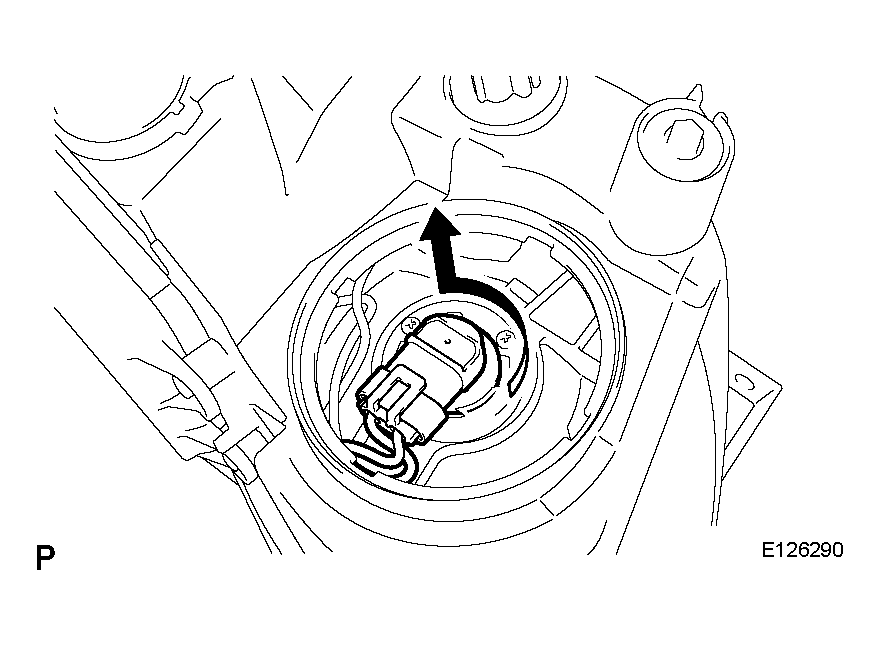

REMOVE HEADLIGHT NO. 2 BULB
1. Turn headlight bulb No. 2 in the direction indicated by the arrow and remove it.

  Fig 8: Turning Headlight Bulb No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLIGHT NO. 2 BULB

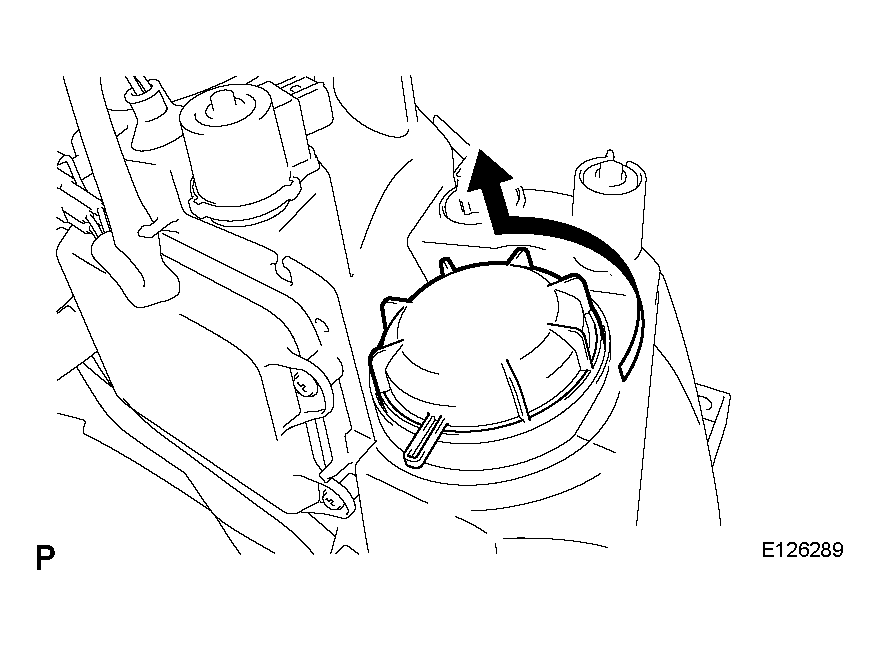

1. Turn headlight back cover No. 1 in the direction indicated by the arrow and remove it.

  Fig 9: Turning Headlight Back Cover No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn headlight No. 2 bulb in the direction indicated by the arrow and remove it.

  Fig 10: Turning Headlight No. 2 Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLIGHT LEVELING ECU ASSEMBLY

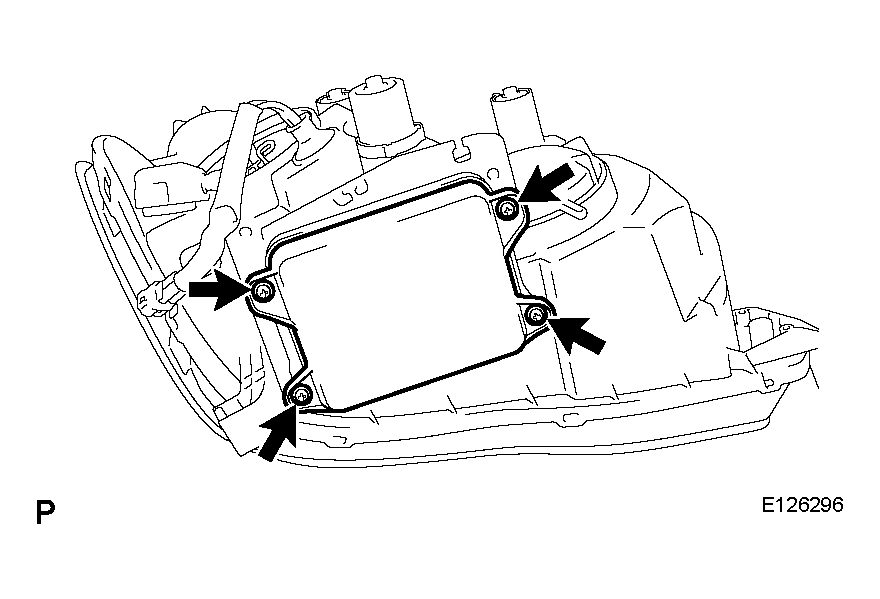

1. Remove the 4 screws and headlight cover No. 1.

  Fig 11: Removing Screws And Headlight Cover No. 1.
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

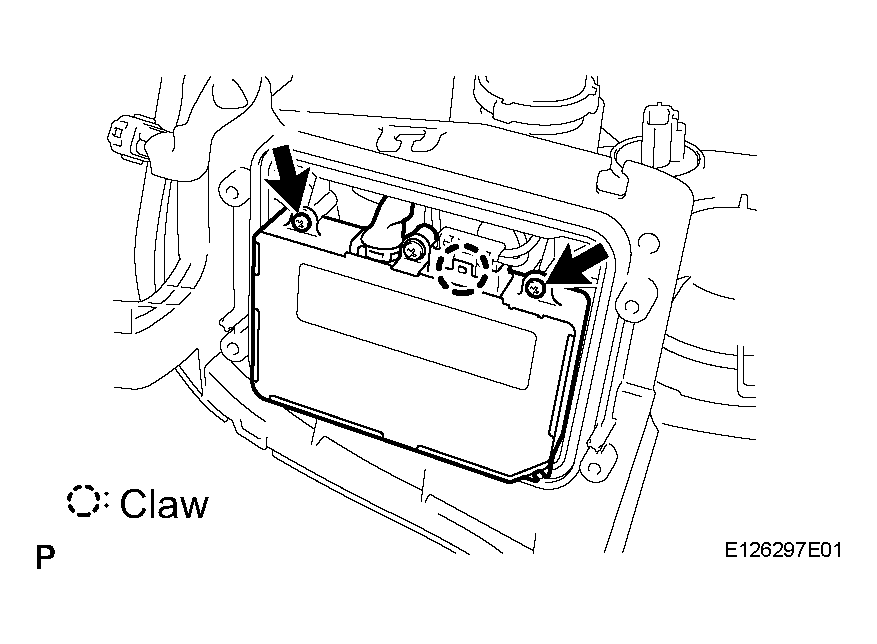

2. Remove the 2 screws.
3. Disengage the claw, disconnect the connector and remove the headlight leveling ECU assembly.

  Fig 12: Disengaging Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

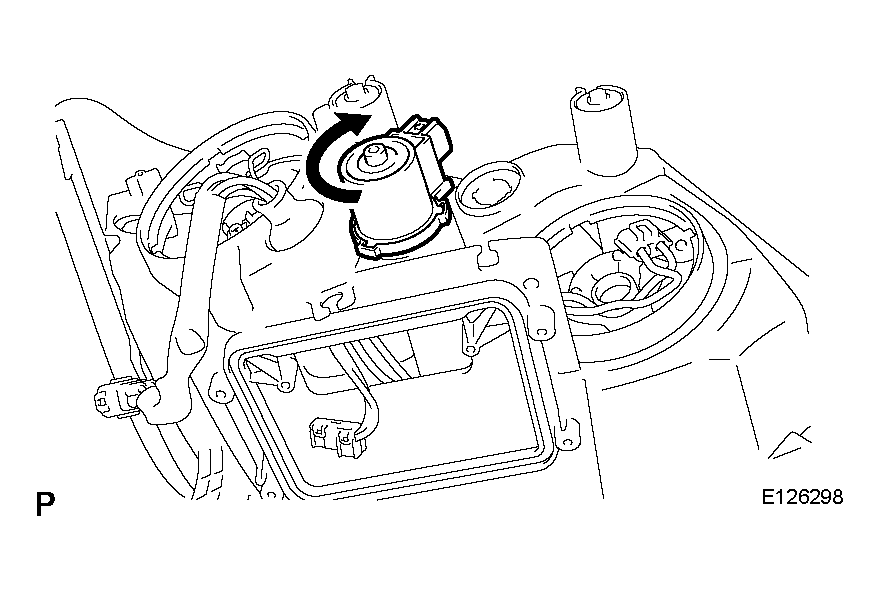

REMOVE HEADLIGHT LEVELING MOTOR LH
1. Turn the headlight leveling motor to align the recessed parts with the headlight unit LH.

  Fig 13: Aligning Headlight Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

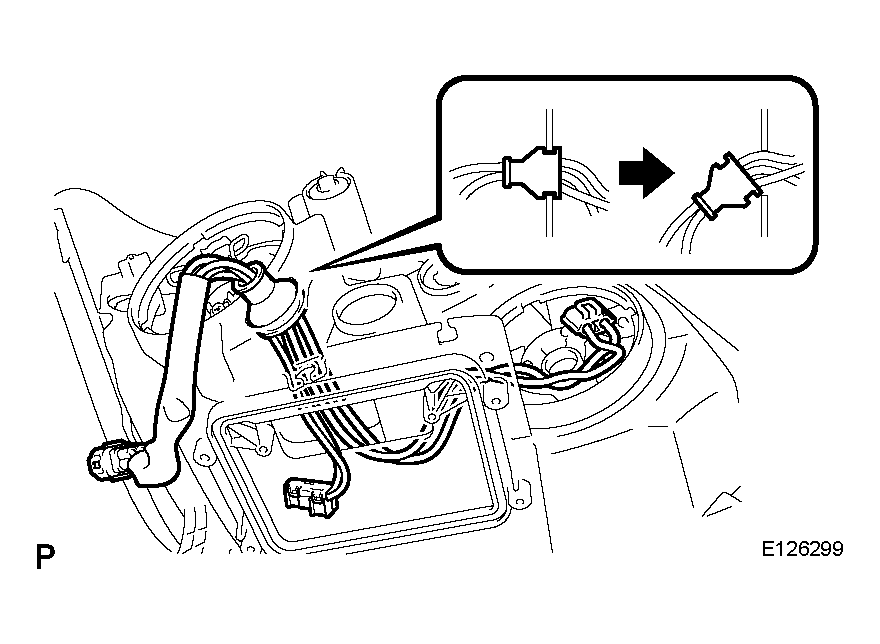

REMOVE HEADLIGHT SOCKET & WIRE
1. Remove the headlight socket & wire.

  Fig 14: Removing Headlight Socket And Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
