Fog Light Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FOG LIGHT BRACKET
1. Disengage the 4 claws and fog light bracket LH.

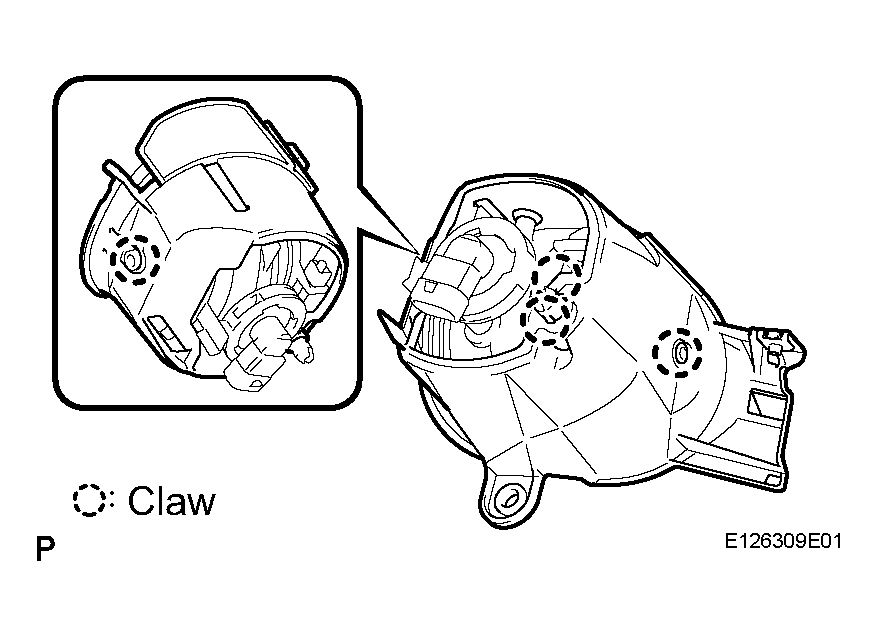

  Fig 1: Removing Fog Light Bracket LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FOG LIGHT BULB
1. Turn the fog light bulb in the direction indicated by the arrow and remove it.

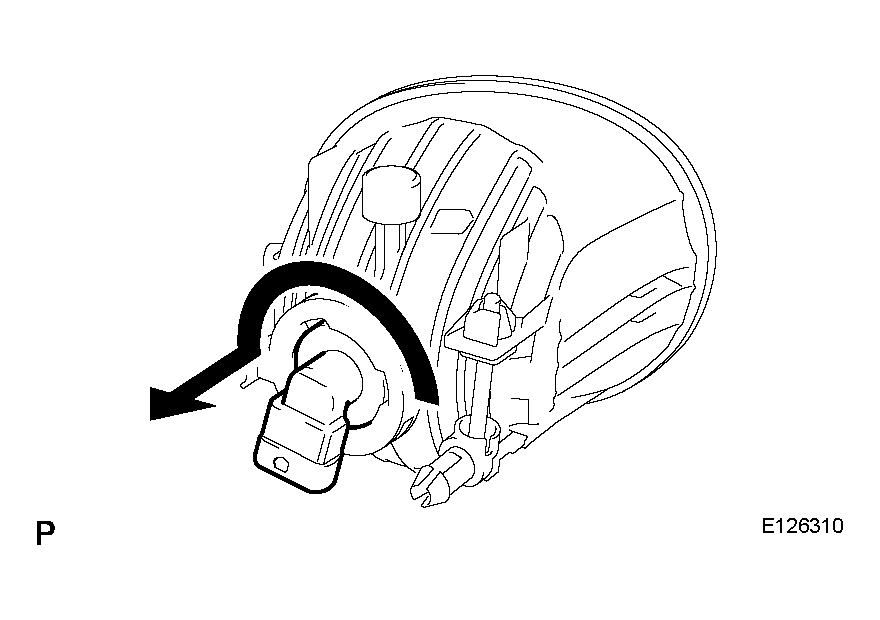

  Fig 2: Turning Fog Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
