Back-Up Light Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE ELECTRICAL KEY SWITCH
    1. Remove the screw and the luggage electrical key switch.
      Fig 1: Removing Luggage Electrical Key Switch
      G04379070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BACK-UP LIGHT SOCKET & WIRE
    1. Remove the rear light socket & wire as shown in Fig 2.

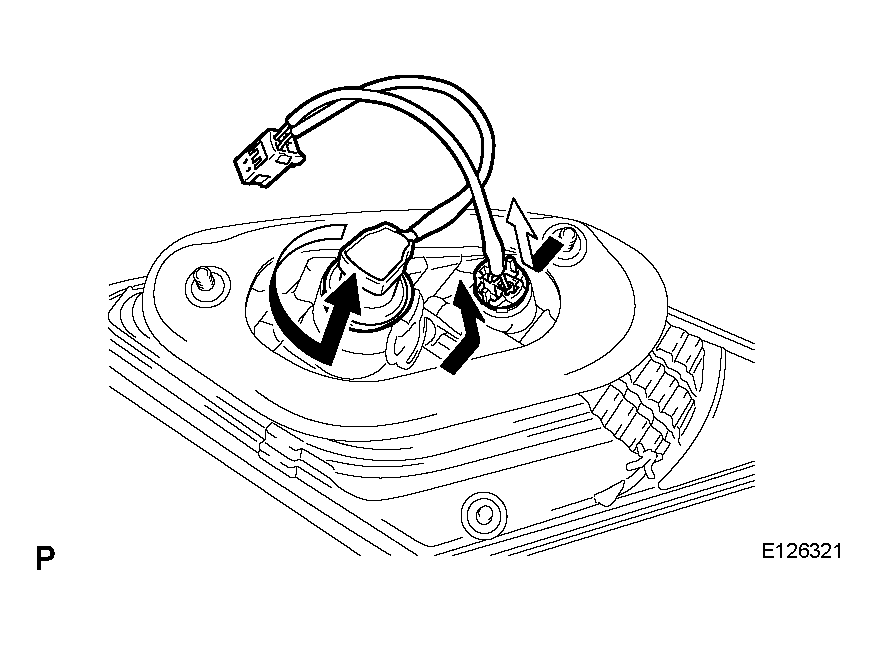

      Fig 2: Removing Back-Up Light Socket And Wire
      G04379071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BACK-UP LIGHT BULB
  4. REMOVE BACK-UP LIGHT LH GASKET
