Engine Control System (3MZ-FE)
>>
SFI System
>>
Parts Location
Parts Location

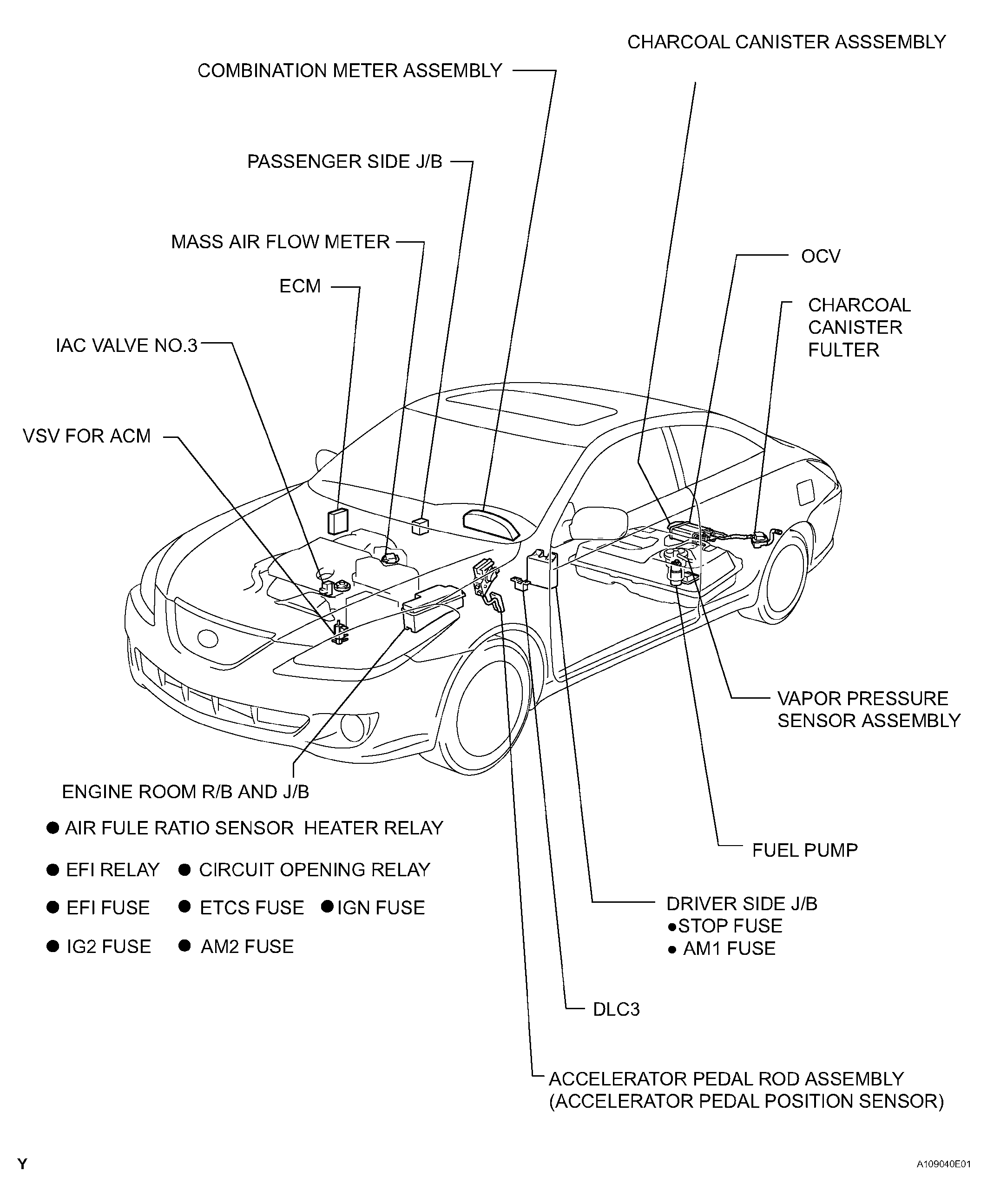

Fig 1: Identifying SFI System Parts Location (2GR-FE - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

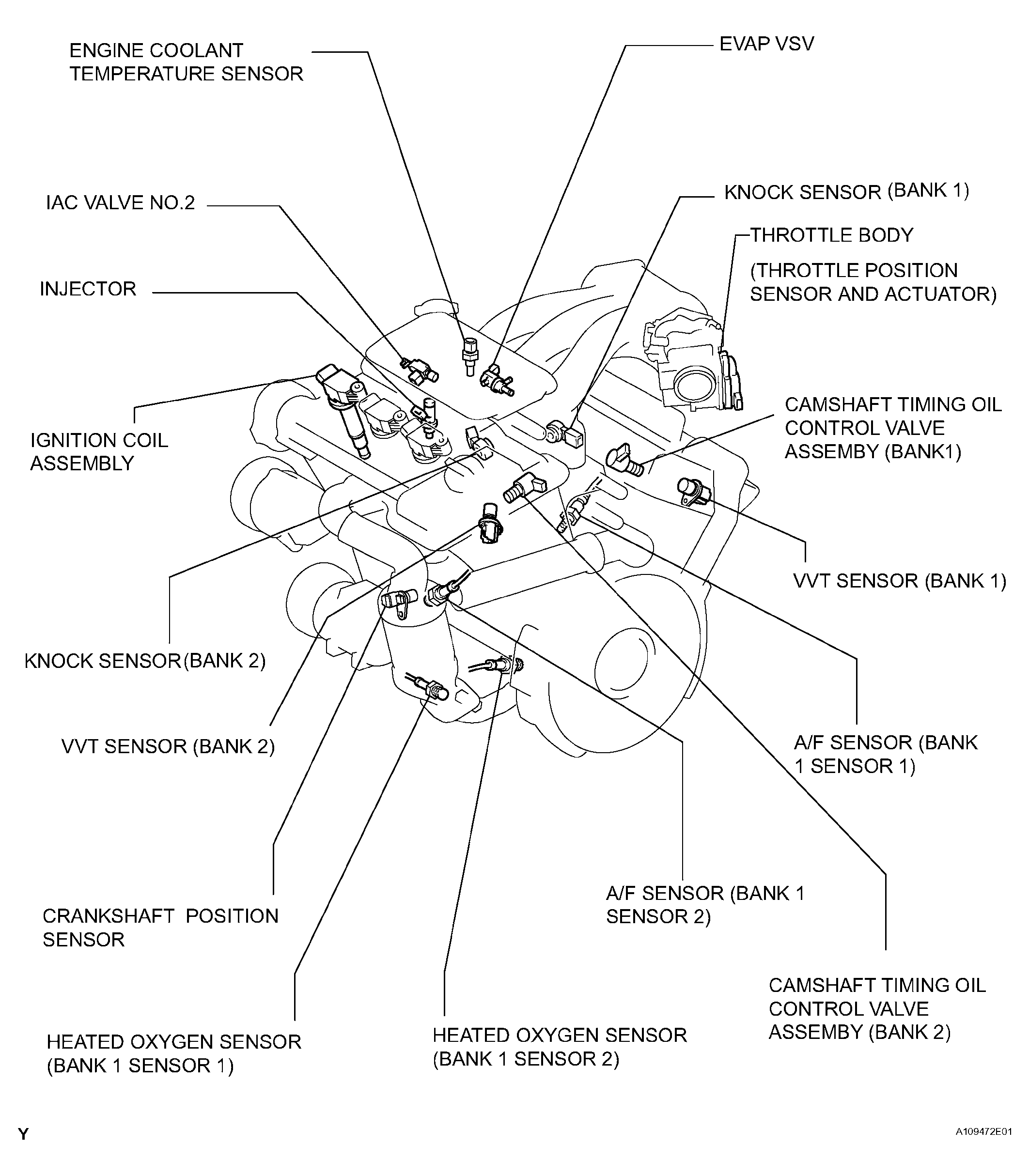

Fig 2: Identifying SFI System Parts Location (2GR-FE - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
