Fuel Tank: Components

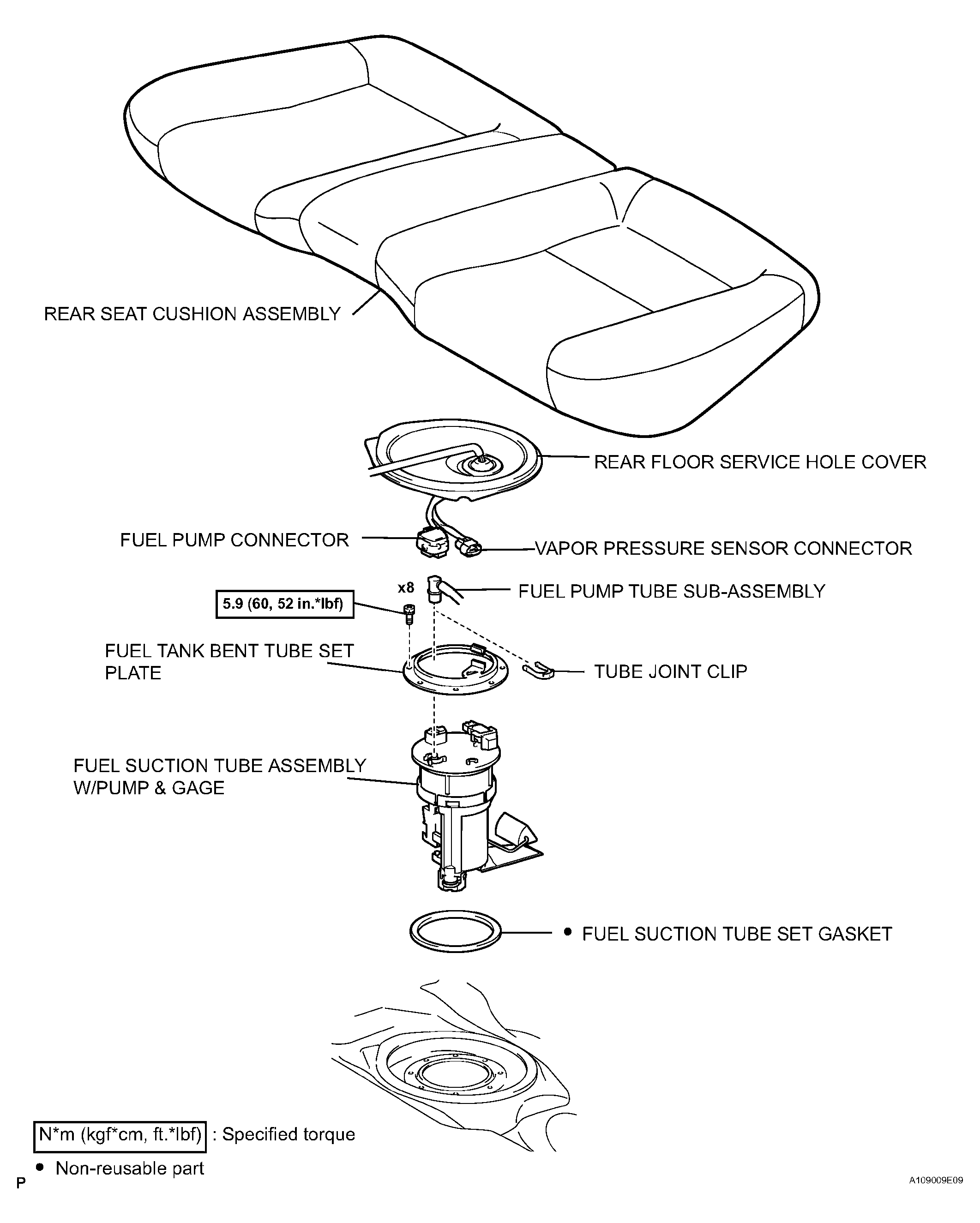

Fig 1: Identifying Fuel Tank Components (1 Of 3)
G04383618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

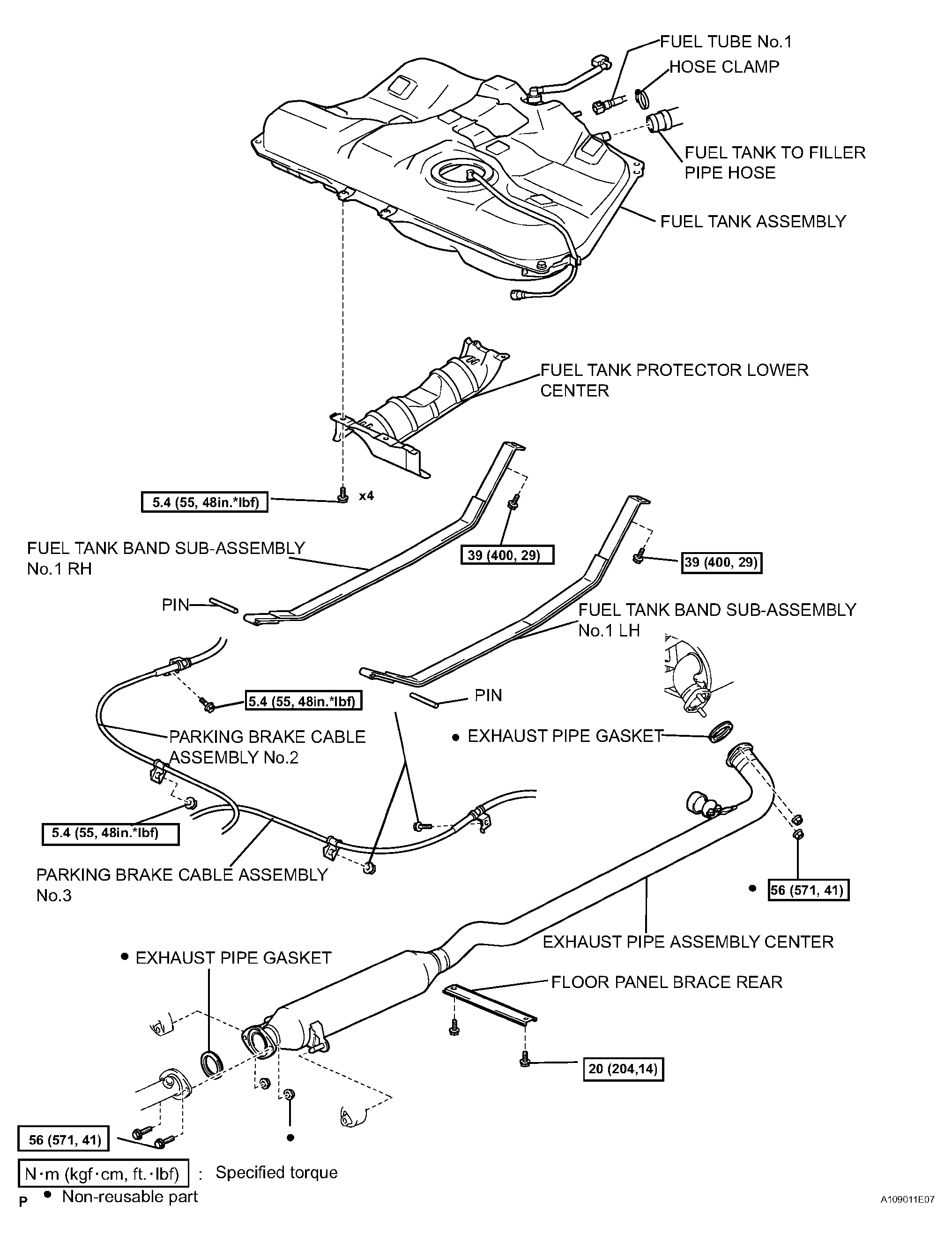

Fig 2: Identifying Fuel Tank Components (2 Of 3)
G04383619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

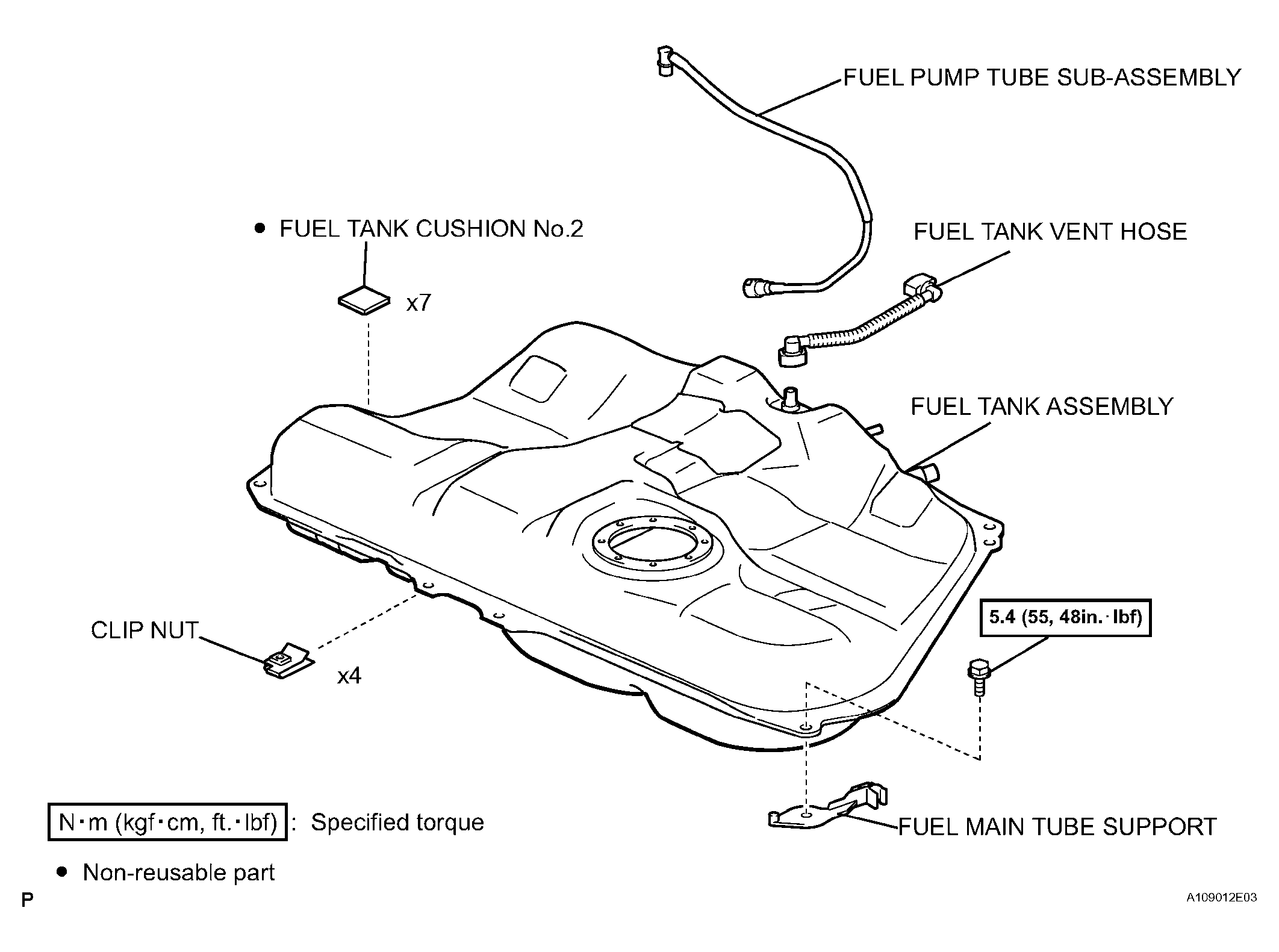

Fig 3: Identifying Fuel Tank Components (3 Of 3)
G04383620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
