System Diagram

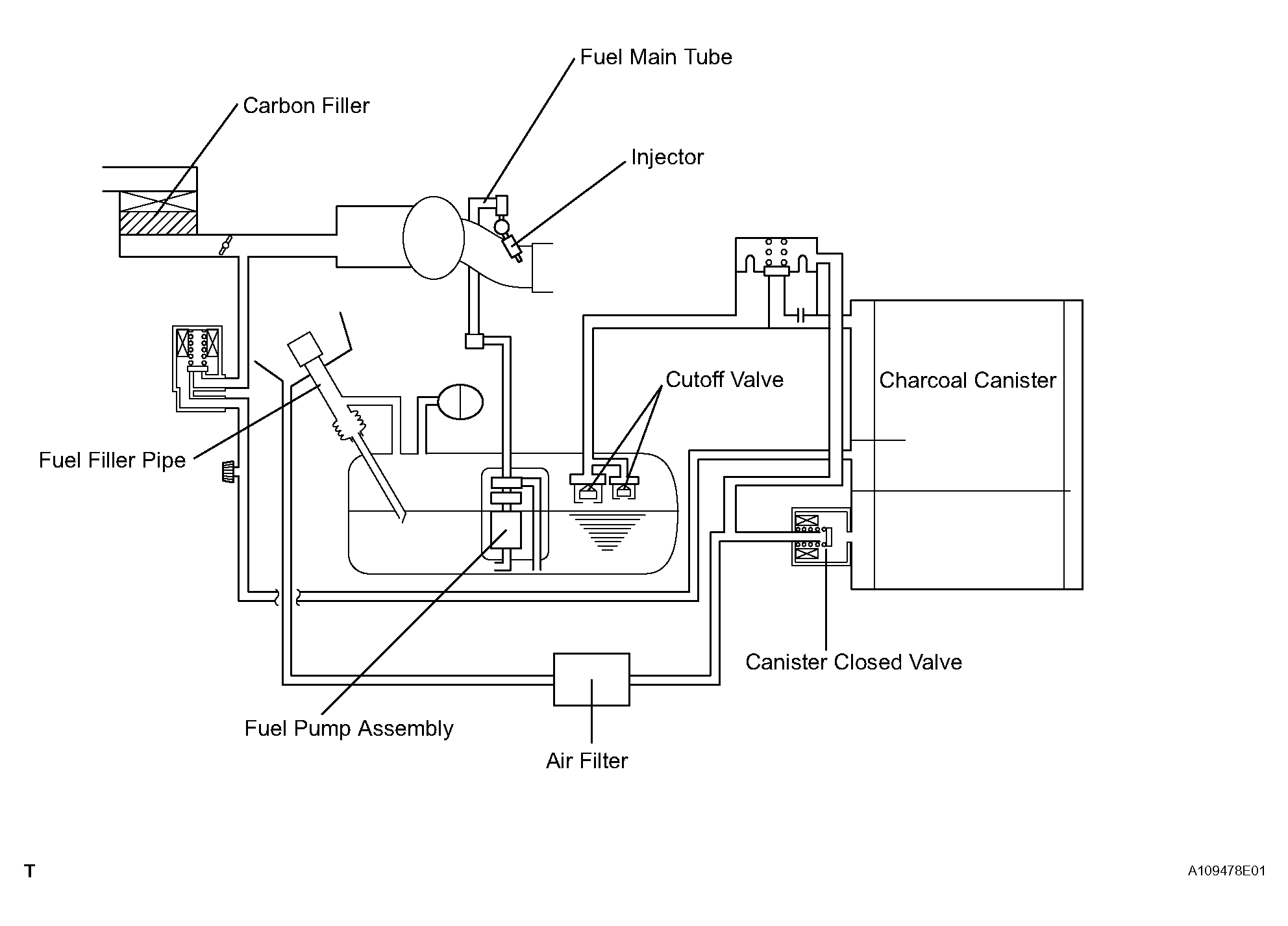

Fig 1: Identifying Fuel System Diagram (1 Of 2)
G04383569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The fuel system is controlled by the ECM based on intake air flow amount.

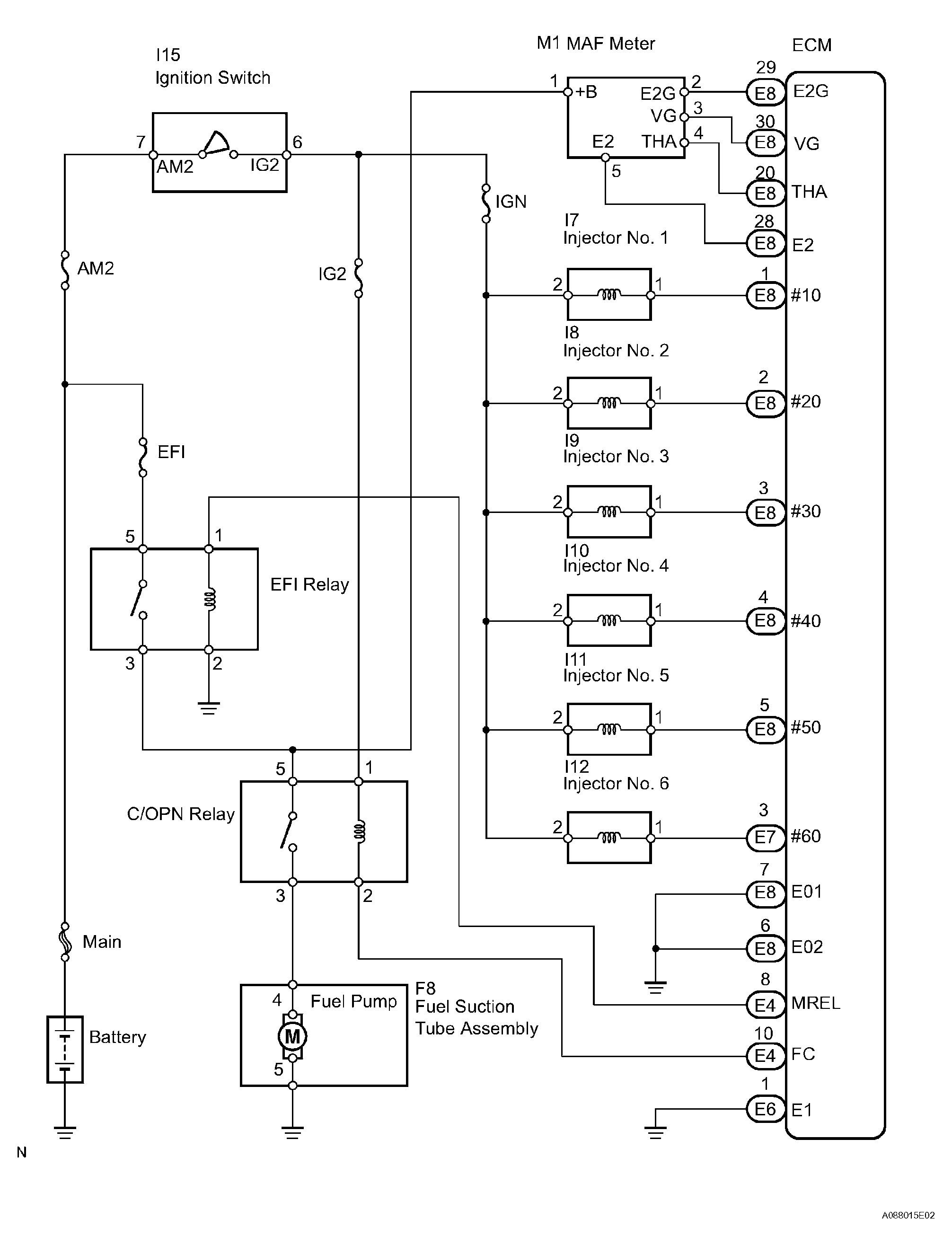

Fig 2: Identifying Fuel System Diagram (2 Of 2)
G04383570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
