Fuel Injector: Components

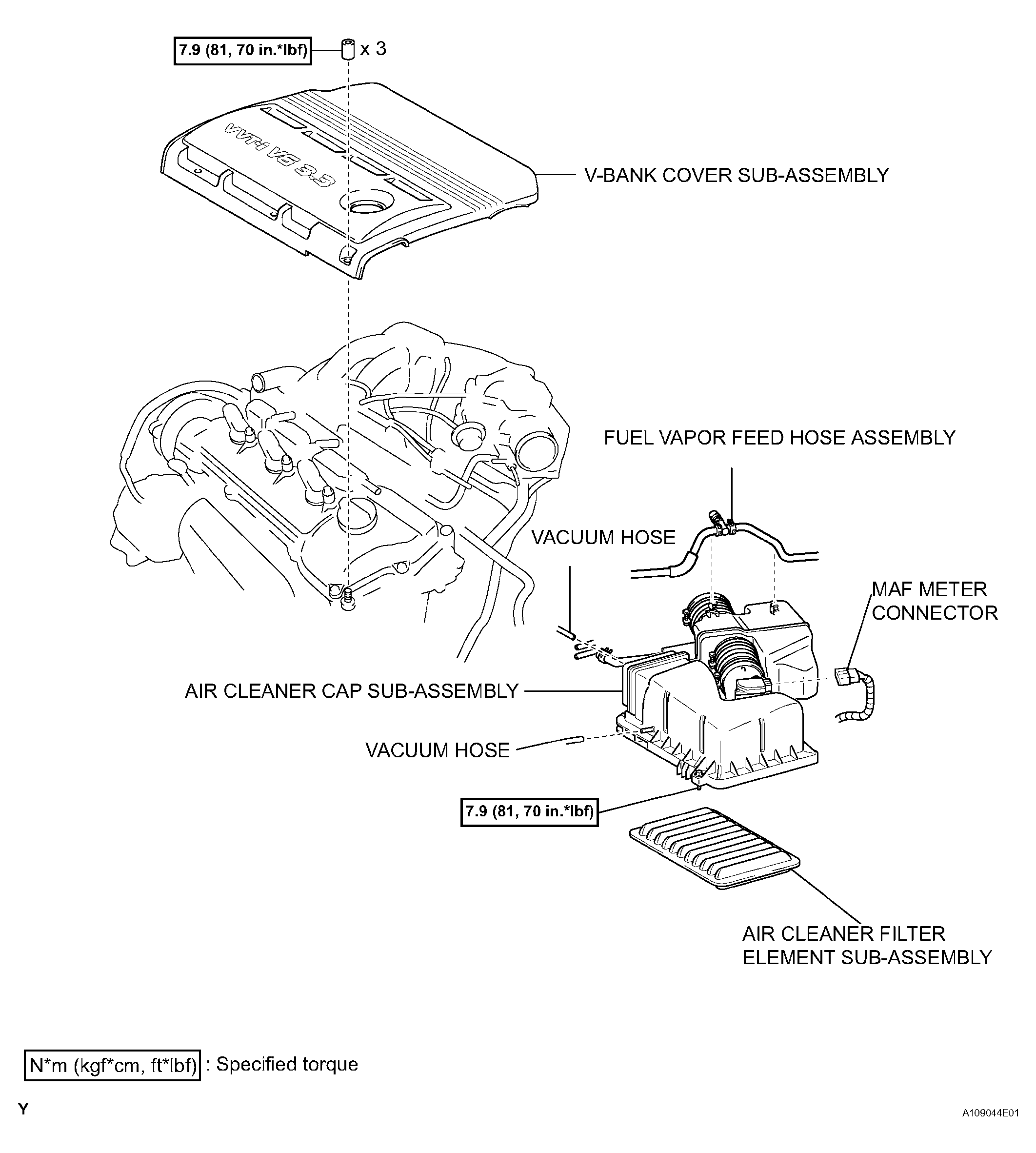

Fig 1: Identifying Fuel Injector Components (1 Of 3)
G04383576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

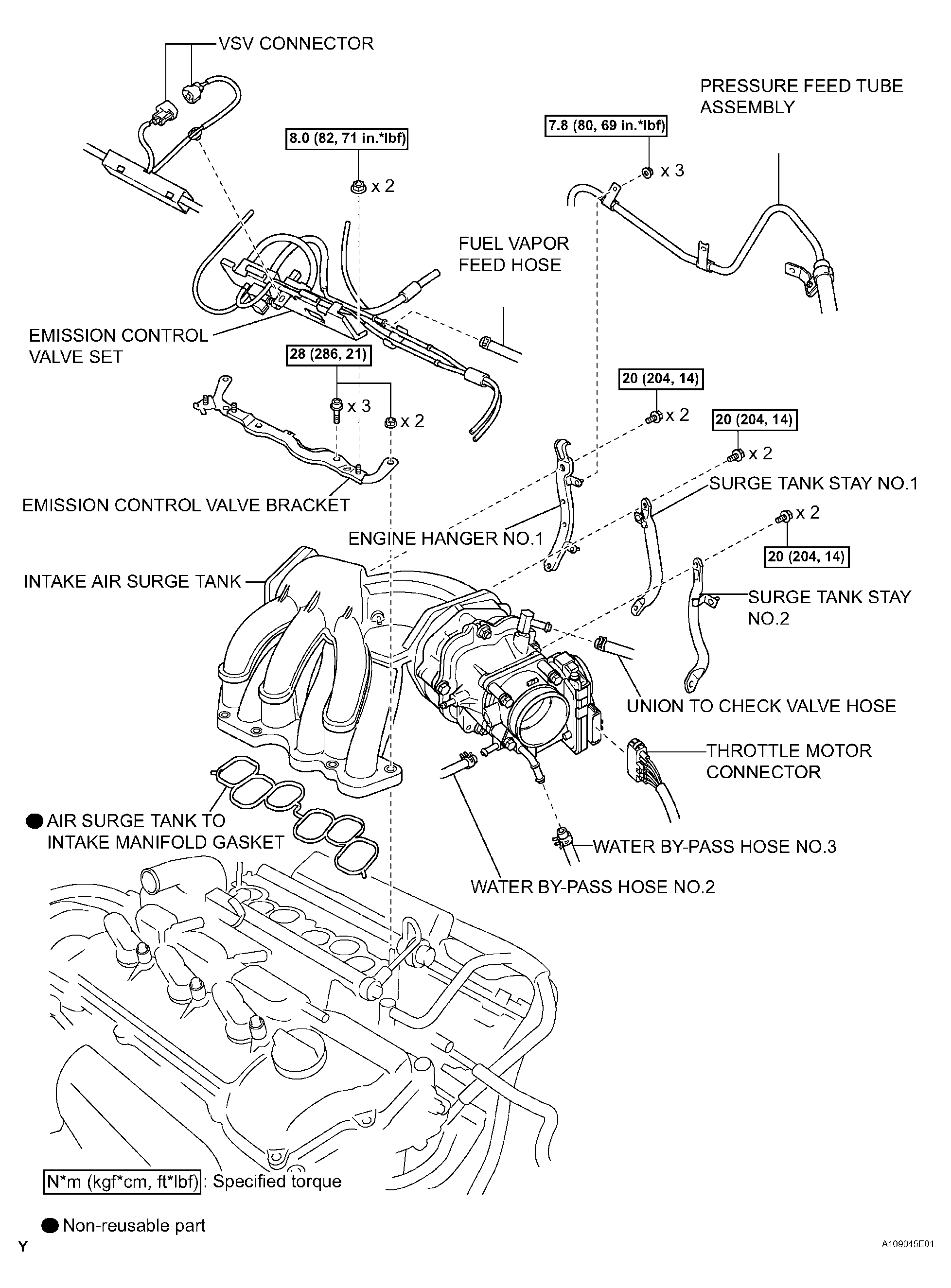

Fig 2: Identifying Fuel Injector Components (2 Of 3)
G04383577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

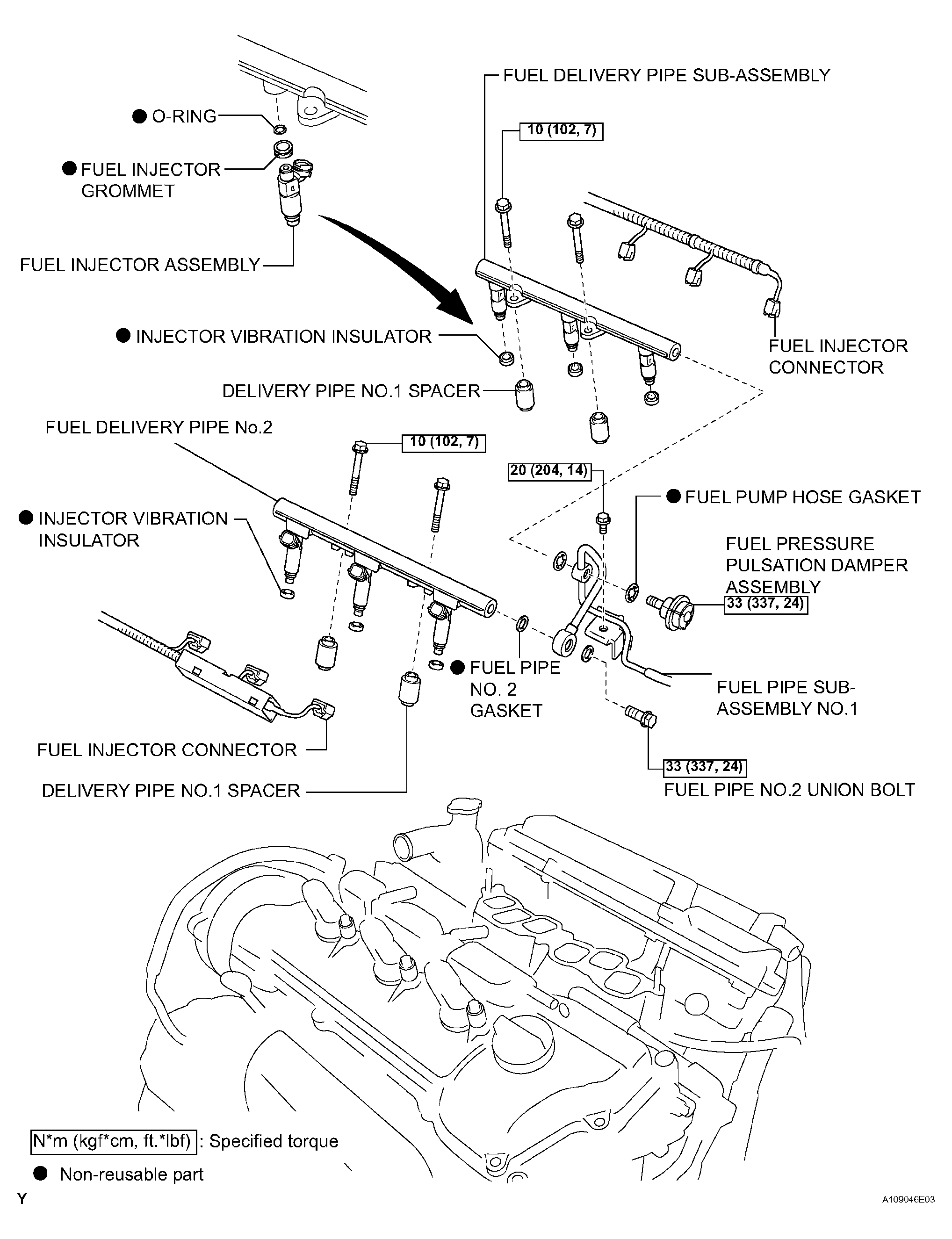

Fig 3: Identifying Fuel Injector Components (3 Of 3)
G04383578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
