Intake Air Control Valve: Removal

  1. REMOVE INTAKE AIR CONTROL VALVE ASSEMBLY NO. 2
    1. Remove the 3 bolts and nut.
    2. Rotate the lever to the closed position as shown in the illustration and pull out the IAC valve.
    3. Remove the gasket from the intake air surge tank.

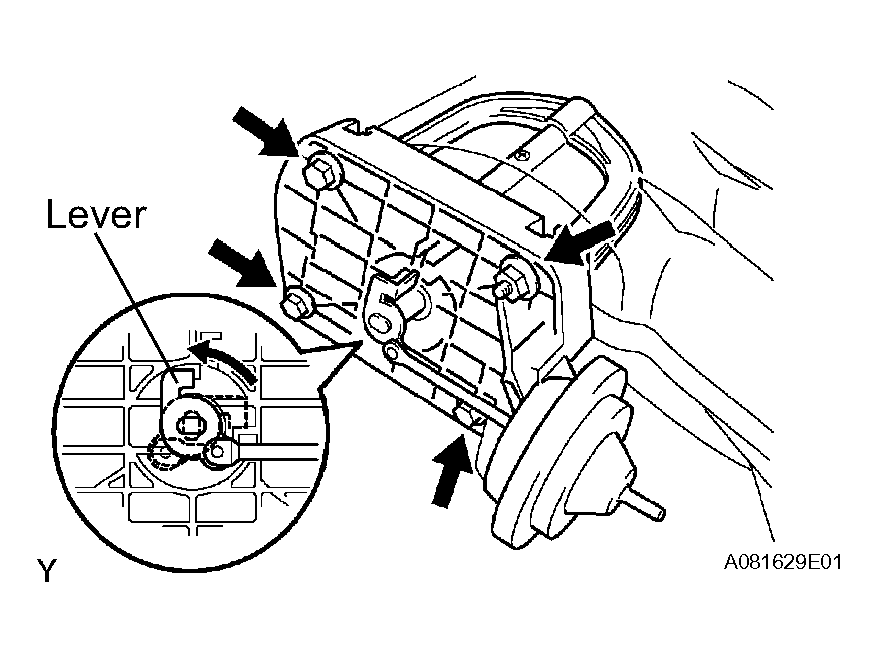

      Fig 1: Removing 3 Bolts And Nut
      G04383746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
