Wiper and Washer: Notes

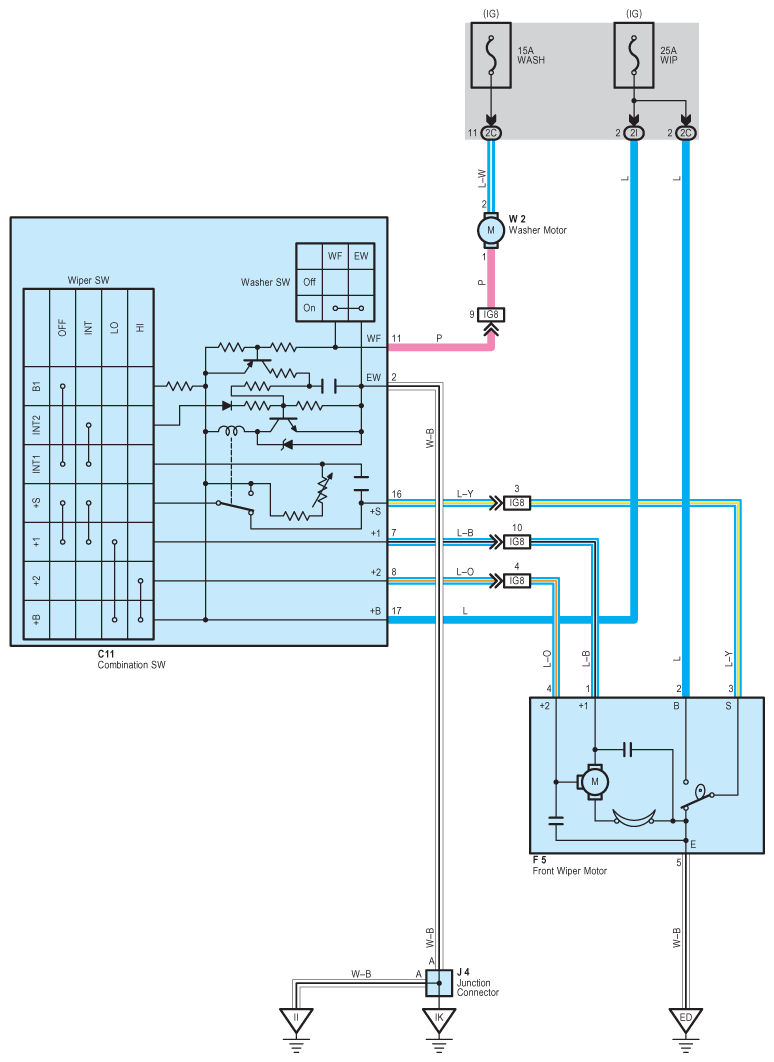

Fig 1: Wiper And Washer System Wiring Diagram

G08788035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
