VSC and Tire Pressure Warning System: Notes

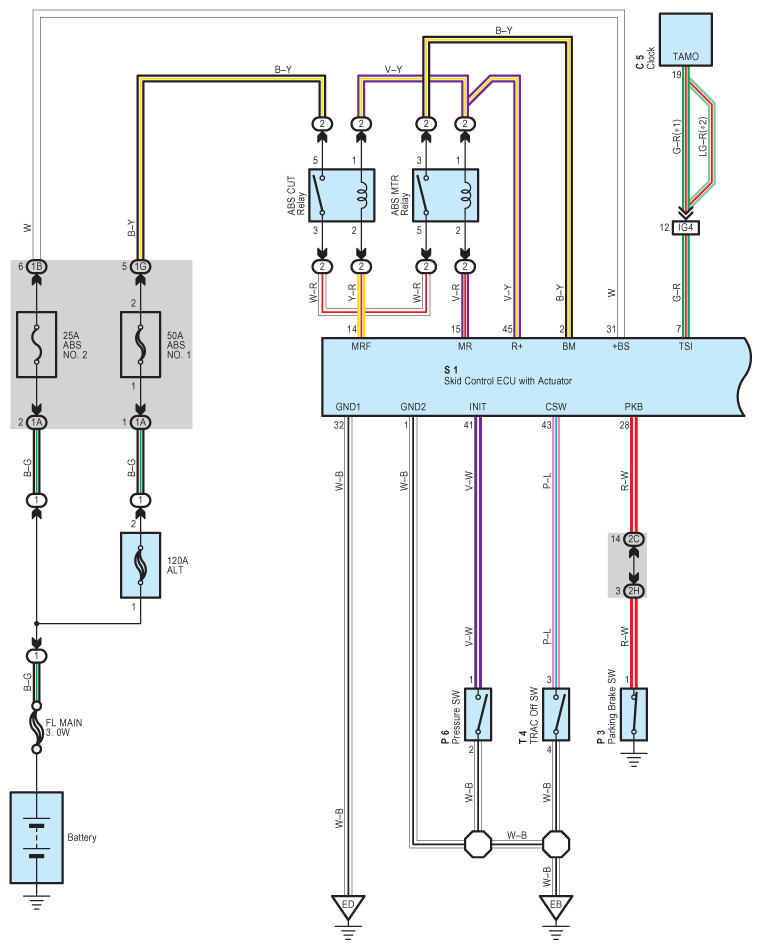

Fig 1: VSC And Tire Pressure Warning System Wiring Diagram (1 Of 5)
G08787993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

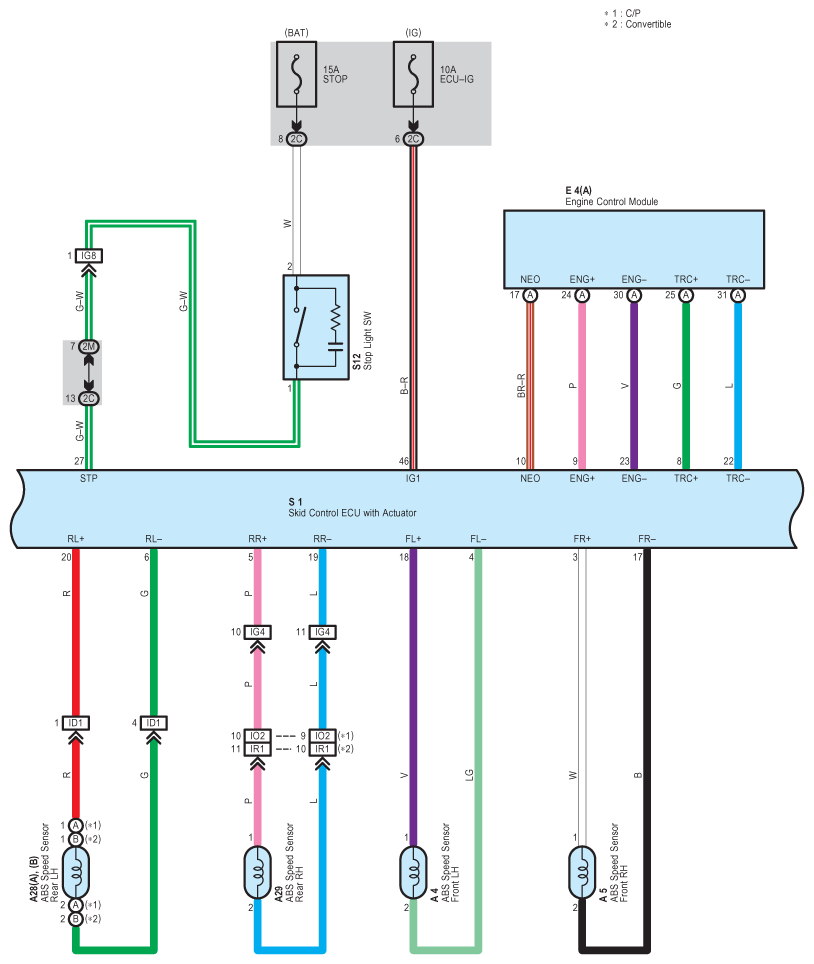

Fig 2: VSC And Tire Pressure Warning System Wiring Diagram (2 Of 5)
G08787994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

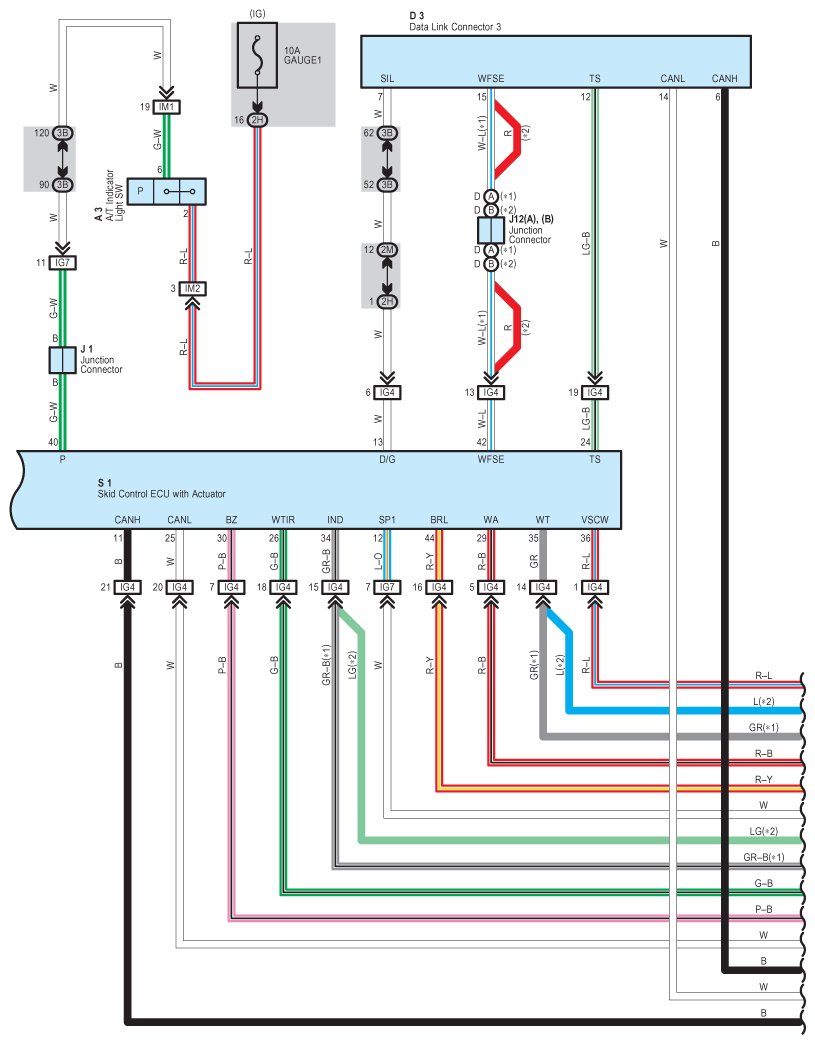

Fig 3: VSC And Tire Pressure Warning System Wiring Diagram (3 Of 5)
G08787995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

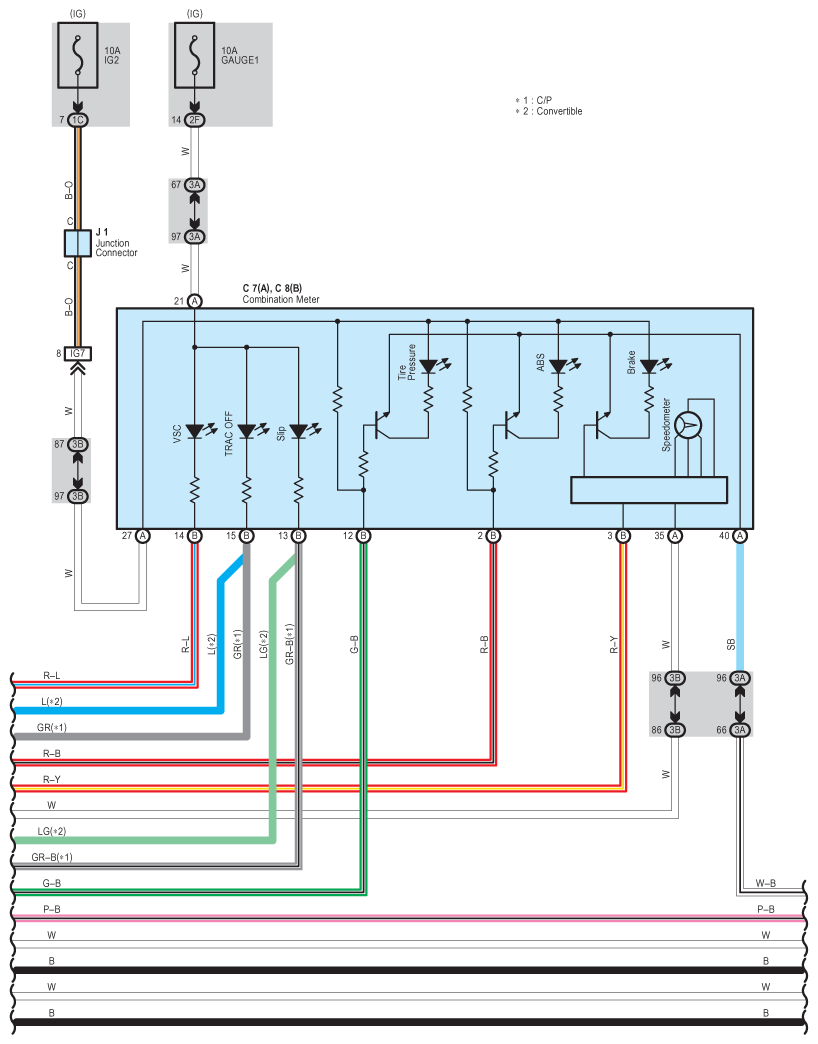

Fig 4: VSC And Tire Pressure Warning System Wiring Diagram (4 Of 5)
G08787996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

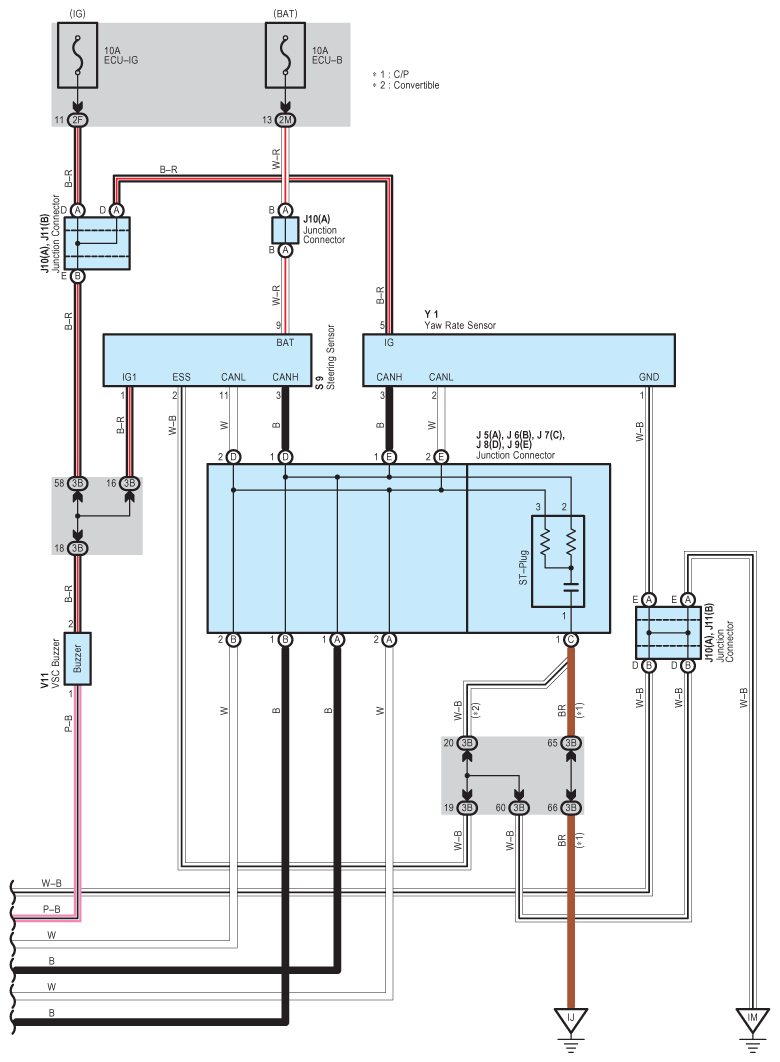

Fig 5: VSC And Tire Pressure Warning System Wiring Diagram (5 Of 5)
G08787997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
