Power Window for Coupe: Notes

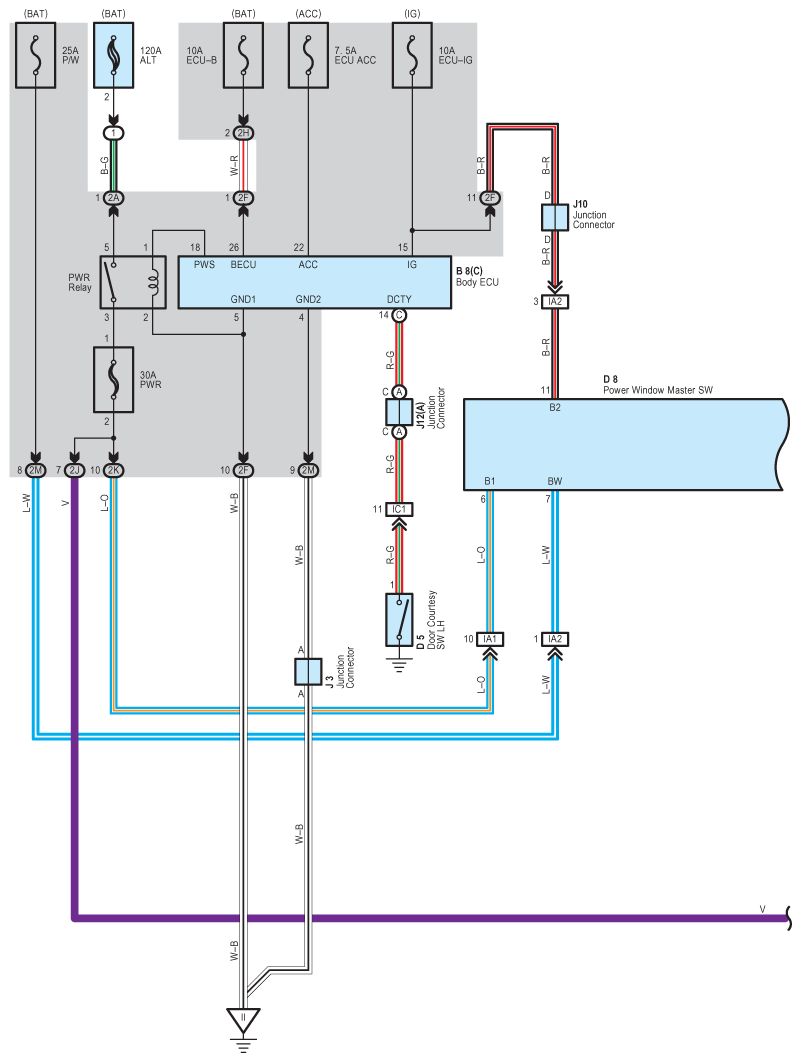

Fig 1: Power Window System Wiring Diagram & Coupe (1 Of 2)
G08787987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

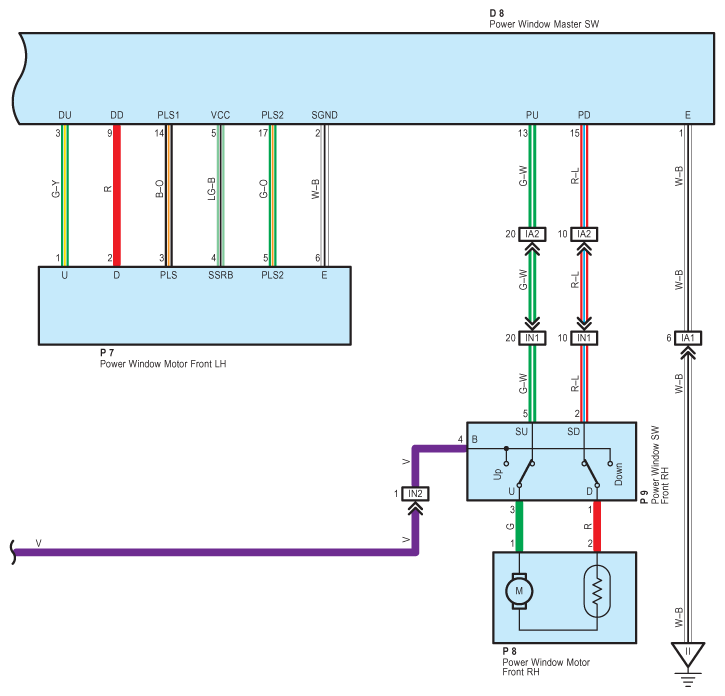

Fig 2: Power Window System Wiring Diagram & Coupe (2 Of 2)
G08787988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
