Power Outlet: Notes

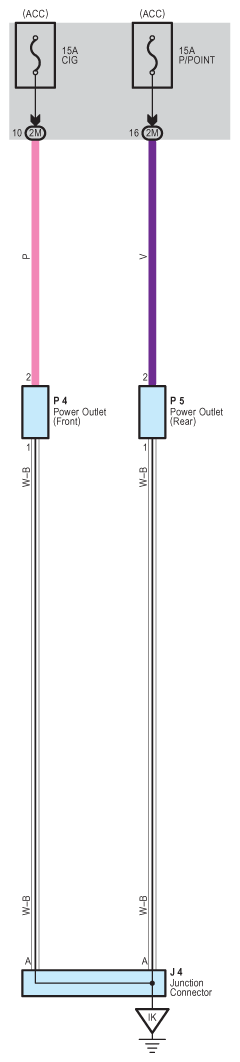

Fig 1: Power Outlet System Wiring Diagram

G08788033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
