Navigation and Audio System: Notes

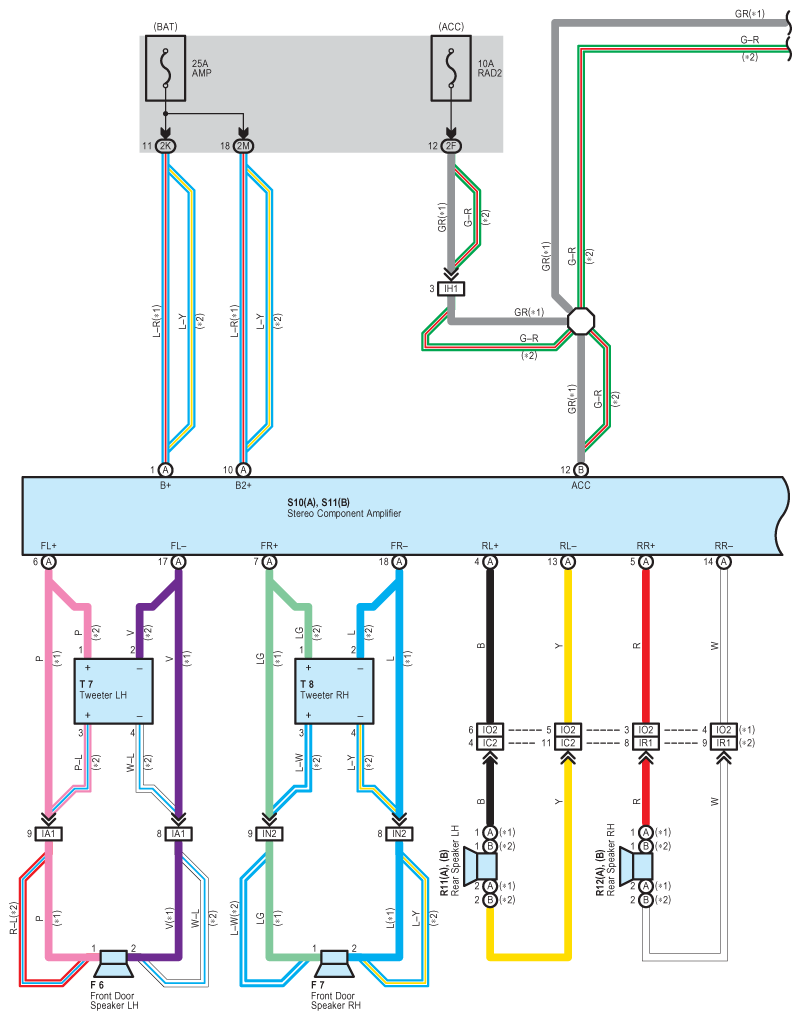

Fig 1: Navigation And Audio System Wiring Diagram (1 Of 5)
G08788040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

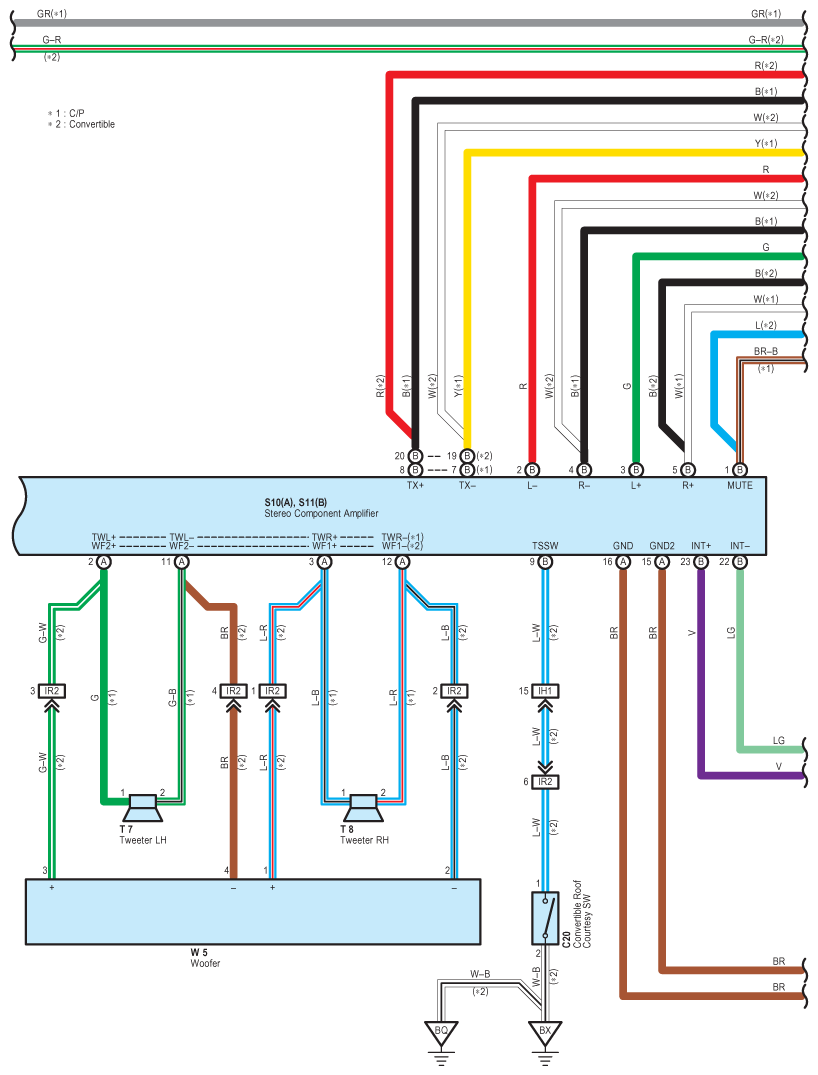

Fig 2: Navigation And Audio System Wiring Diagram (2 Of 5)
G08788041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

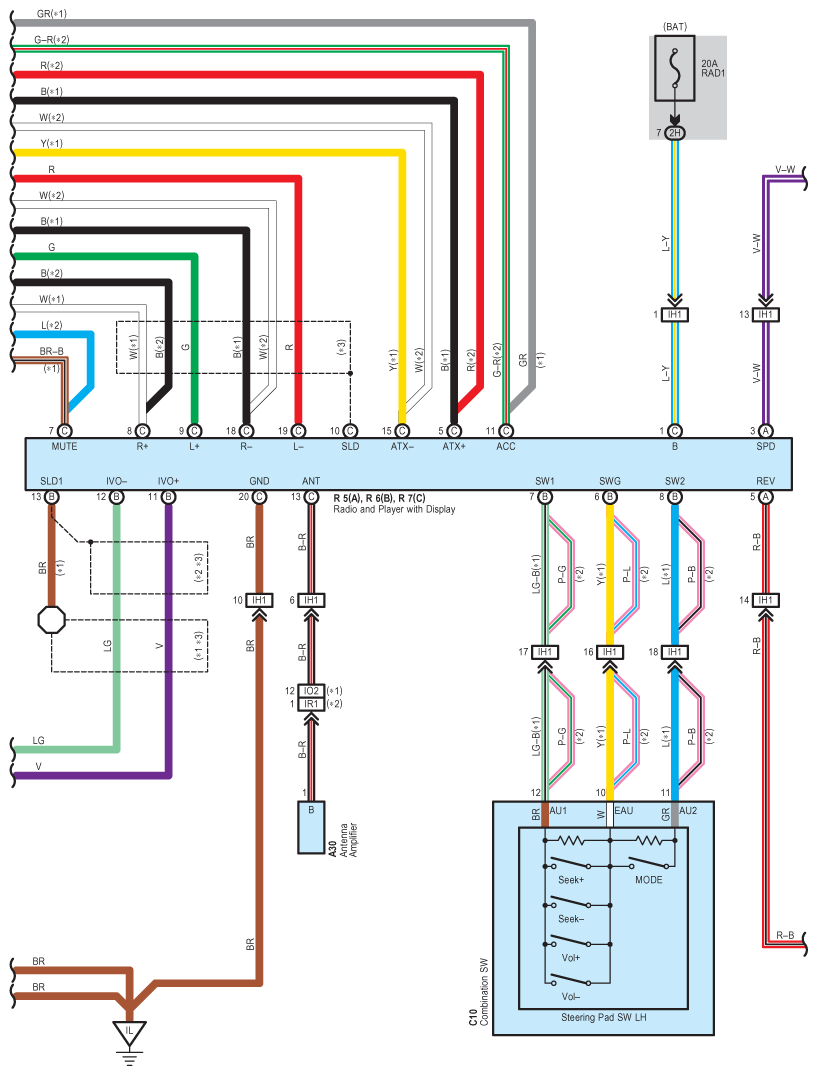

Fig 3: Navigation And Audio System Wiring Diagram (3 Of 5)
G08788042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Navigation And Audio System Wiring Diagram (4 Of 5)
G08788043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Navigation And Audio System Wiring Diagram (5 Of 5)
G08788044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
